OPERATOR’S MANUAL
Runt Mode

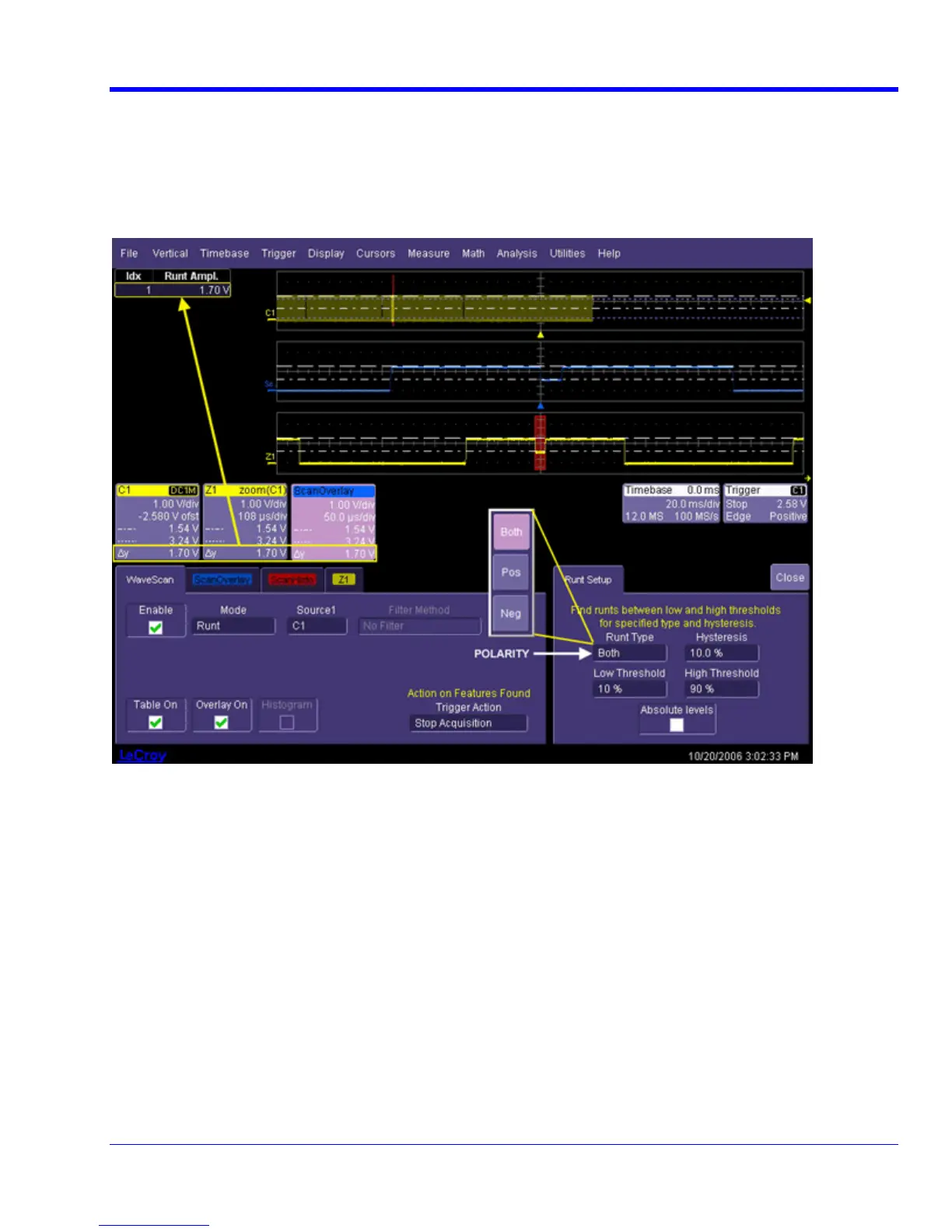

This search mode looks for pulses that fail to transit a given region. You can search for positive-going or negative-
oms out. This can be confirmed by placing cursors on
going runts, or both. An adjustable hysteresis band is provided to eliminate noise.
In the case of negative-going runt pulses, the value displayed in the table is the difference (delta) of the high level
of the signal and the runt amplitude, i.e., where the runt bott
the runt pulse and reading the delta Y value in the trace labels:
WRXi-OM-E Rev C 155
