OPERATOR’S MANUAL
4. Touch inside the Source1 field and select an input waveform from the pop-up menu.
5. Touch inside the Measure field and select a parameter from the pop-up menu.

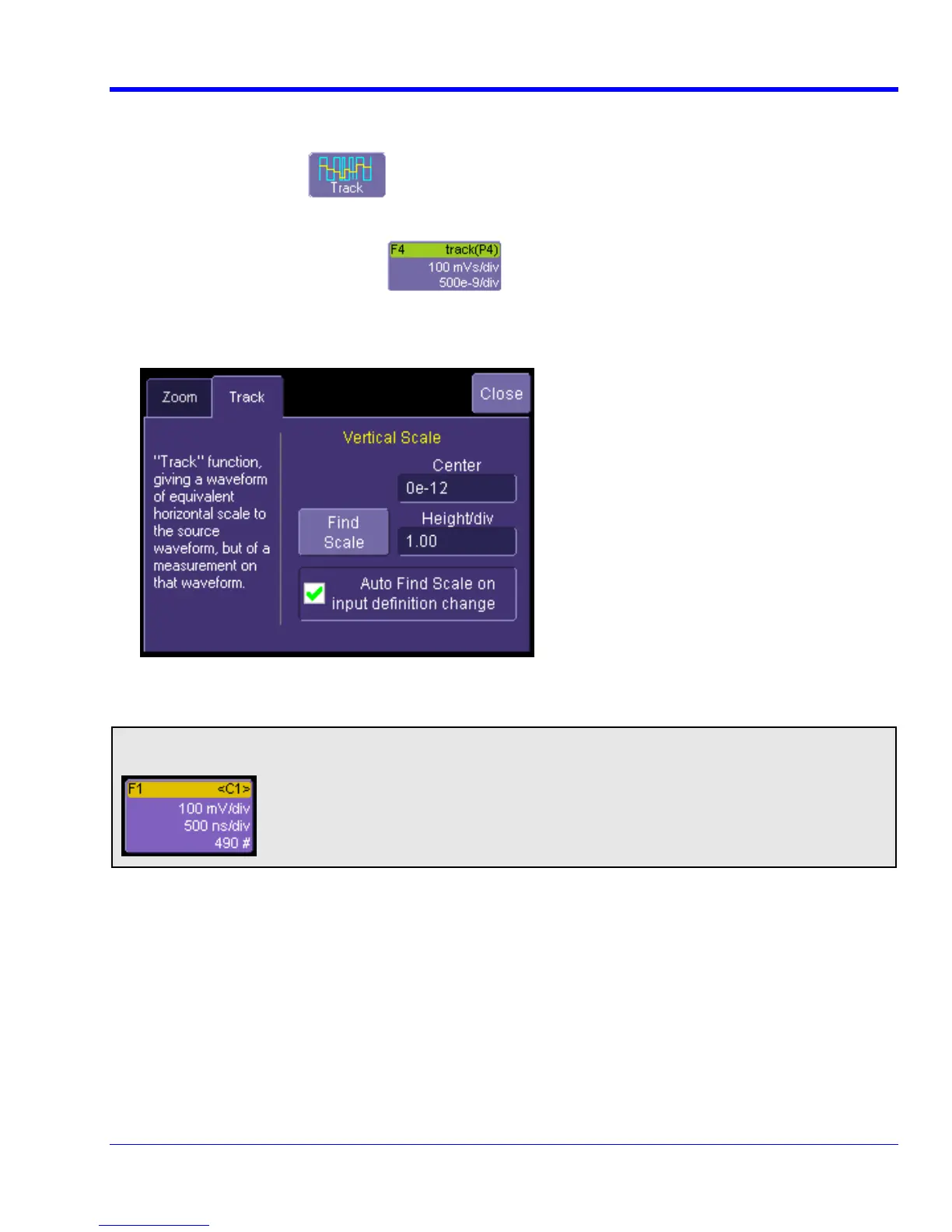

6. Touch the Track button at the bottom of the dialog; then, from the Math
menu, select a math function location (F1 to Fx The number of math traces available
selection for Track
depends on the software
See specifications.) to store the Track display. The Track will be options loaded on your oscilloscope.
WRXi-OM-E Rev C 87
displayed along with the trace label Example Track Trace Label for the math function you
splayed Track math function trace label if you want to change any settings in the Track
selected.
7. Touch the newly di
dialog:
HISTOGRAMS
Creating and Viewing a Histogram
Note: The number of sweeps comprising the histogram will be displayed in the bottom line of the trace
descriptor label:
Single Parameter Histogram Setup
FROM MEASURE DIALOG
1. In the menu bar, touch Measure, then Measure Setup.
2. Touch the My Measure button.
3. Touch one of tabs P1 through Px.
field and select an input waveform from the pop-up menu.
arameter from the pop-up menu.
ting histogram, then close the pop-up menu.
8. Touch the math trace label for the math trace you just created.
4. Touch inside the Source1
5. Touch inside the Measure field and select a p
6. Touch the Histogram button at the bottom of the dialog.
7. Touch a math trace in which to place the resul
