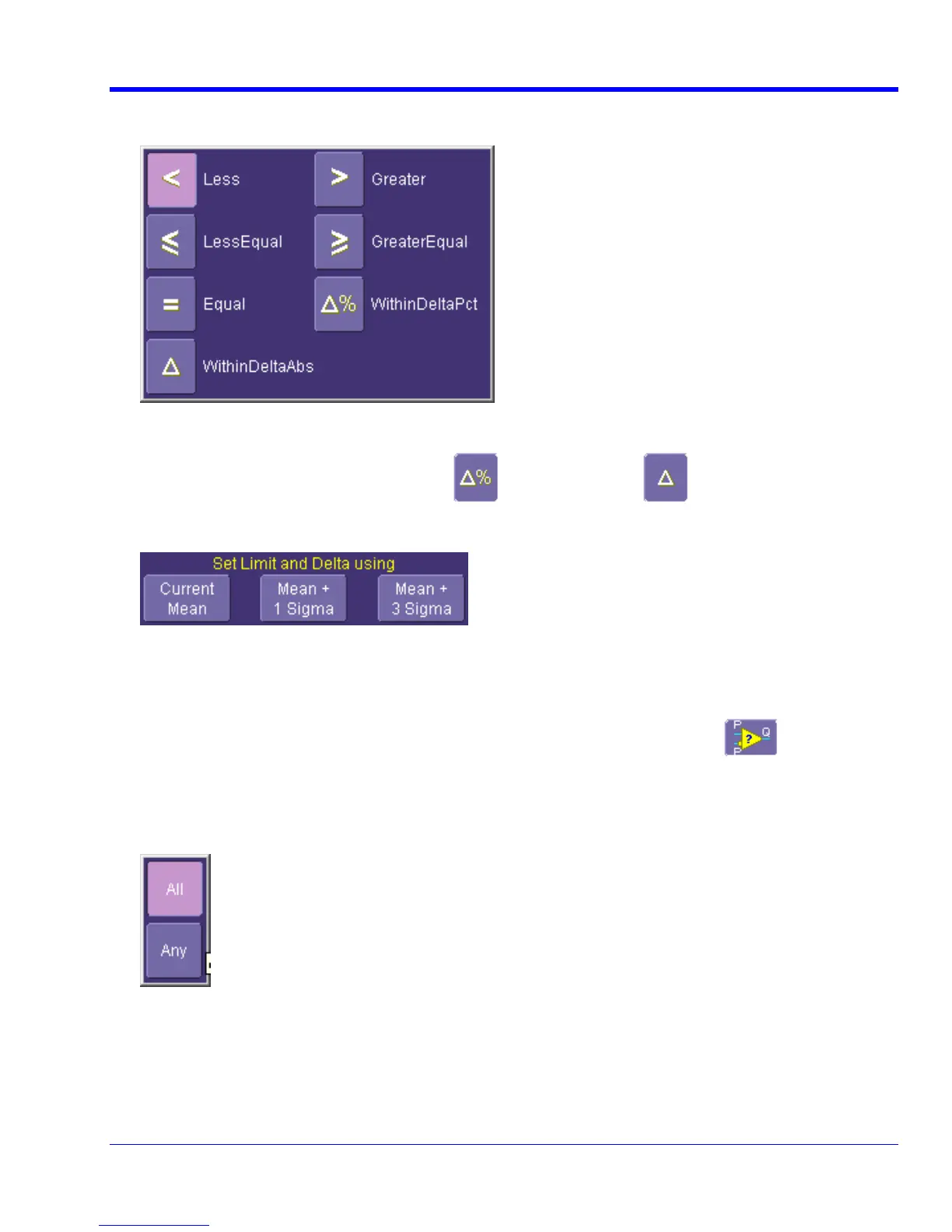

6. Touch inside the Condition field in the ParamCompare mini-dialog and select a math operator from the pop
up menu:
-
.
7. Touch inside the Limit field and enter a value, using the pop-up numeric keypad. This value takes the
dimensions of the parameter that you are testing. For example, if you are testing a time parameter, the unit is
WRXi-OM-E Rev C 145
seconds. If you chose either WithinDeltaPct
or WithinDeltaAbs from the Condition menu,
you also have the choice of setting the limit by means of the statistical buttons at the bottom of the
ParamCompare dialog:
Comparing Dual Parameters
1. Touch Analysis in the menu bar, then Pass/Fail Setup... in the drop-down menu.
2. Touch a Qx tab; a setup dialog for that position
inside the Condition field in the main dialog and select DualParamCompare
will open.
3. Touch
4. Touch inside the Source1 and Source2 fields and select a source from the pop-up menu.
ompare mini-dialog field and select a source from the pop-up menu.
Compare Values field and select All or Any from the pop-up menu:
5. Touch inside the ParamC
6. Touch inside the
By selecting , the test will be true only if every waveform falls All within the limit that you will set. By selecting
Any, the test will be st one waveform falls w it. true if ju ithin the lim
