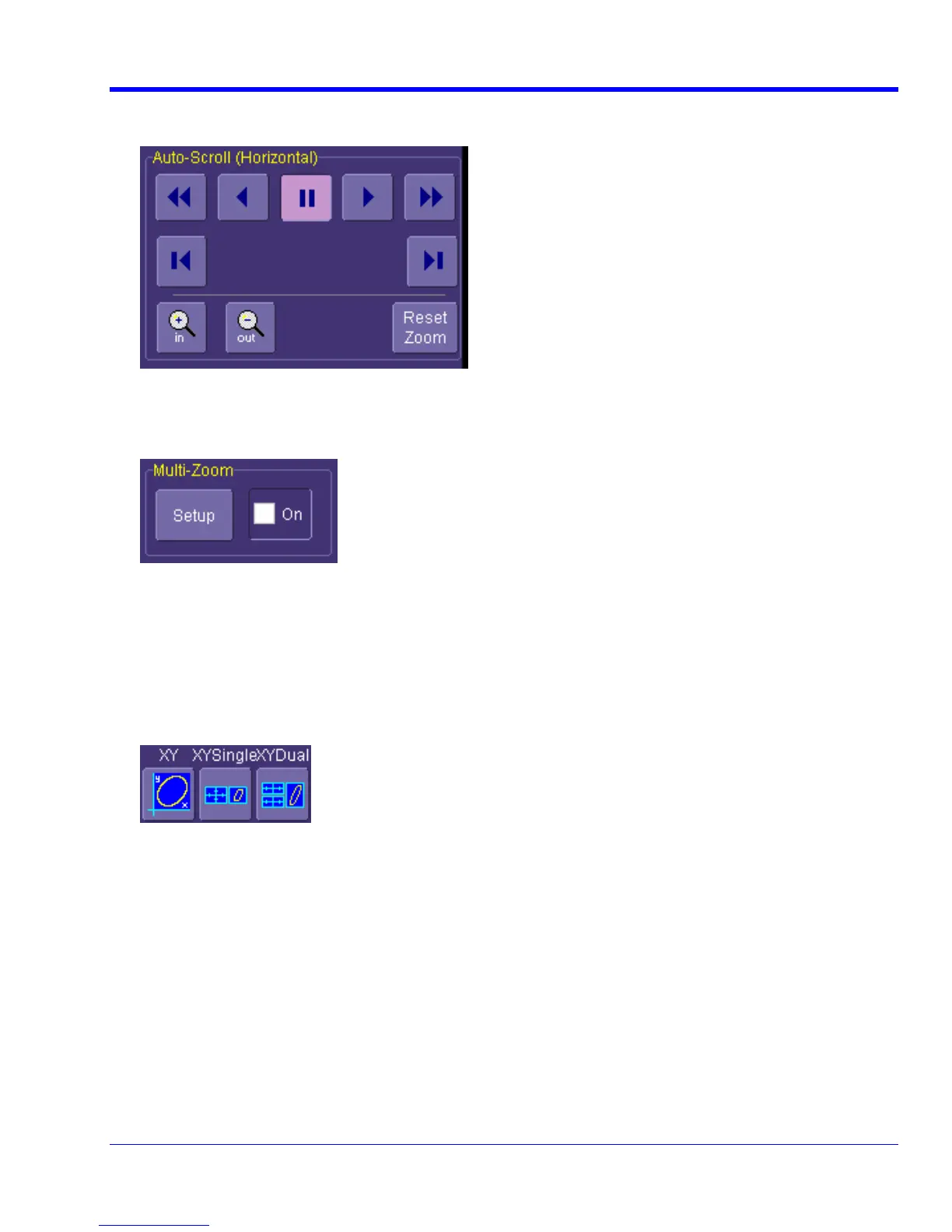

6. Use of the Multi-Zoom dialog to control the zoomed section of your the Auto-Scroll buttons at the right
waveforms:
T
URNING OFF MULTI-ZOOM
1. In the menu bar, touch Math, then Math Setup... in the drop-down menu.
2. Touch the Multi-Zoom On checkbox to turn off Multi-zoom:
XY Display
Use XY displays to measure the phase shift between otherwise identical signals. You can display either voltage
2. Choose an XY display by touching one of the XY display mode buttons:
on both axes or frequency on both axes. The traces must have the same X-axis. The shape of the resulting
pattern reveals information about phase difference and frequency ratio.
XY
DISPLAY SETUP
1. In the menu bar, touch Display; then touch Display Setup... in the drop-down menu.
3. You have the choice of showing the two waveforms on just the XY grid, or you can also show the input
waveforms on a single or dual grid.
4. Touch inside the Input X and Input Y fields and select your input sources from the pop-up menus. The
inputs can be any combination of channels, math functions, and memory locations.
SAVE AND RECALL
Saving and Recalling Oscilloscope Settings
You can save or recall oscilloscope settings to or from hard disk, floppy disk, or LAN location.
