on of Excel, as follows: This example used the CORREL (Array1, Array2) functi
Multiple Traces on One Grid (Excel Example 4)
This example shows how you can place multiple traces in one picture, with only two operations in an Excel sheet.

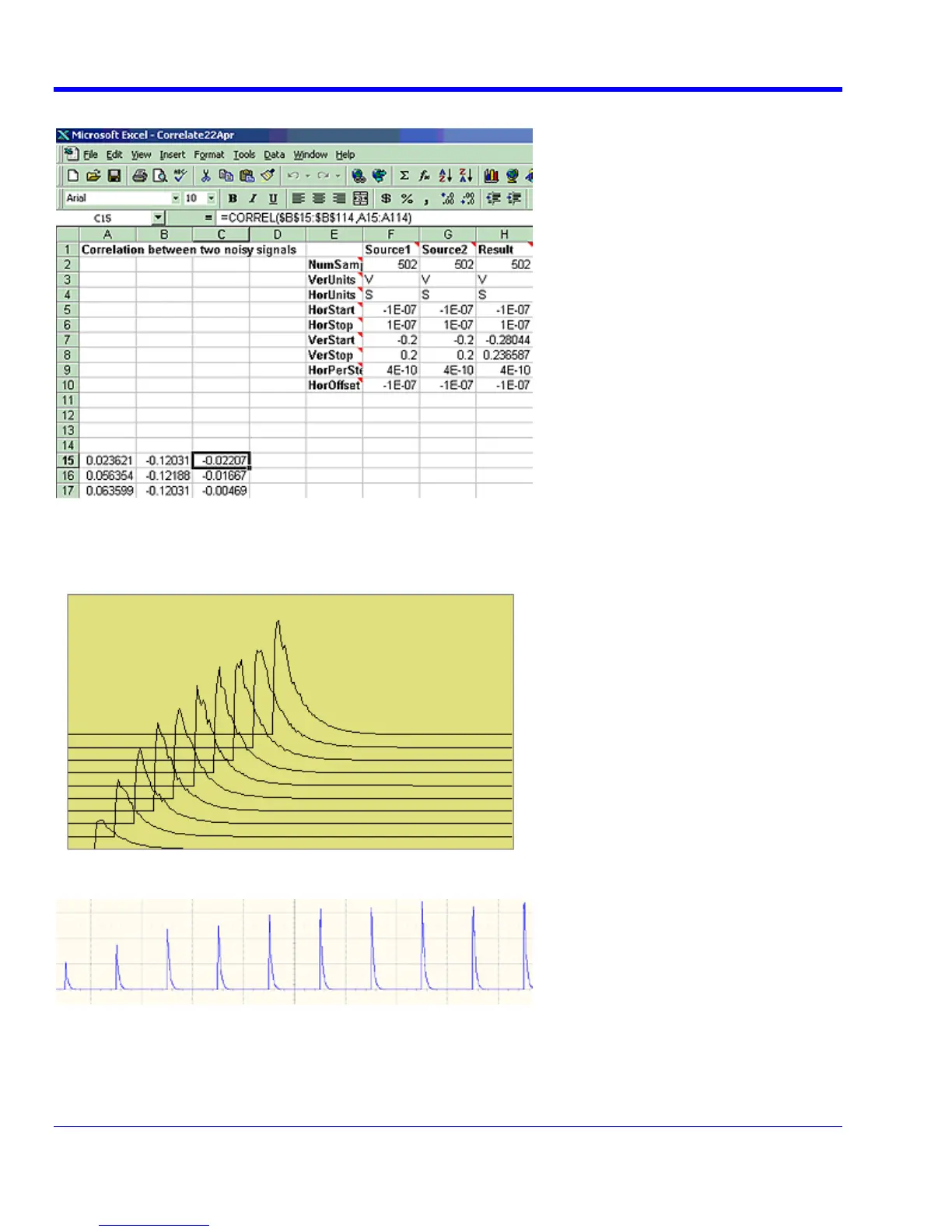

Depicted below is an example from an Excel spreadsheet.
Here is an original instrument trace.
The method is very simple. First, the waveform is transferred to an Excel spreadsheet by means of an instrument
Excel call. Second, two operations are needed in Excel: placing a simple formula in one cell, and copying that
formula into a range of cells.
