Measurement Mode
meter measurements on it.
acquisition:
This search and scan mode lets you apply filters to your acquisitions to highlight only the features of interest.
Post-acquisition, you can apply other filters to the acquisition, or make different para

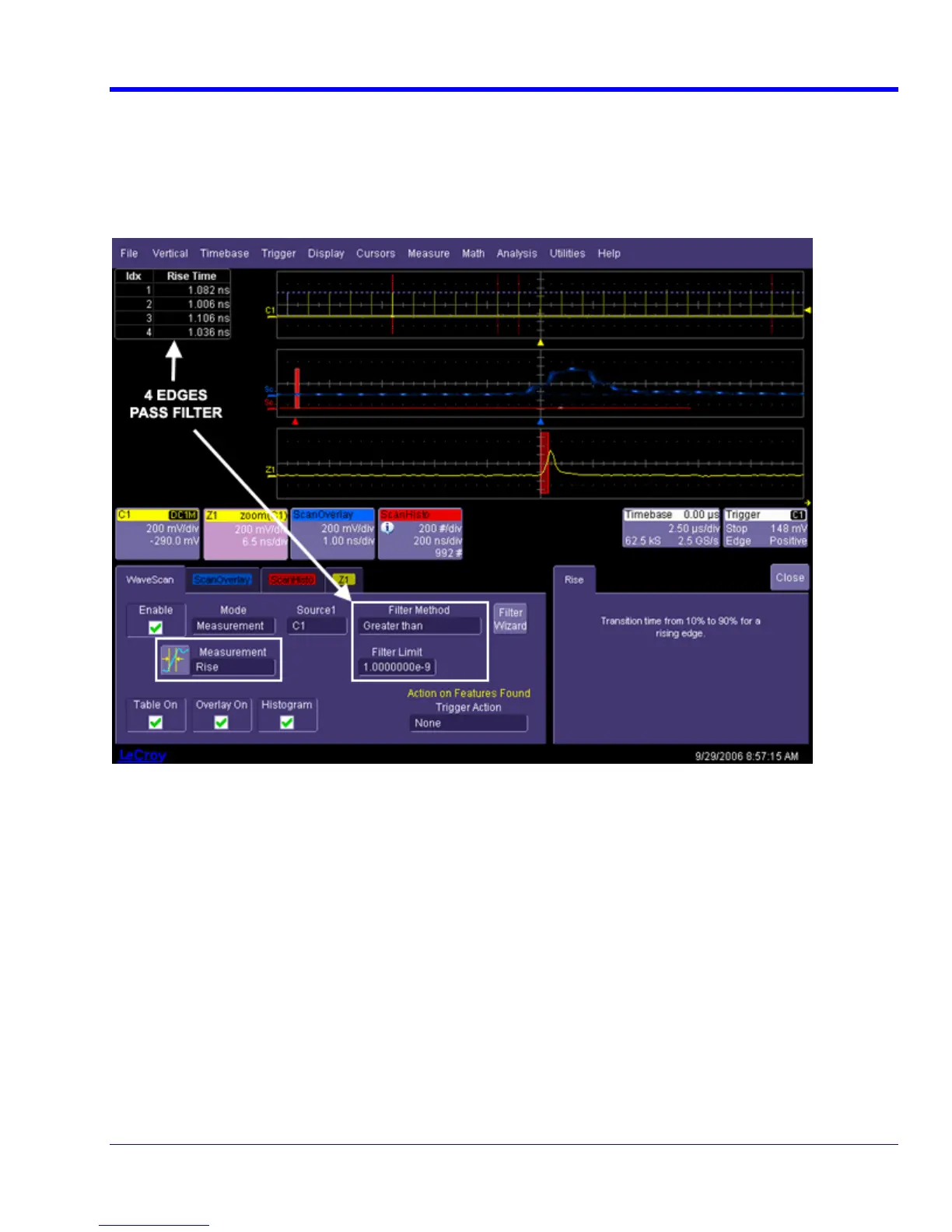

For example, in this acquisition a Rise time (10-90%) parameter measurement is applied to fast edges during
acquisition. We are interested only in edges with a rise time slower than 1 ns. Therefore, the Greater Than filter
method is selected, with a value of 1 ns; four edges pass during
