OPERATOR’S MANUAL
Trace Descriptors

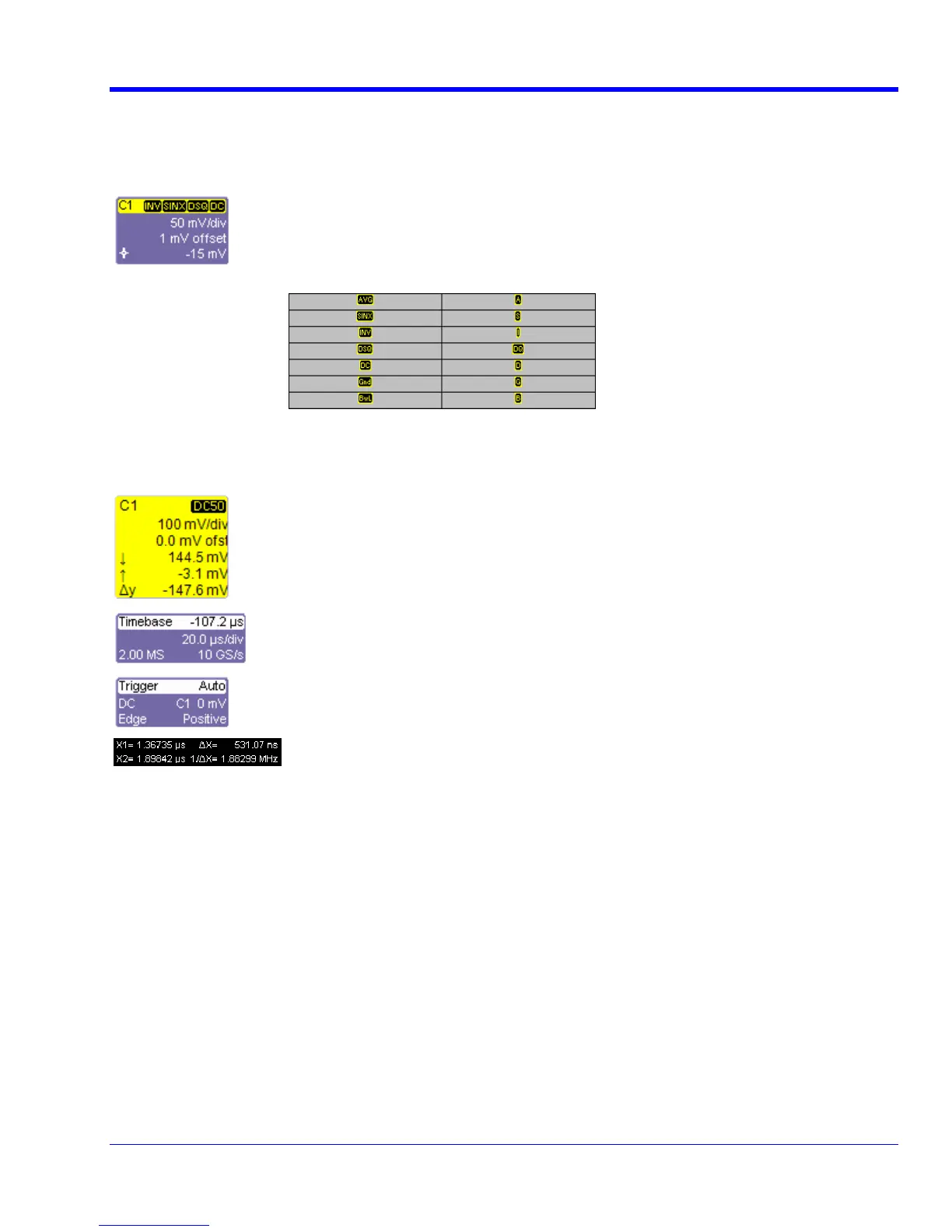

Vertical and horizontal trace descriptor labels are displayed below the grid. They provide a summary of your
channel, timebase, and trigger settings. To make adjustments to these settings, touch the respective label to
display the setup dialog for that function.
Channel trace labels show the vertical settings for the trace, as well as cursor
information if cursors are in use. In the title bar of the label are also included indicators
for (SinX)/X interpolation, waveform inversion (INV), deskew (DSQ), coupling,
bandwidth limiting (BWL), and averaging (AVG). These indicators have a long and short
form:
Besides channel traces, math and memory trace labels are also displayed. Labels are
displayed only for traces that are turned on.
As a visual aid, an active channel (i.e., the one whose settings can be adjusted by the
front panel knobs) is displayed in solid color.
The title bar of the TimeBase label shows the trigger delay setting. Time per division
and sampling information is given below the title bar.
The title bar of the Trigger label shows the trigger mode: Auto, Normal, or Stopped.
Below the title bar is given the coupling (DC), trigger type (Edge), source (C1), level (0
mV), and slope (Positive).
Shown below the Timebase and Trigger labels is value information for horizontal
cursors, including the time between cursors and the frequency.
WRXi-OM-E Rev C 37
