OPERATOR’S MANUAL
Trace Annotation

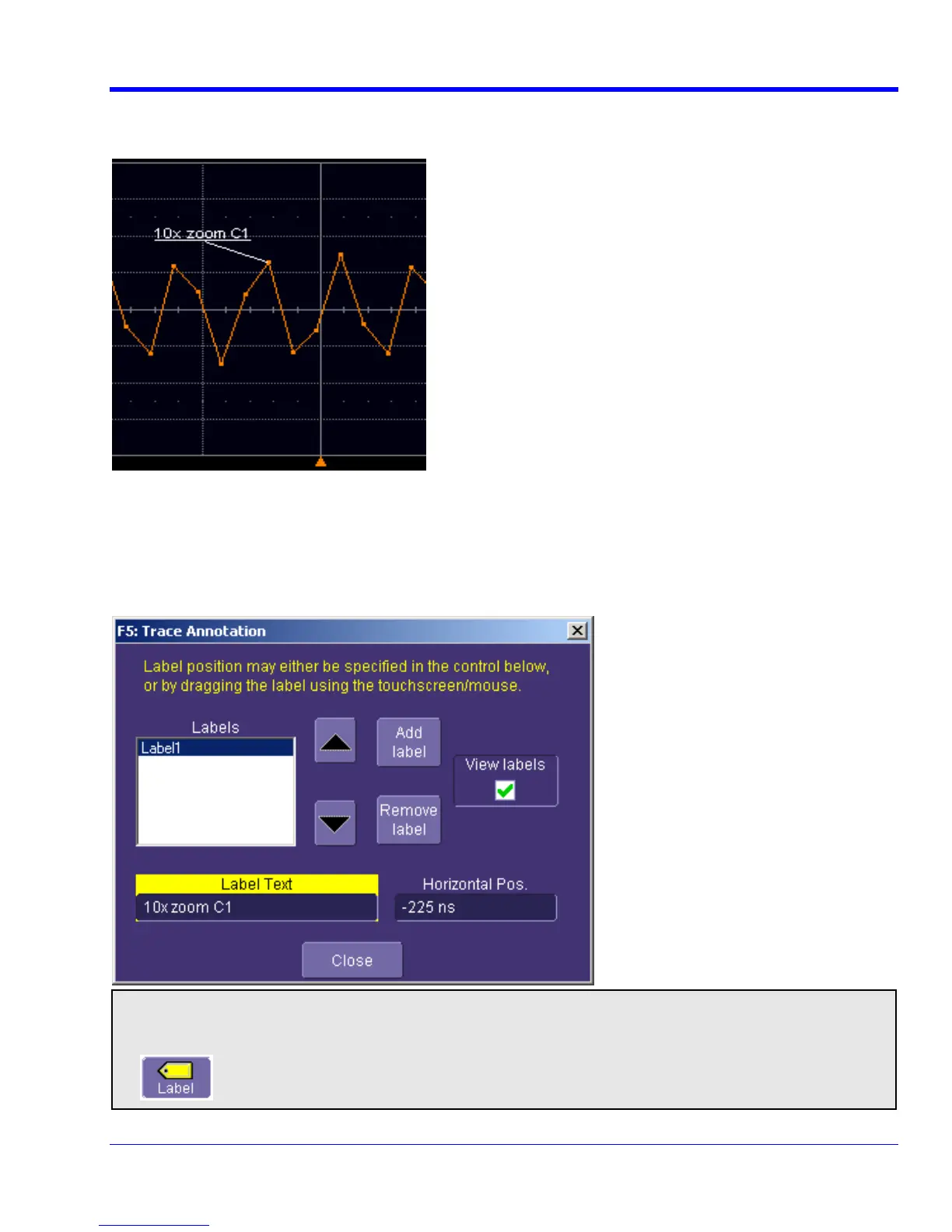

The instrument gives you the ability to add an identifying label, bearing your own text, to a waveform display:
For each waveform, you can create multiple labels and turn them all on or all off. Also, you can position them on
the waveform by dragging or by specifying an exact horizontal position.
To Annotate a Waveform
Touch the waveform you want to annotate, then Set label... in the pop-up menu. A dialog box opens in which to
create the label. If you are creating a label for the first time for this waveform, Label1 is displayed with default
text. If you are modifying an existing label, under Labels touch the label you want to change.
PLEASE NOTE THE FOLLOWING:
• If the dialog for the trace you want to annotate is currently displayed, you can touch the label button at the
bottom to display the Trace Annotation setup dialog.
WRXi-OM-E Rev C 39
