8400 StateLine C | Reference manual
Motor control (MCTRL)
V/f characteristic control - energy-saving (VFCplusEco)
146 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011

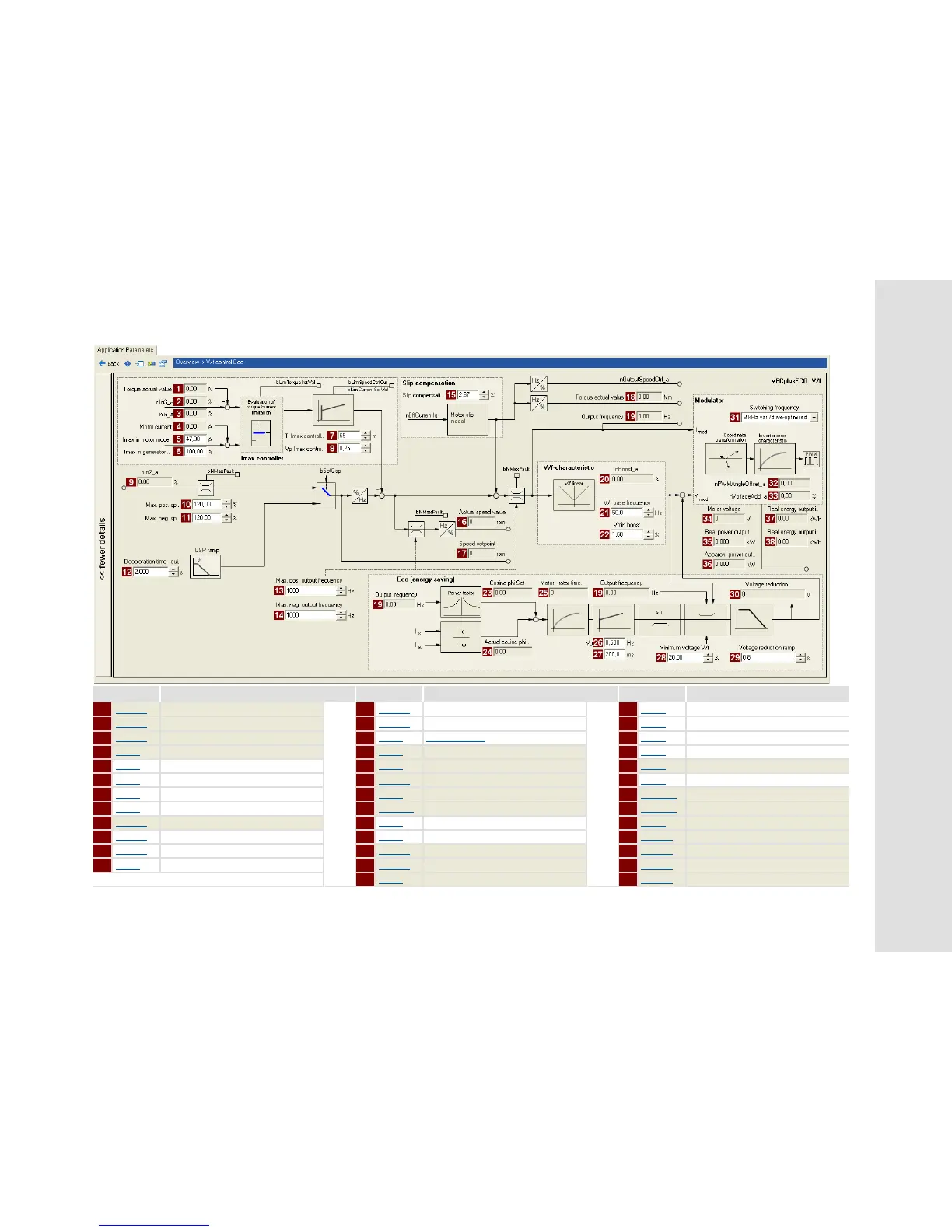

Parameter Info Parameter Info Parameter Info
1 C00056/2 Actual torque value 13 C00910/1 Max. pos. output frequency 26 C00975 VFC-ECO: Vp
2 C00830/4 Limitation of torque in motor mode 14 C00910/2 Max. neg. output frequency 27 C00976 VFC-ECO: Ti
3 C00830/5 Limitation of torque in generator mode 15 C00021 Slip compensation 28 C00977 VFC-ECO: Minimum voltage V/f
4 C00054 Motor current 16 C00051 Actual speed value 29 C00982 VFC-ECO: Voltage reduction ramp
5 C00022 Imax in motor mode 17 C00050 Speed setpoint 30 C00978 VFC-ECO: Voltage reduction
6 C00023 Imax in generator mode 18 C00056/2 Actual torque value 31 C00018 Switching frequency
7 C00074 Ti Imax controller 19 C00058 Output frequency 32 C00830/32 MCTRL: nPWMAngleOffset_a
8 C00073 Vp Imax controller 20 C00830/26 MCTRL: nBoost_a 33 C00830/31 MCTRL: nVoltageAdd_a
9 C00830/3 Speed setpoint 21 C00015 V/f base frequency 34 C00052 Motor voltage
10 C00909/1 Max. pos. speed 22 C00016 Vmin boost 35 C00980/1 Active output power
11 C00909/2 Max. neg. speed 23 C00979/2 Cosine phi set 36 C00980/2 Apparent output power
12 C00105 Decel. time - quick stop 24 C00979/1 Cosine phi act 37 C00981/1 Output energy in motor mode
25 C00083 Motor rotor time constant 38 C00981/2 Output energy in generator mode
To Next Page
