8400 StateLine C | Reference manual
Commissioning
Commissioning of the "Actuating drive speed" technology application
3.6.4 Parameterising the application

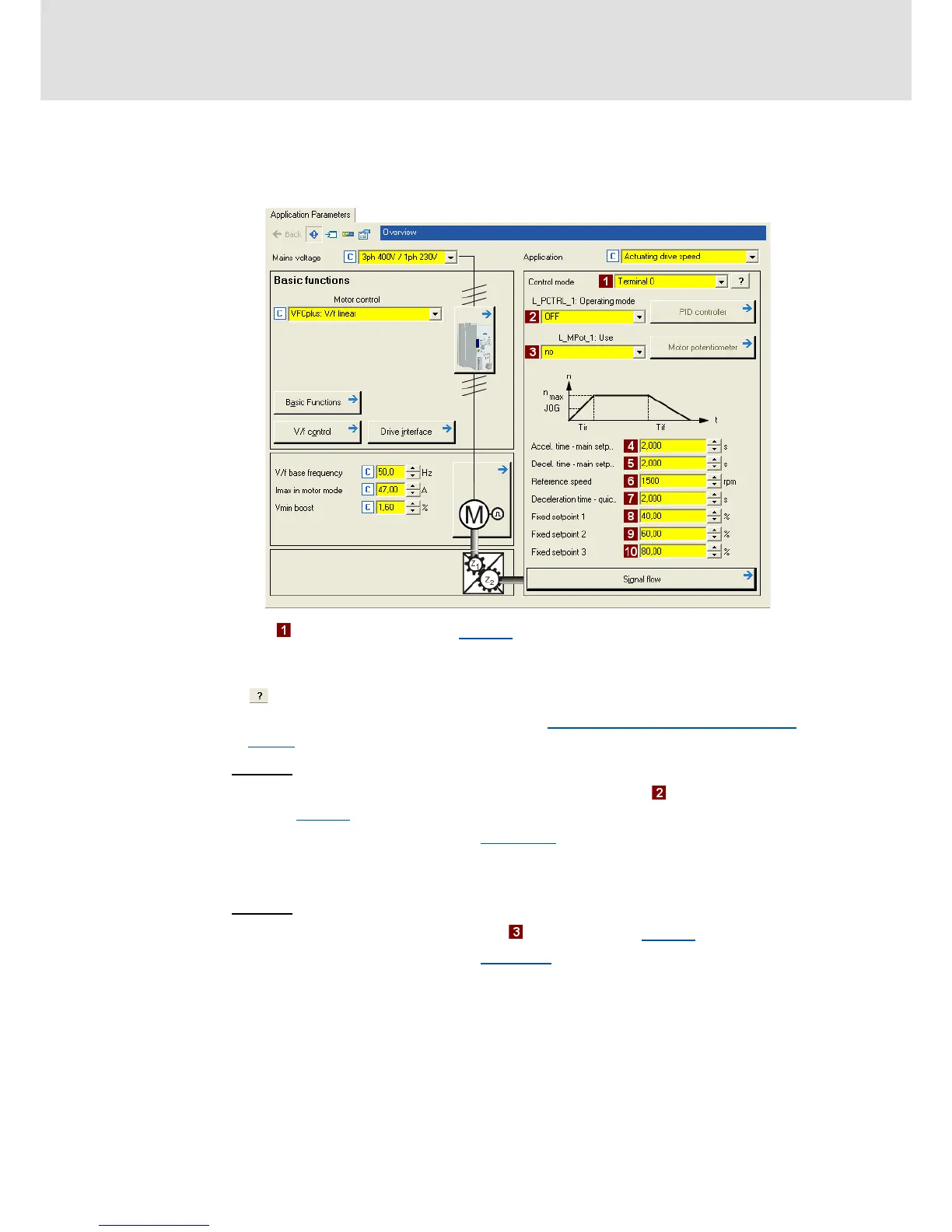

The application parameters can be found on the right side of the Application parameter
tab:
1. In the Control mode list field (C00007
), select the control mode suitable for the
wiring of the terminals.
– The corresponding wiring diagram is displayed in a pop-up window if you click the
button right to the list field.
– For a detailed description, see the chapter "Terminal assignment of the control
modes". ( 302)
2. Optional
: Use a process controller.
– For this purpose, select the desired operating mode in the L_PCTRL_1: Operating
mode (C00242
) list field.
– For a detailed description see the L_PCTRL_1
function block. ( 837)
– Go to the parameterisation dialog of the process controller via the Process controller
button.
3. Optional
: Use a motor potentiometer.
– For this purpose, select "1: On" in the L_MPot_1: Use (C00806
) list field.
– For a detailed description see the L_MPot_1
function block. ( 809)
– Go to the parameterisation dialog of the motor potentiometer via the Motor
potentiometer button.
