Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011 L 431
8400 StateLine C | Reference manual
System bus "CAN on board"
Possible settings via DIP switch
10.2 Possible settings via DIP switch

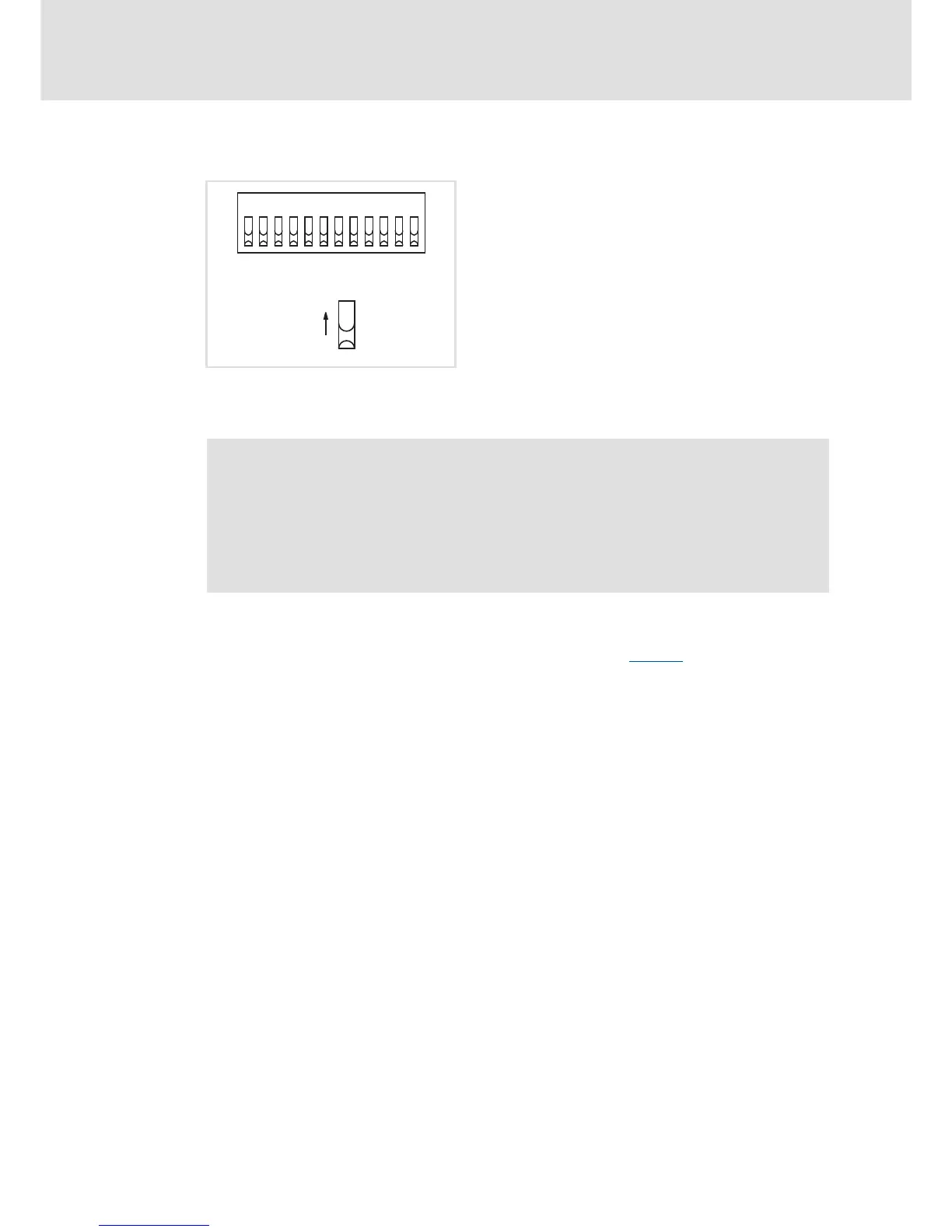

[10-1] DIP switch
Lenze setting: All DIP switches are in the "OFF" position
Tip!
The current DIP switch settings are displayed in code C00349
.
Bit 15 indicates that the setting of the DIP switches has been accepted when the
device or the 24V supply has been switched on.
10.2.1 Activating the bus terminating resistor
The CAN bus must be terminated between CAN low and CAN high at the first and last
physical node each by a resistor (120 Ω). The 8400 controller is provided with an integrated
bus terminating resistor, which can be activated via the unlabelled DIP switch.
DIP switch position ("R"):
OFF = bus terminating resistor is inactive
ON = bus terminating resistor is active
Switch position:
The following can be set via the front panel DIP
switches:
Bus terminating resistor
Switch: "R"
Baud rate
Switch: "a" ... "d"
Node address
Switch: "1" ... "64"
Note!
• The DIP switch settings are accepted if a node address is unequal zero when
the device or the 24-V supply is switched on by the DIP address.
• If all DIP switches are OFF when the device or the 24 V supply is switched on,
the setting of the baud rate and node address are read out of the parameter
set/parameter.
