Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011 L 837
8400 StateLine C | Reference manual
Function library
Function blocks | L_PCTRL_1

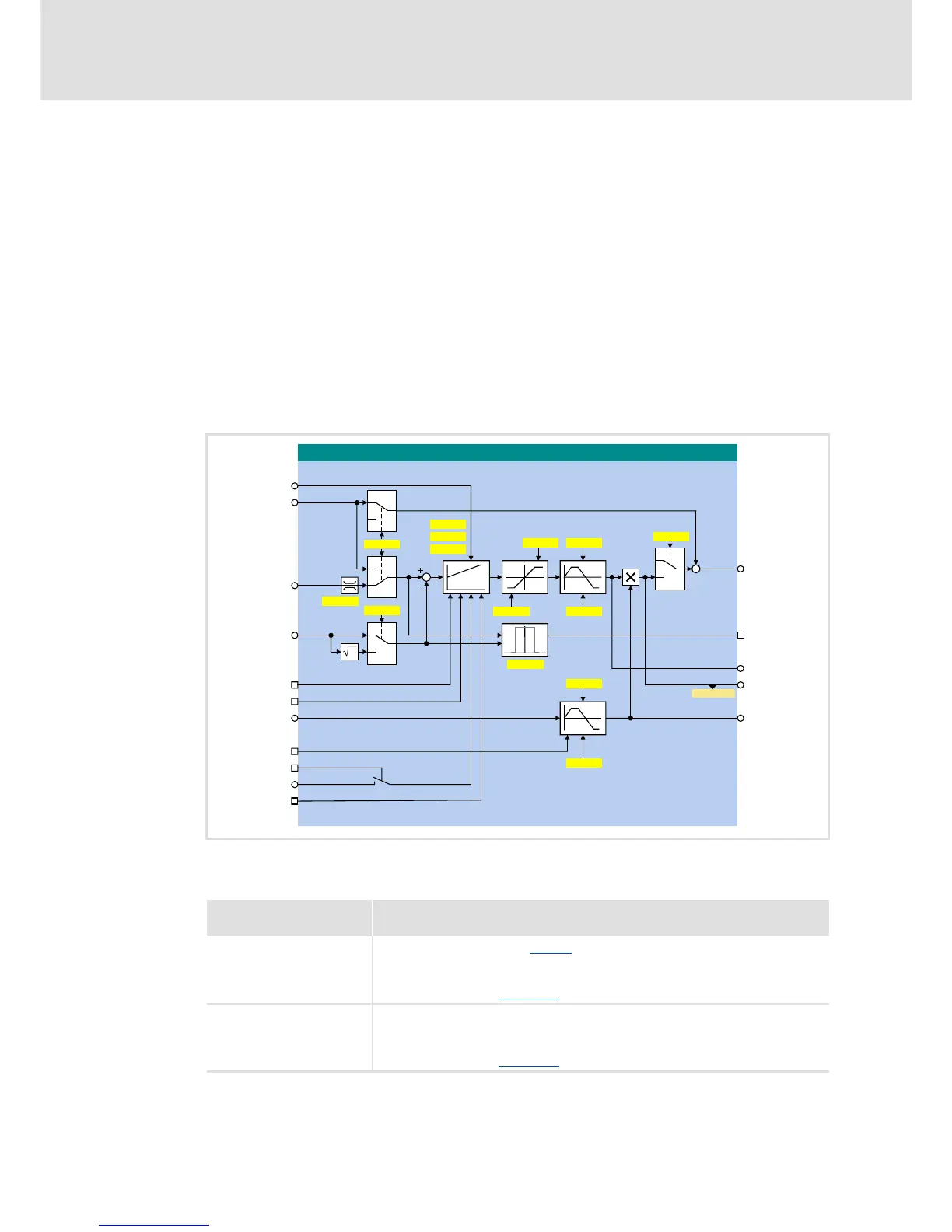

16.1.39 L_PCTRL_1
This FB is a PID controller and can be used for various control tasks (e.g. as dancer position
controller, tension controller, or pressure controller).
The FB is provided with the following functions:
Adjustable control algorithm (P, PI, PID)
Ramp function generator for preventing setpoint step-changes at the input
Limitation of the controller output
Factorisation of the output signal
Vp adaptation
Integral action component can be switched off
Comparison function "Actual value = setpoint"
Inputs
Identifier
Data type
Information/possible settings
nAdapt_a
INT
Adaptation of gain Vp set in C00222 in percent
• Internal limitation to ± 199.99 %
• Changes can be done online.
• Display parameter: C00830/62
nNset_a
INT
Speed setpoint
• Scaling: 16384 ≡ 100 %
• Internal limitation to ± 199.99 %
• Display parameter: C00830/89
