8400 StateLine C | Reference manual
Technology applications
TA "Switch-off positioning"

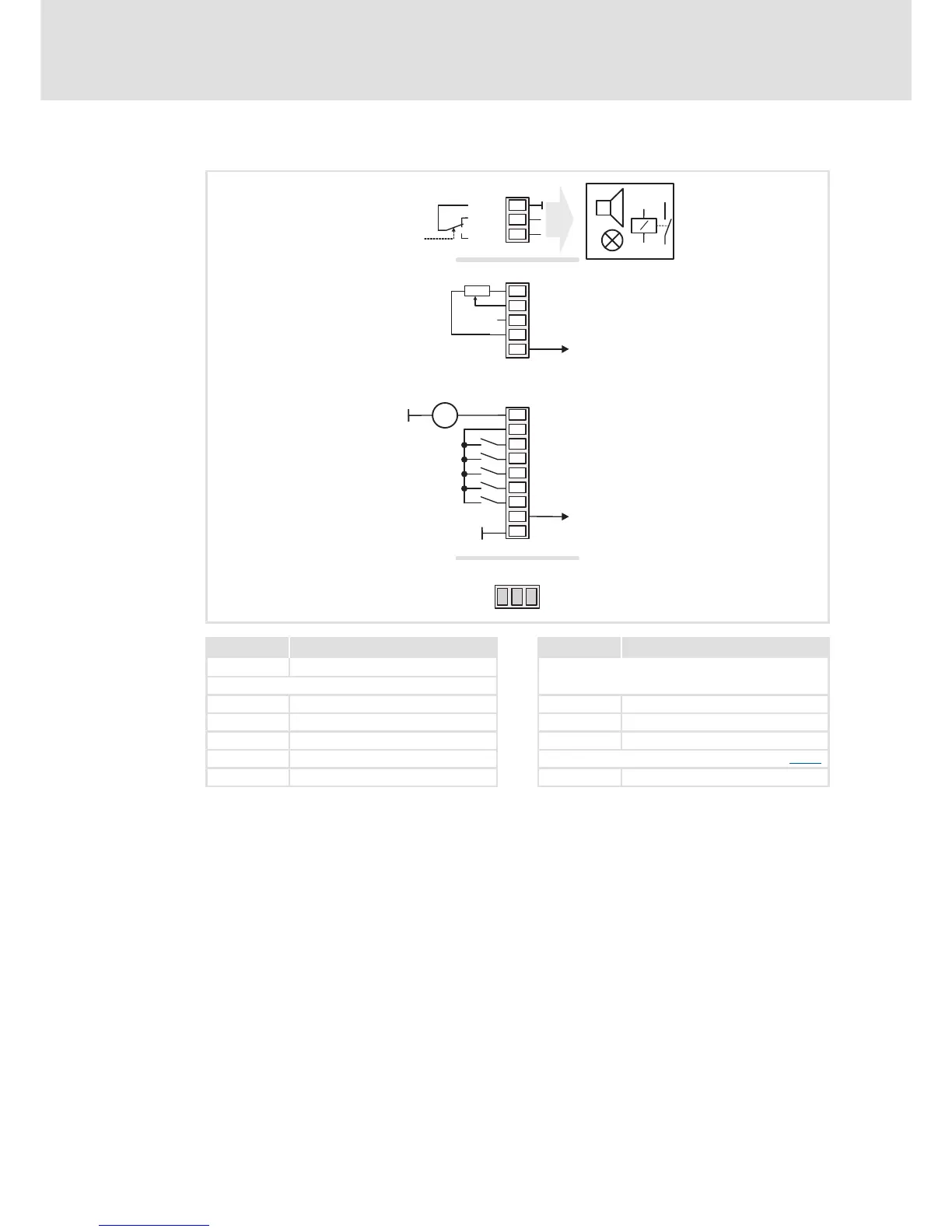

7.3.3.4 Terminal 16
Connection Assignment Connection Assignment
X101/NC-NO LA_SwitchPos.bDriveFail
X4/RFR LA_SwitchPos: bFailReset X3/A1U LA_SwitchPos.nMainSetValue_a *
X4/DI1 LA_SwitchPos: bJogCtrlJog1 X3/A1I -
X4/DI2 LA_SwitchPos: bJogCtrlJog2 X3/O1U -
X4/DI3 LA_SwitchPos: bRLQCw * 10 V ≡ 100 % reference speed (C00011
)
X4/DI4 LA_SwitchPos: bRLQCcw X4/DO1 LA_SwitchPos.bDriveReady
+
=
X4
DI3
DI2
DI4
GIO
24I
DI1
RFR
24E
+
X3
AR
A1U
GA
A1I
DO1
O1U
COM
NC
NO
X101
CG
CL
CH
X1
Fixed setpoint 1/3
Fixed setpoint 2/3
CCW rotation quick stop
CW rotation quick stop
External
supply
24 V DC
Speed setpoint
Controller enable / reset error
