8400 StateLine C | Reference manual
Motor control (MCTRL)

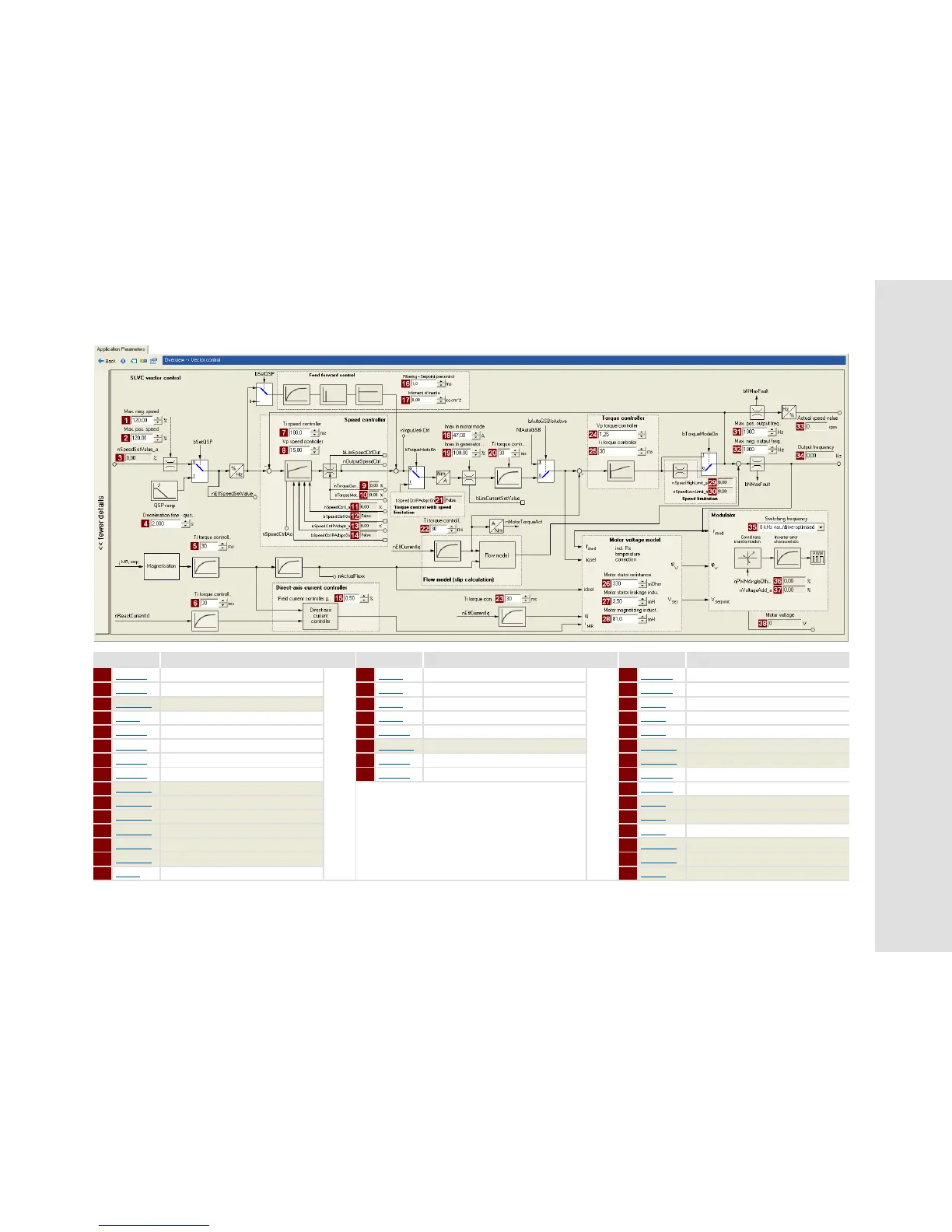

Sensorless vector control (SLVC)
162 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011
Parameter Info Parameter Info Parameter Info
1 C00909/2 Max. neg. speed 16 C00275 Setpoint feedforward control filtering 24 C00073/2 SLVC: Vp torque controller
2 C00909/1 Max. pos. speed 17 C00273 Moment of inertia 25 C00074/2 SLVC: Ti torque controller
3 C00830/22 Speed setpoint 18 C00022 Imax in motor mode 26 C00084 Motor stator resistance
4 C00105 Decel. time - quick stop 19 C00023 Imax in generator mode 27 C00085 Motor stator leakage inductance
5 C00074/2 SLVC: Ti torque controller 20 C00074/2 SLVC: Ti torque controller 28 C00092 Motor magnetising inductance
6 C00074/2 SLVC: Ti torque controller 21 C00833/69 MCTRL: bSpeedCtrlPAdaptOn 29 C00830/88 MCTRL: nSpeedHighLimit_a
7 C00071/1 SLVC: Ti speed controller 22 C00074/2 SLVC: Ti torque controller 30 C00830/23 MCTRL: nSpeedLowLimit_a
8 C00070/1 SLVC: Vp speed controller 23 C00074/2 SLVC: Ti torque controller 31 C00910/1 Max. pos. output frequency
9 C00830/28 Limitation of torque in generator mode 32 C00910/2 Max. neg. output frequency
10 C00830/29 Limitation of torque in motor mode 33 C00051 Actual speed value
11 C00830/24 MCTRL: nSpeedCtrlI_a 34 C00058 Output frequency
12 C00833/31 MCTRL: bSpeedCtrlIOn 35 C00018 Switching frequency
13 C00830/25 MCTRL: nSpeedCtrlPAdapt_a 36 C00830/32 MCTRL: nPWMAngleOffset_a
14 C00833/69 MCTRL: bSpeedCtrlPAdaptOn 37 C00830/31 MCTRL: nVoltageAdd_a
15 C00985 SLVC: Field current controller gain 38 C00052 Motor voltage
