8400 StateLine C | Reference manual
Motor control (MCTRL)

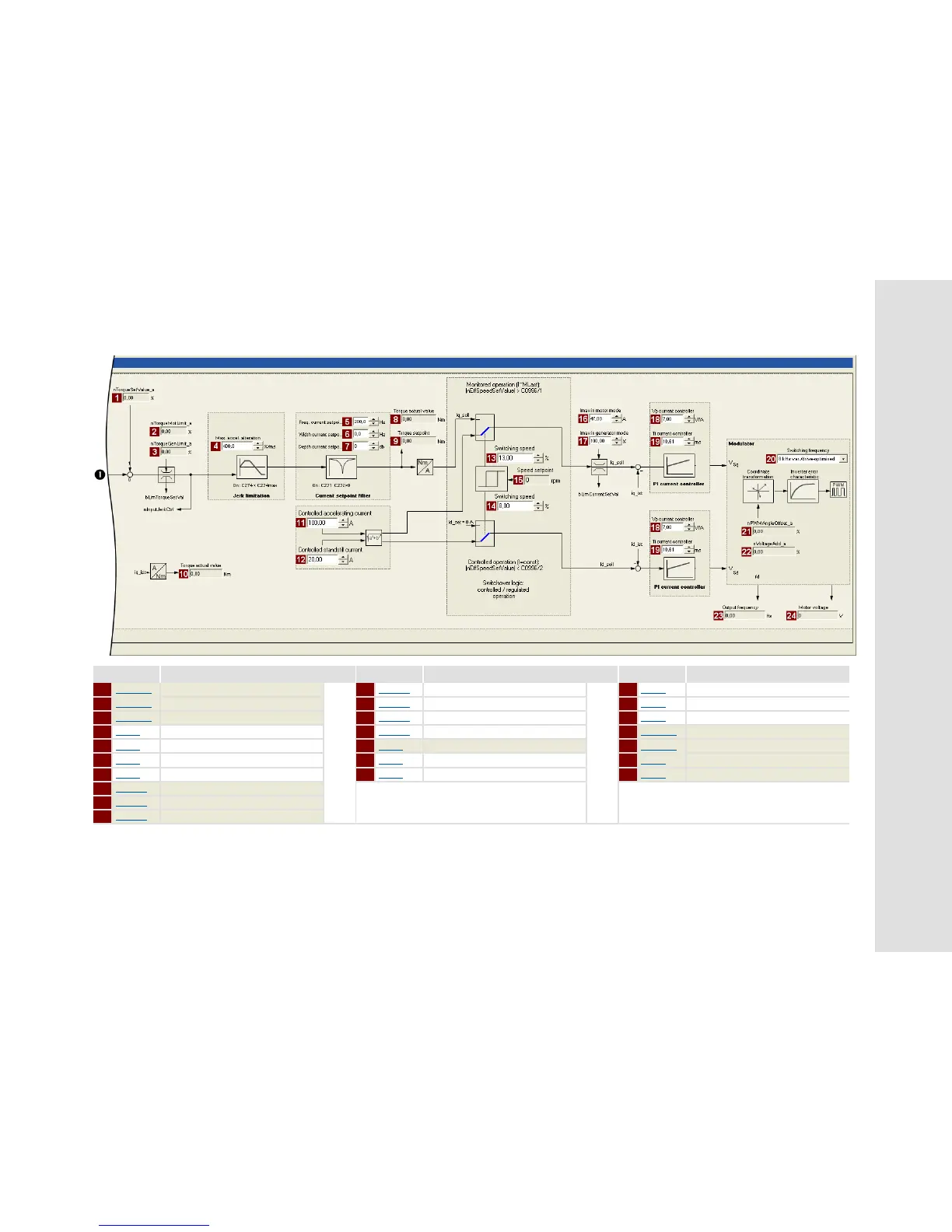

Sensorless control for synchronous motors (SLPSM)
178 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011
Parameter Info Parameter Info Parameter Info
1 C00830/27 MCTRL: nTorqueSetValue_a 11 C00995/1 SLPSM: Open-loop controlled accelerating current 18 C00075 Vp current controller
2 C00830/29 Limitation of torque in motor mode 12 C00995/2 SLPSM: Open-loop controlled standstill current 19 C00076 Ti current controller
3 C00830/28 Limitation of torque in generator mode 13 C00996/1 SLPSM: Closed-loop controlled switching speed 20 C00018 Switching frequency
4 C00274 SC: Max. change in acceleration 14 C00996/2 SLPSM: Open-loop controlled switching speed 21 C00830/32 MCTRL: nPWMAngleOffset_a
5 C00270 SC: Freq. current setpoint filter 15 C00050 Speed setpoint 22 C00830/31 MCTRL: nVoltageAdd_a
6 C00271 SC: Current setpoint filter width 16 C00022 Imax in motor mode 23 C00058 Output frequency
7 C00272 SC: Current setpoint filter depth 17 C00023 Imax in generator mode 24 C00052 Motor voltage
8 C00056/2 Actual torque value
9 C00056/1 Torque setpoint
10 C00056/2 Actual torque value
