Lenze 8400 StateLine C User Manual

8400 StateLine C | Reference manual
I/O terminals
Analog terminals
274 L Firmware ≤ 11.00 - DMS 8.0 EN - 10/2011

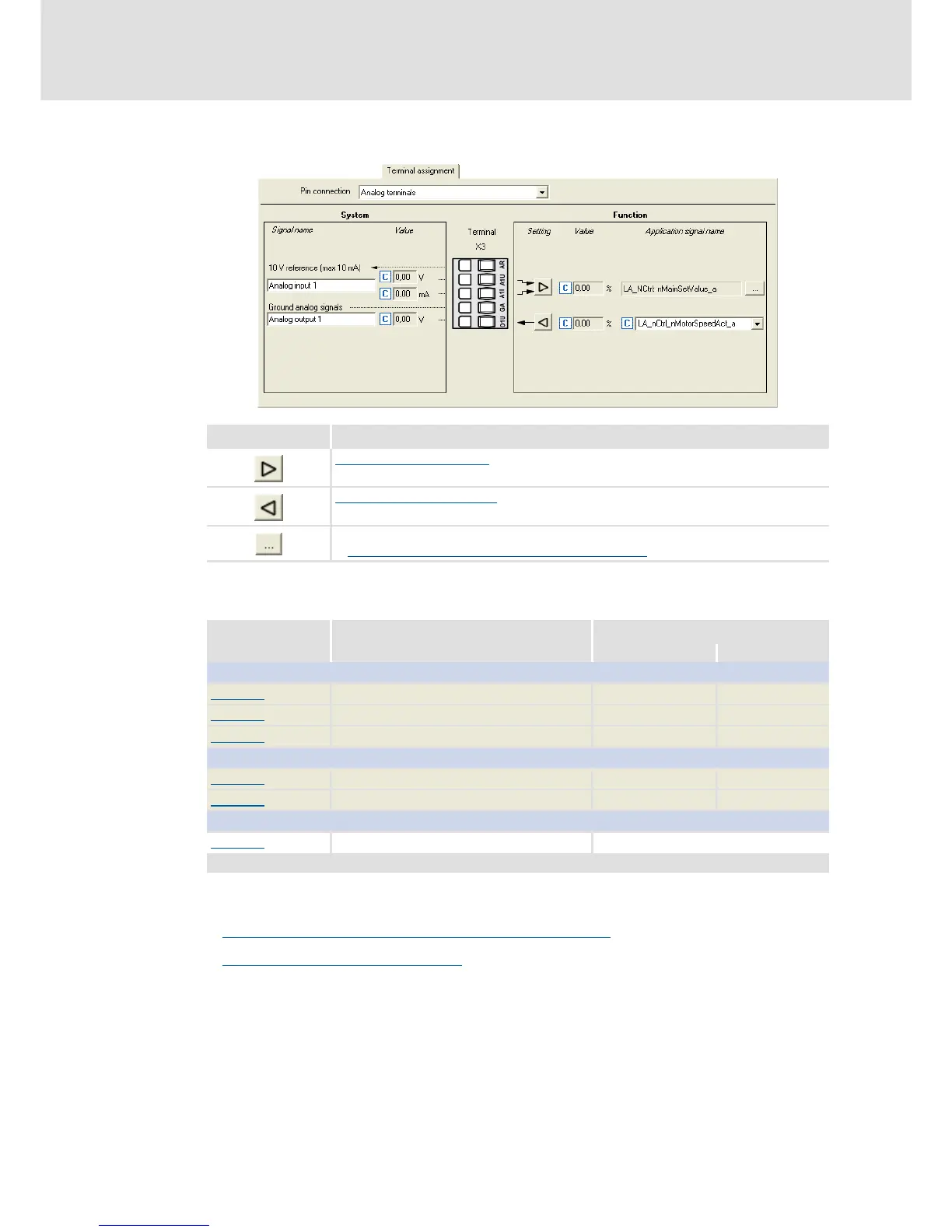

Parameterisation dialog in the »Engineer«:
Short overview of parameters for the analog terminals:
Related topics:
Configuring exception handling of the output terminals
( 281)
User-defined terminal assignment
( 282)
Button Function
Parameterising analog input
( 275)
Parameterising analog output
( 279)
Open the parameterising dialog for assigning application inputs to the analog input.
Changing the terminal assignment with the »Engineer«
( 286)
Parameter Info Lenze setting
Value Unit
Analog input 1
C00028/1 AIN1: Input voltage - V
C00029/1 AIN1: Input current - mA
C00033/1 AIN1: Output value (to application) - %
Analog output 1
C00439/1 O1U: Input value (from application) - %
C00436/1 O1U: Voltage - V
Analog output 1 - terminal assignment
C00620/1
LS_AnalogOutput: nOut1_a (V) 1003: LA_nCtrl_nMotorSpeedAct_a
Highlighted in grey = display parameter
