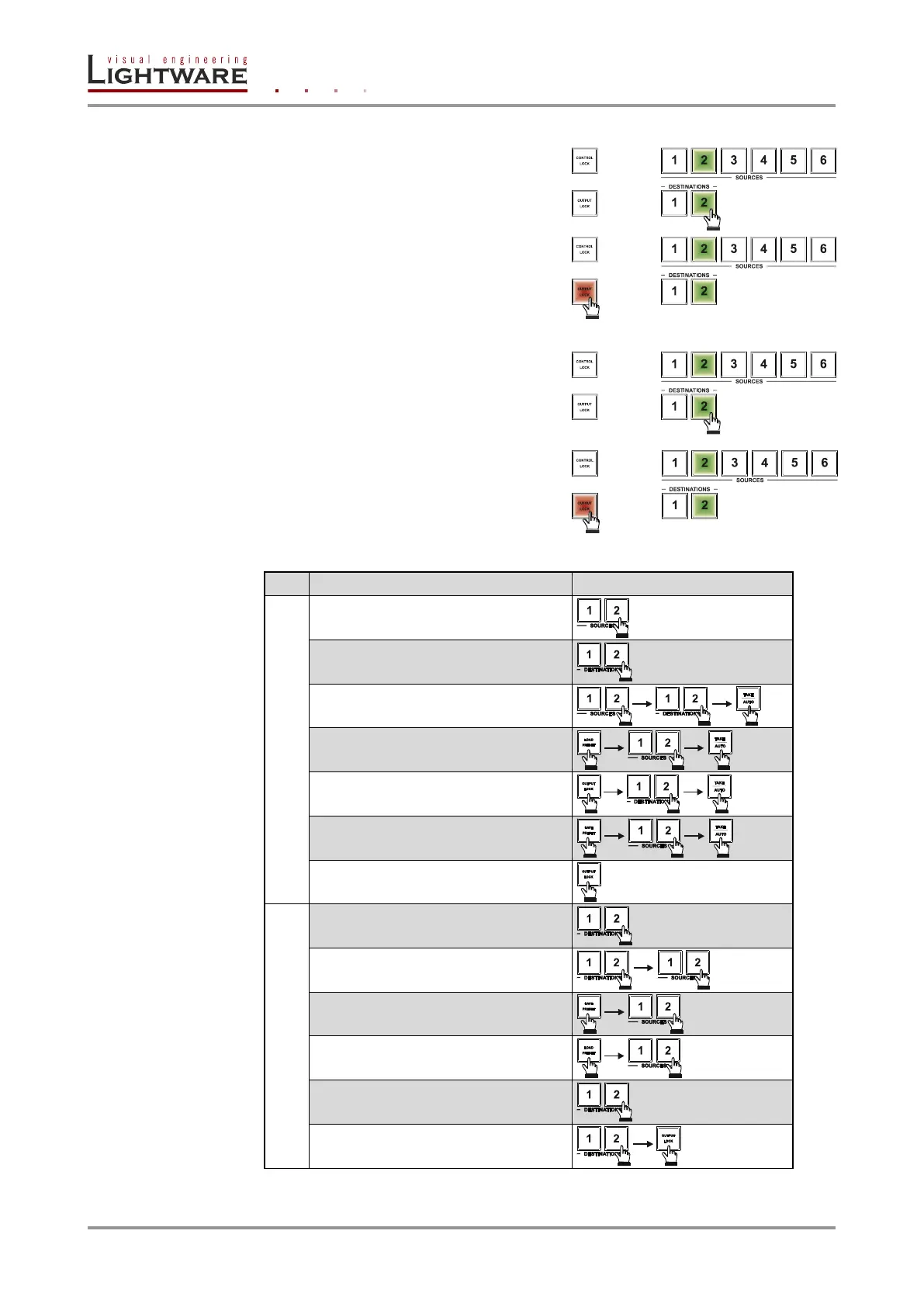

Page 36 / 119 Section 5. Installation and operation
Lock an output in AUTOTAKE mode
Step 1. Press and release the desired destination
button. Now the selected destination
button and the currently configured
source button light up (view mode).
Step 2. Press and release the Output Lock button;
it lights up in red, and lock function is
activated at once. No source can be
changed at the locked destination.
Unlock an output in AUTOTAKE mode
Step 1. Press and release the desired destination
button which was previously locked. Now
the selected destination button, the
currently configured source button and
the Output Lock button light up.
Step 2. Press and release the Output Lock button
(deselect). Now the Output Lock button
turns off, and the locking function has
been cancelled.
5.3.9. Front panel operations – Quick summary
View locked state of an output
Table 5-1. Front panel operations
