6.3. Crosspoint menu
When LDC finds the hardware, it determines the product type, and the LDC starts with the
default page, showing the Crosspoint menu.

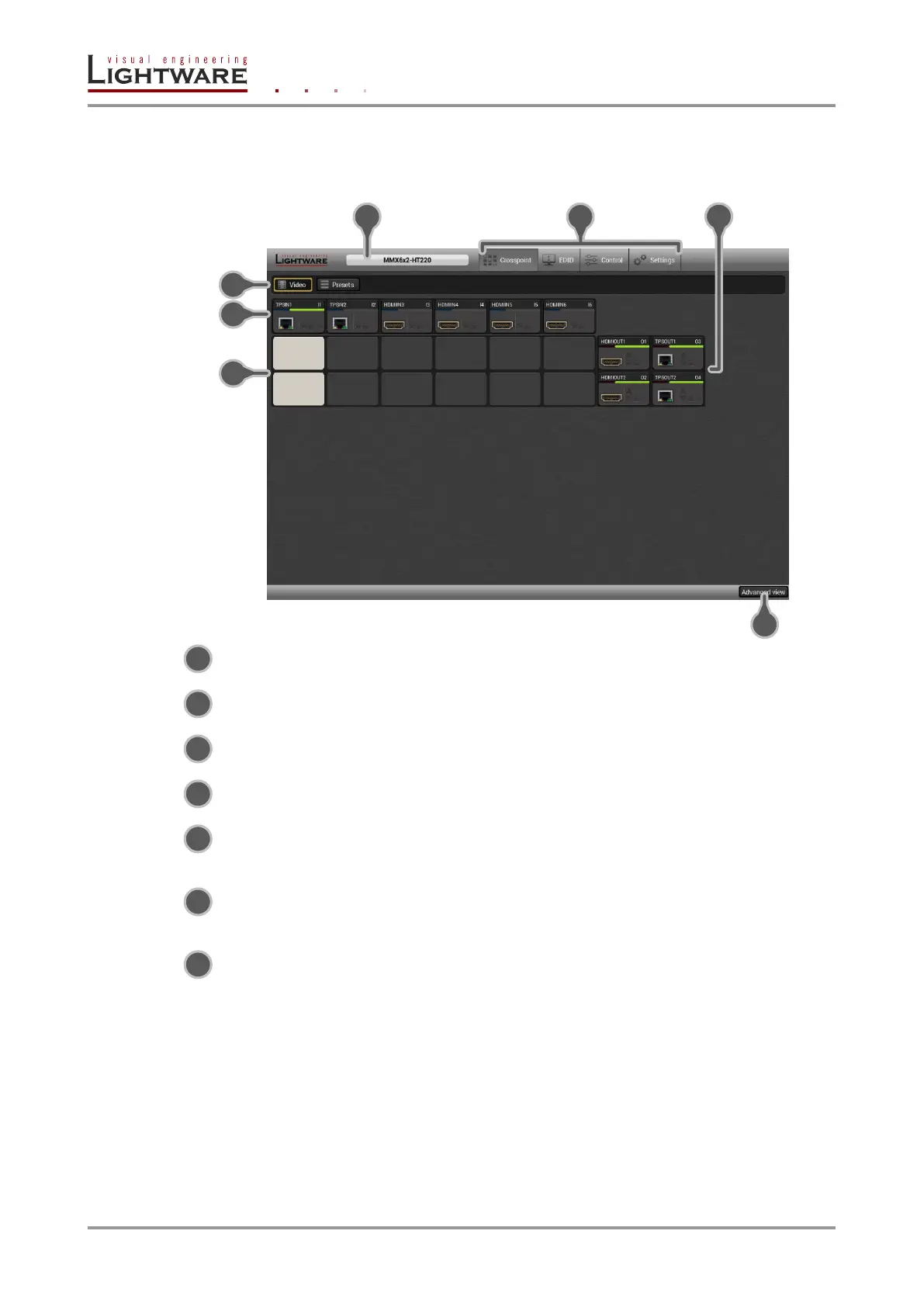

Main menu The available menu items are displayed. The active one is
showed with dark grey background color.
Information ribbon The label shows the type of the connected device. Device
discovery window can be displayed by clicking on this ribbon.
Submenu selector The available submenu items are displayed; in the Crosspoint
menu, the Video and the Presets submenus are defined.
Input ports HDMI and TPS input ports; click on the port to open the Port
properties window.
Connections Light grey square means the port is available but no connection
between the input and the output. White square means there is
a connection between the input and the output port.
Output ports TPS and HDMI output ports; since HDMIOUT1 and TPSOUT1
carry the same A/V signal (such as HDMIOUT2 and TPSOUT2),
the selected input will be switched to both output ports.
Advanced view Displaying Advanced view page, showing the Terminal window
and the LW3 protocol tree.
