Technical Information
39
PW 6xx7
Display [mm] (mm wc
(water column))
Water quantity [L]
PW 6107 PW 6137 PW 6167 PW 6207
210 61 77 79 95
215 63 78 80 98
220 66 80 82 100
225 67 81 84 102
230 67 83 86 105
235 68 84 87 107
240 69 88 90 109
245 70 88 92 110
250 72 91 93 114
255 74 94 96 116
260 76 95 98 118
265 78 97 100 122
270 79 99 101 124
275 80 100 104 126
280 81 102 106 128
285 83 104 107 131
290 85 105 109 133
295 86 107 110 135
300 88 109 111 137
Table 100-10: Water Quantities Related to Level
2.6 Coding Machine Model and Type of Heating

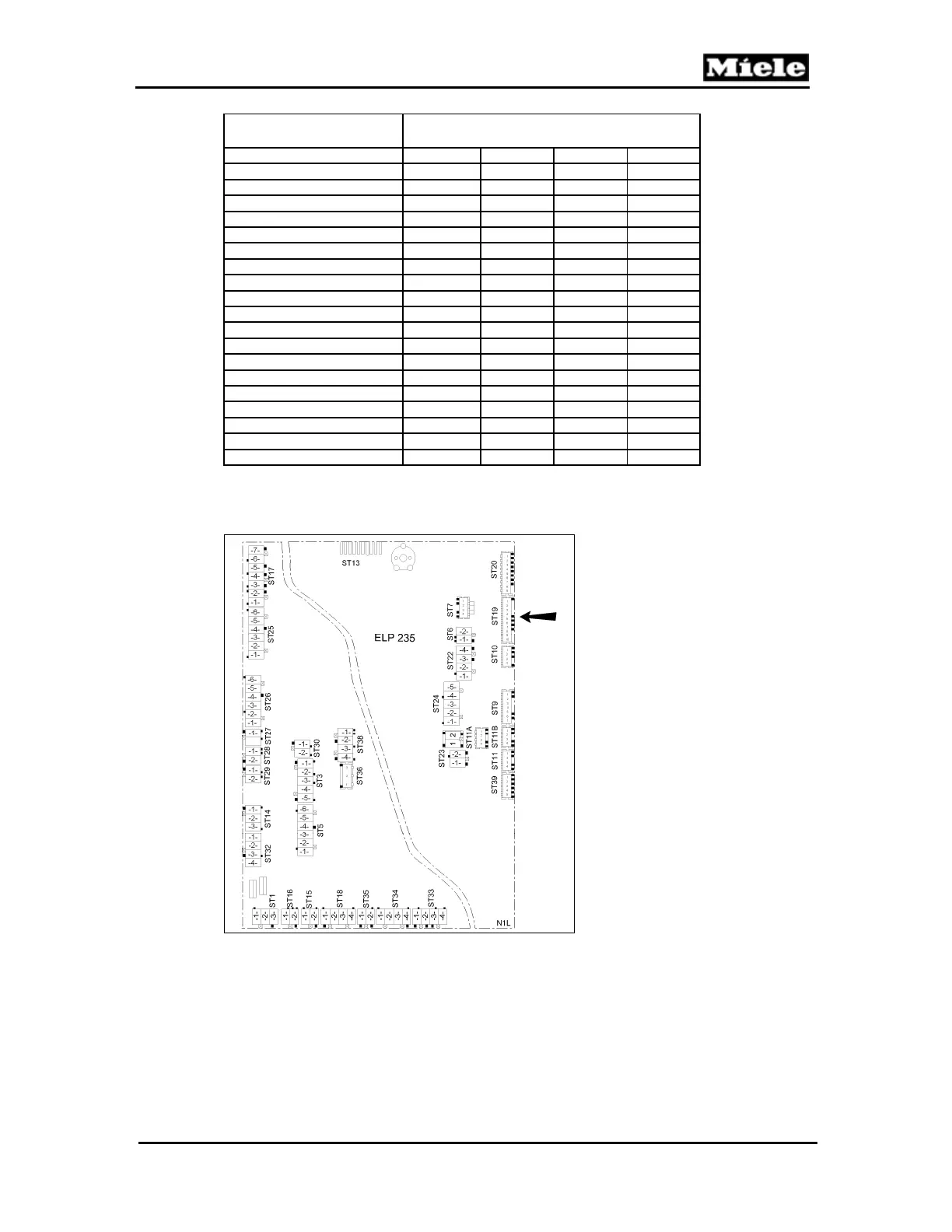

Figure 100-2: Location of Coding Plug N1L_ST19, Top View of Control-Power
Module ELP 235
The coding plug on the control-power module ELP 235 (plug N1L_ST19) is
divided into 2 areas. The first area (inputs “Cod 1” to “Cod 5”) is used to set
the model. The second area is used to set the type of heating (inputs “Cod 6”
to “Cod 8”). The machine can only be operated when valid coding of areas 1
and 2 has been carried out. If this coding plug is missing or impermissibly
coded, no program can be started and a coding plug fault is indicated.
