Technical Information
42
PW 6xx7
2.8 Explanation of Dispensing Terms

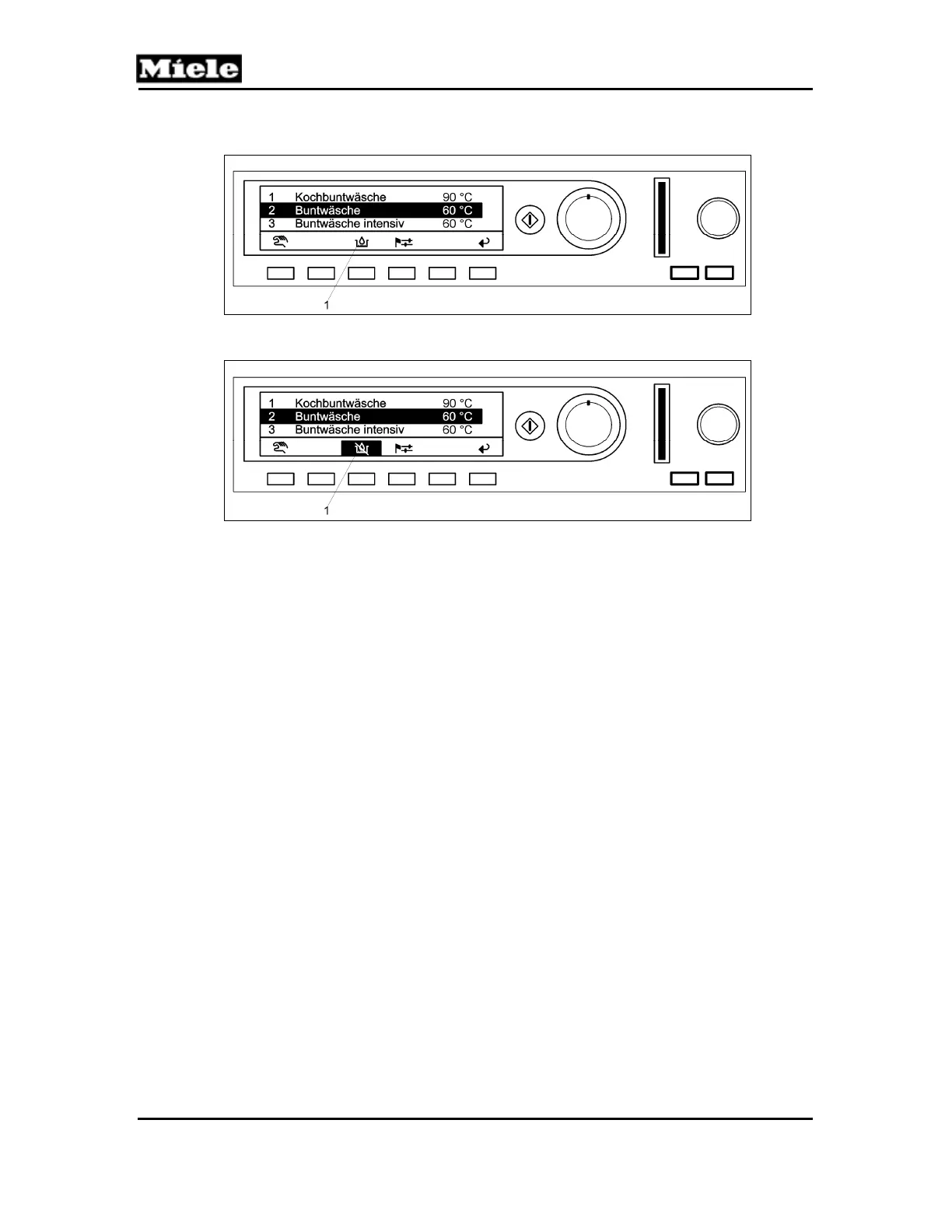

Figure 100-5: Dispenser Display with Dispensing Selected (Dispensing “Yes”) (From
ID 1230 / 1231)
Figure 100-6: Dispenser Display with Dispensing Deselected (Dispensing “No”)
(From ID 1230 / 1231)
Dispenser display
The indication in the display during a Profitronic M wash program for the user
to show that dispensing can be selected or deselected. At the same time the
control registers the currently set state. As a basic setting, the service
technician sets whether the user can see the dispensing indication and select
or deselect the function via the service mode (Service level Service
settings Basic settings Dosing Dispensing “Yes” / “No”). See
Figure 100-5 (dispensing selected) and Figure 100-6 (dispensing
deselected). If there is no indication in the display, the user can neither select
nor deselect dispensing. In this case, dispensing is entirely controlled by the
program.
Dispenser calibration
Programming of the control to set the dispensing rate in mL/min that the
dispenser pump and hose system has with the agent being dispensed. If the
dispensing rate is unknown, carry out programming for each appropriate
dispenser pump in the operating level of the Profitronic M control: Main menu
Settings Dispenser calibration Dispenser pump x.
Dispensed quantity
The quantity of agent dispensed during dispensing by a dispenser pump into
the suds container.
Dispensed agent
Additional substance in the wash process to achieve certain changes in the
wash load, such as for cleaning, stain removal, bleaching, disinfection, odor
removal, proofing, changing the feel of the surface. Dispensed agents can be
in solid, liquid or paste form.
