POWER TRAIN
-
Manual Transaxle
DIFFERENTIAL ASSEMBLY
id

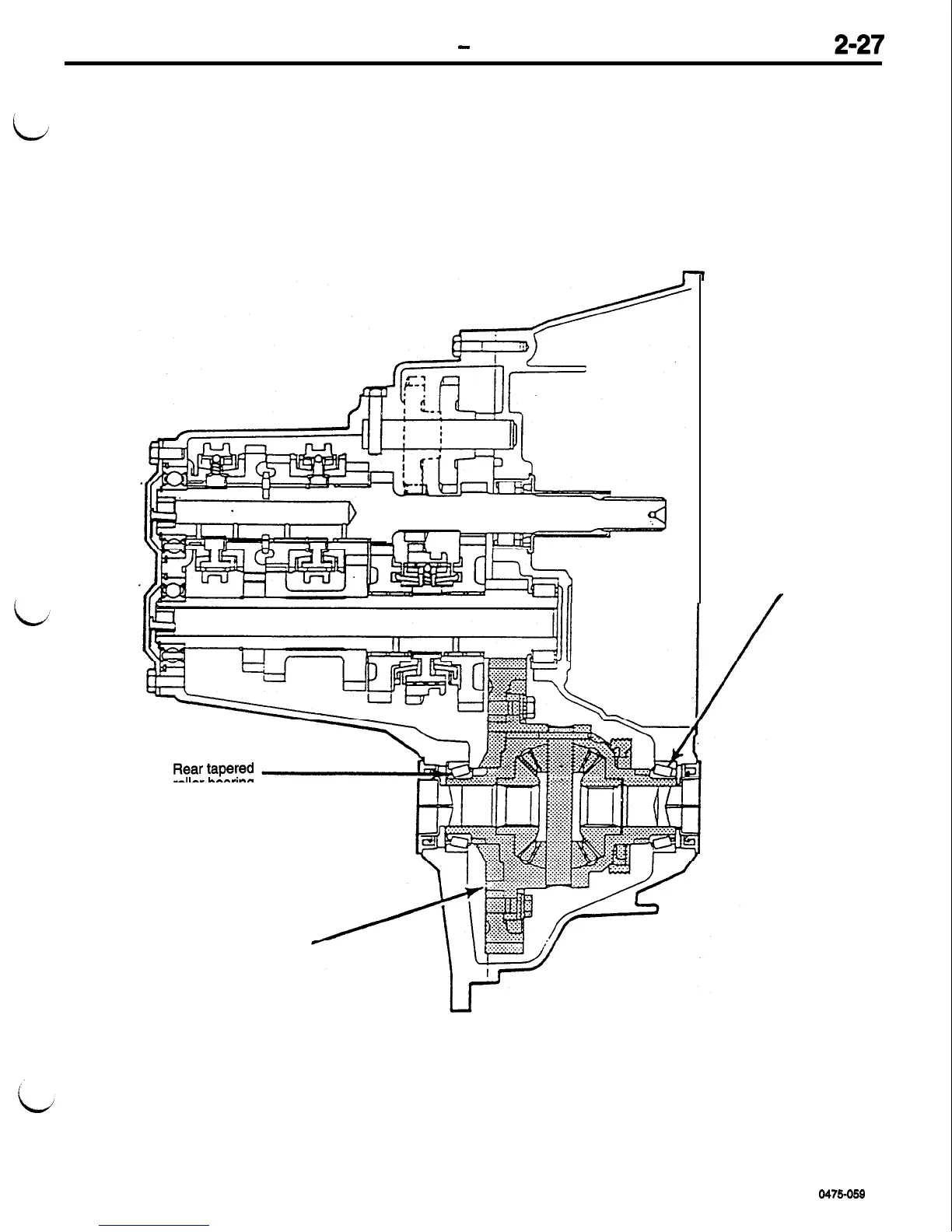

The differential assembly is supported by two ta-
pered roller bearings, one in the front case housing
and the other in the rear case housing.
Front tapered
roller bearing
/
roller bearing
Differential
assembly
0475-05s
