Mitsubishi ECLIPSE Technical Information Manual

BODY - Doors
4-13

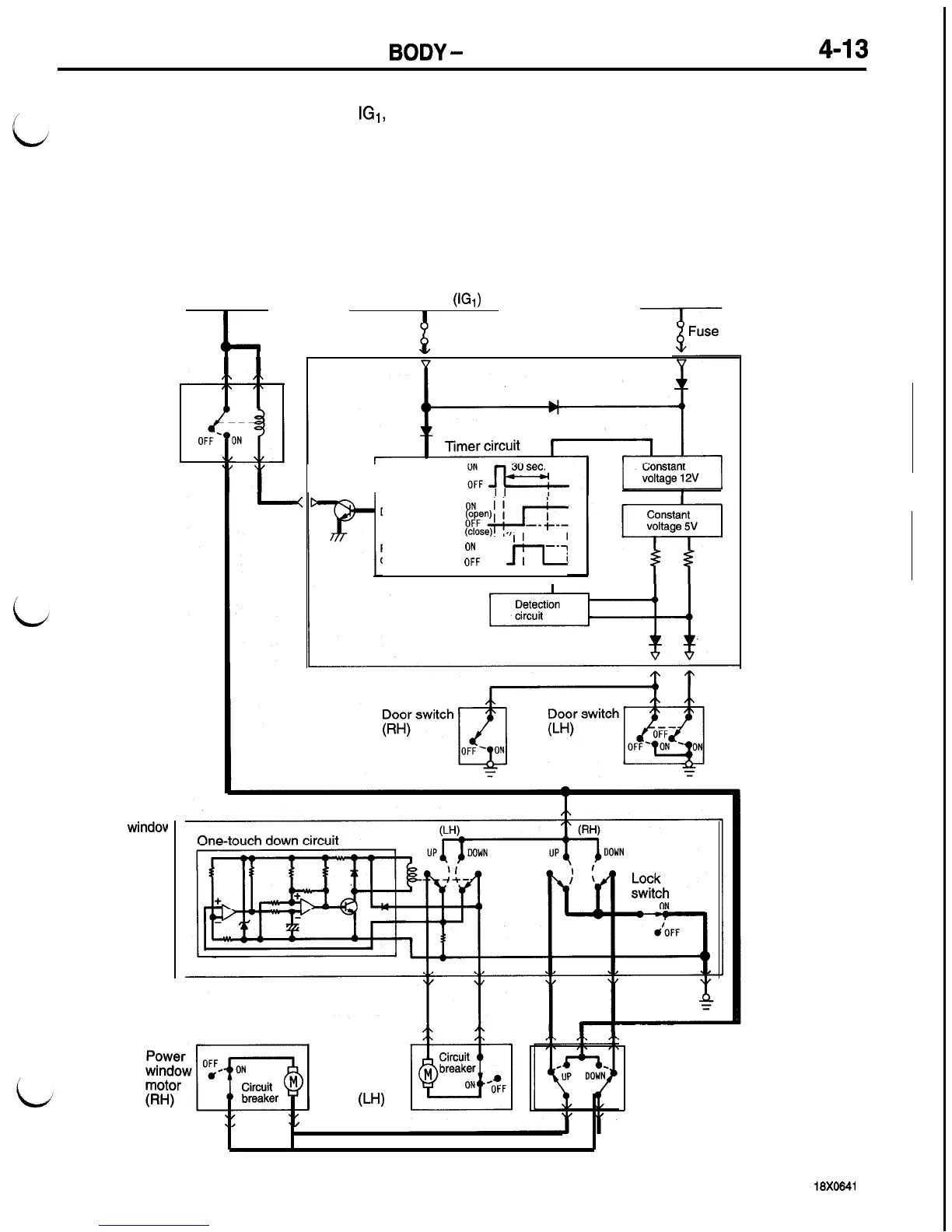

2. Operation of Power Windows When Controlled by Sub Switches
(1)
When the ignition switch is placed at IG,, current
(3) Even after the ignition switch has been placed
is supplied from the ETACS-ECU to the coil
at OFF, the power window can be operated
of the power window relay. This causes the
for a period of 30 seconds. During this period,
power window relay to be ON.
however, the output is interrupted the moment
(2)
Current is supplied from the power window relay
the door is opened.
through the sub switch to the power window
motor to operate the power window.
Power window
relay
Power window
main switch
Fusible link
Ignition switch (IG,)
Fuse
J
d ETACS-ECU
Fusible link
Ignition switch
Door switch
p#~
Power window ON
output
oFF j-l--;
Power
window
motor
0-W
Power window
sub-switch
18X0641
