WINDOW GLASS REGULATOR
L
Since the
sashless
doors have been adopted, highly
rigid X type window glass regulators have been
adopted.
The door glass is supported by a whole length of
hollow lip provided in the door belt line molding.
The structure, compared with the localized support
of the conventional outer stabilizers, places less
L
<Vehicles
with power window>

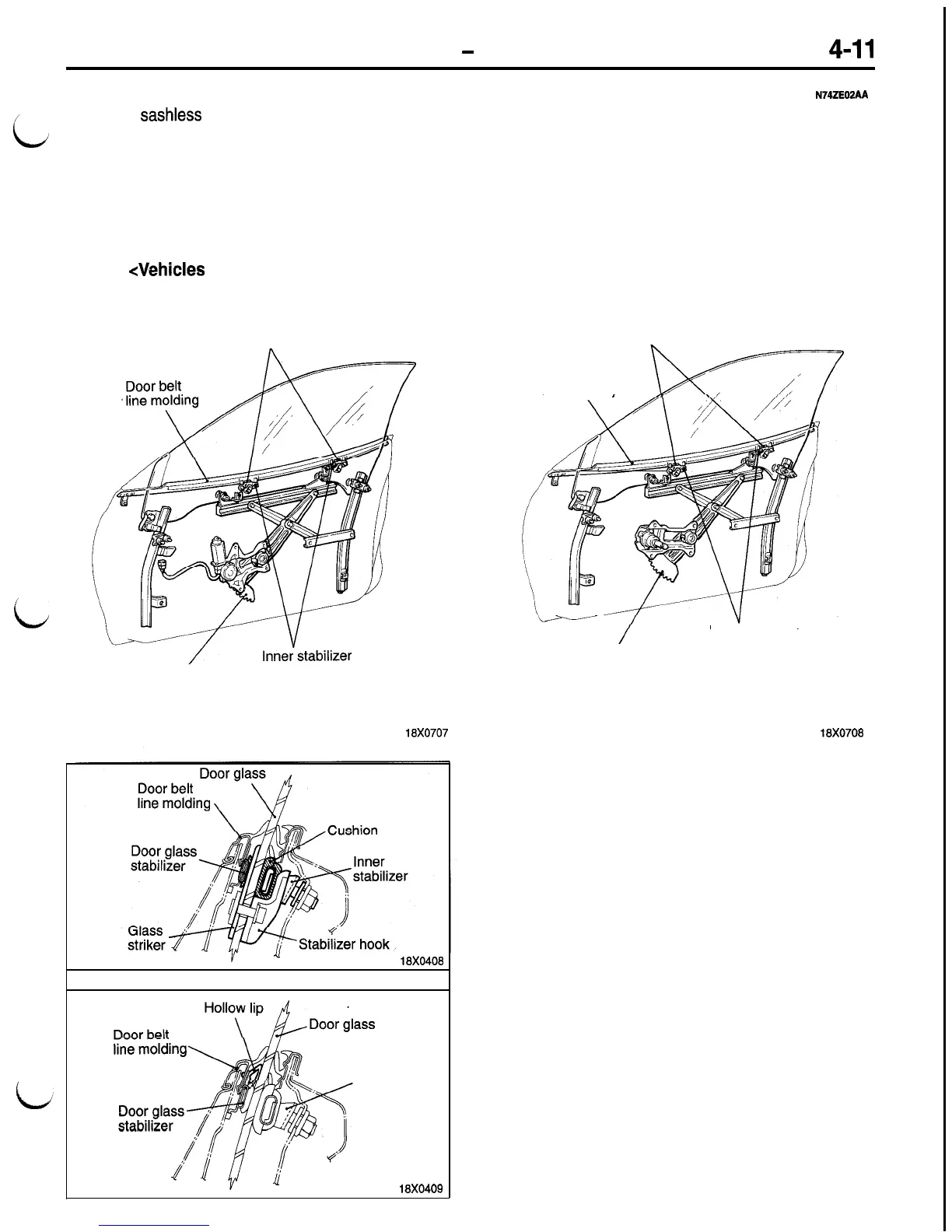

Door glass stabilizer
Power window regulator
18X0707
18X0408
Inner stabilizer
18X0409
N74ZEOZAA
load on the glass. Therefore, the outside of glass
is less vulnerable to damage.
On power window equipped vehicles, the power
window switch has been changed to lower the door
glass when the knob is pressed in, and raise the
door glass when the knob is pulled up.
<Vehicles without power window>
Door glass stabilizer
Door belt
line molding
Inner stabilizer
Manual window regulator
18X0708
HOLDING OF DOOR GLASS
When fully raised, stabilizer hook on the door glass
catches the inner stabilizer cushion to hold the door
glass securely and draw it inward. In addition, from
outside the door glass, the door glass stabilizer pres-
ses glass striker and the door glass inward.
WHEN DOOR GLASS BEGINS TO OPEN
The glass striker moves down with the door glass,
but the hollow lip provided over the full length of
the door belt line molding provides a proper pressure
against the glass. Therefore, the outside of glass
is less vulnerable to damage.
NOTE
The stabilizer hook also moves down with the glass.
