EQUIPMENT
-
Heater and Air Conditioning
7-37
~
COMPRESSOR
/
L
l

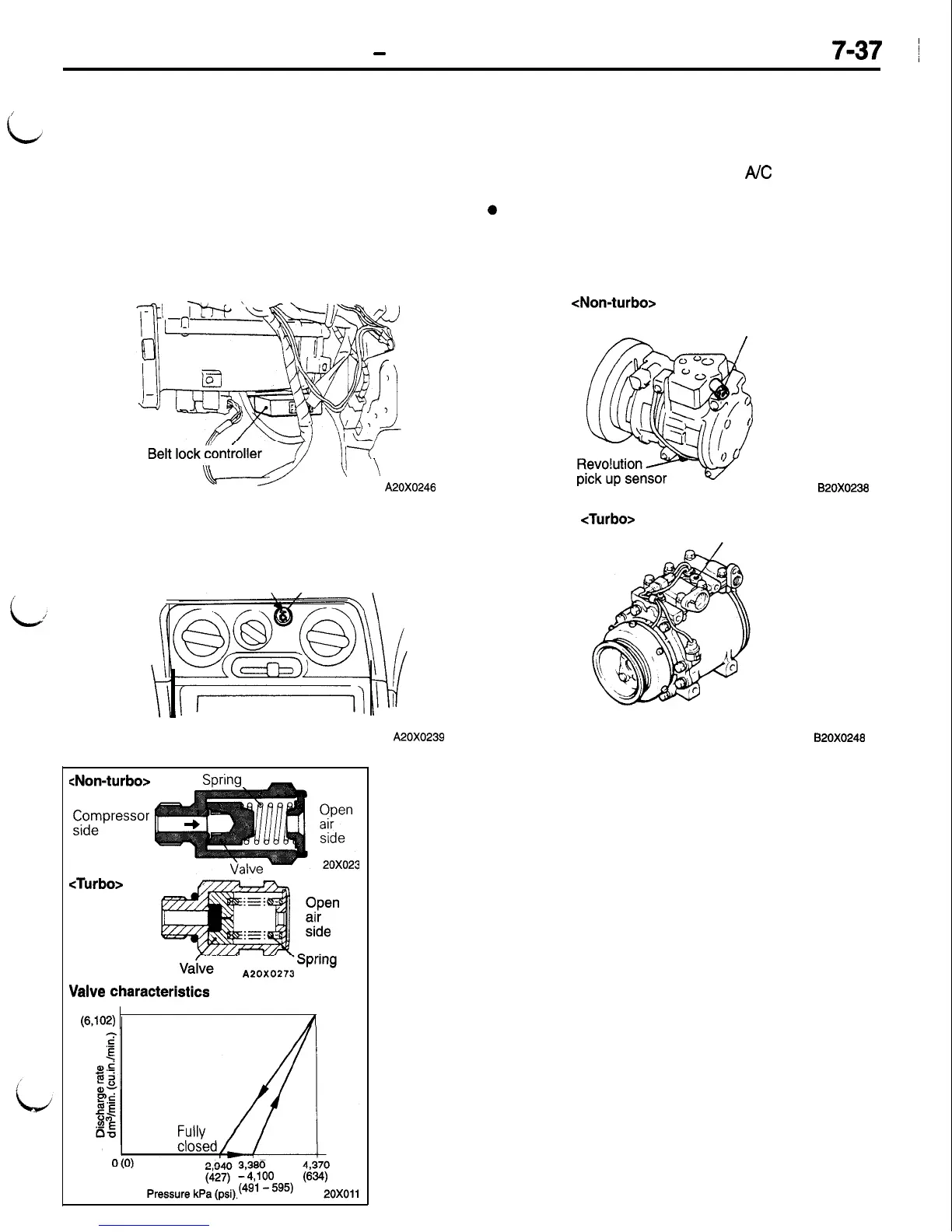

The A/C system on the non-turbo models incor-
porates a belt locking control function which
prevents the belts from being broken due to
a slip that would occur when the compressor
is locked. This function is achieved by the belt
lock controller located below the blower motor.
The controller compares the compressor speed
obtained from the compressor revolution pick-up
sensor with the engine speed and stops the
‘-
’
’
A2OXO246
Blinking A/C switch
cNon-turbo>
z;;pressor
<Turbo>
Compressor
side
A20X0273
Valve
characteristics
100
(6,102)
Fully open
A20X0239
A/C if the result of the calculation exceeds the
predetermined value.
When the compressor is locked, the compressor
operation indicator light in the
A/C
switch blinks
to warn the driver of the abnormal condition.
*
A high pressure relief valve is provided to limit
the release of the refrigerant into air to a mini-
mum when the high-pressure side pressure be-
comes too high.
<Non-turbo>
High pressure
relief valve
<Turbo>
High pressure
relief valve
820X0238
820X0248
HIGH PRESSURE RELIEF VALVE
The valve, which is normally closed by the spring force, is
forced open to release the refrigerant into open air when the
high-pressure side pressure becomes so high that it overcomes
the spring force. When the pressure is lowered back to the
normal level, the valve is closed by the spring force not to
let out any more refrigerant.
To Next Page
