BODY - Doors

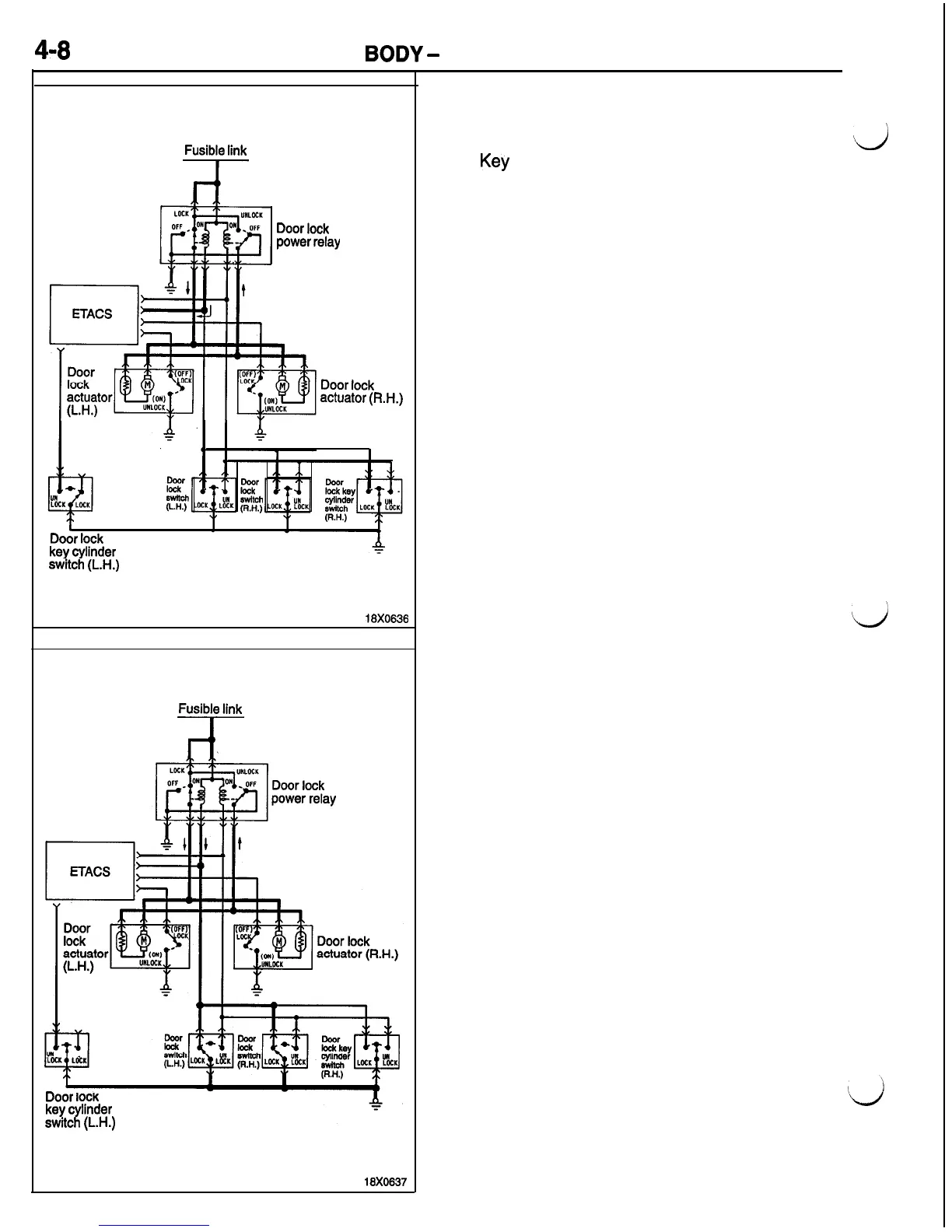

Fusible link
Door lock
power relay
Door lock
actuator (R.H.)
Door lock
key cylinder
switch (L.H.)
18X0636
Fusible link
rt
Door IOCK
key cylinder
switch (L.H.)
18X0637
CENTRAL DOOR LOCKING SYSTEM OPERATION
1. Door Locking Operation
(1) Door locking operation by Inside Lock Knob or
d
Key
When the driver’s lock knob or door key is placed
in the lock position, the door lock actuator switch
is forced to OFF by a mechanical link. The OFF
signal from the actuator switch is input to the
ETACS. In response to the signal, the ETACS
delivers a lock output. Accordingly, the lock side
coil of the door lock power relay is energized
to operate the door lock actuators and lock the
doors.
d
(2) Door locking operation by door lock switch
When the lock side of the door lock switch is
turned ON, the lock side coil of the door lock
power relay is energized to operate the door lock
actuators and lock the doors.
