DRIVE-CONTROL
COMPONENTS
-
Front Suspension
3-3
FRONT
SUSPENSION
i
FEATURES
-

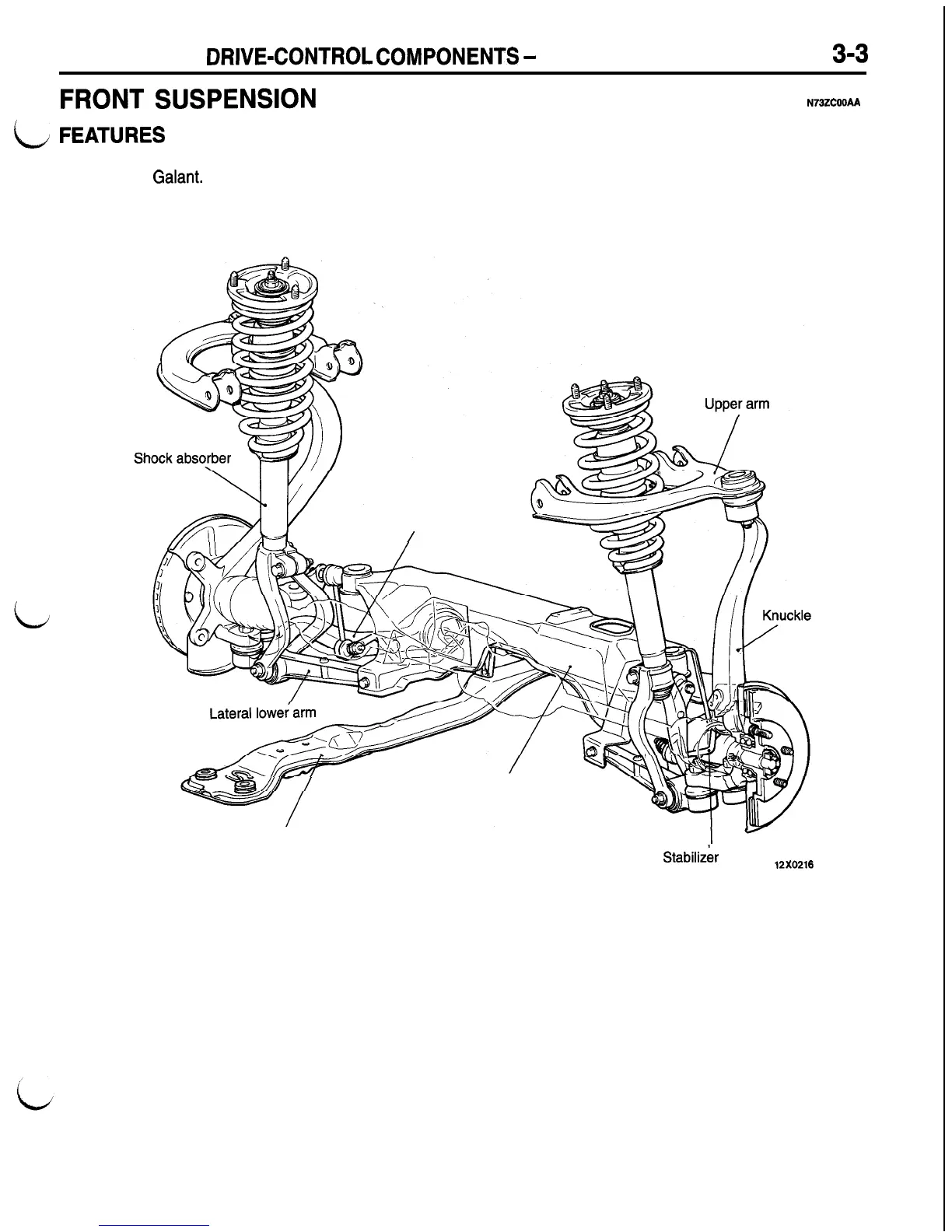

The front suspension is similar to that introduced
on the 1994
Galant.
It is a multi-link structure featur-
ing two lower arms by which an ideal virtual kingpin
&?x==Y
/
Compression lower arm
N73ZCOOAA
axis is formed. In addition, the upper arms have
been raised above the tire level to improve both
directional stability and ride.
Crossmember
Centermember
Stabilizh
bar
12X0216
223
225
