8-13

Chapter 8 FUEL SYSTEM

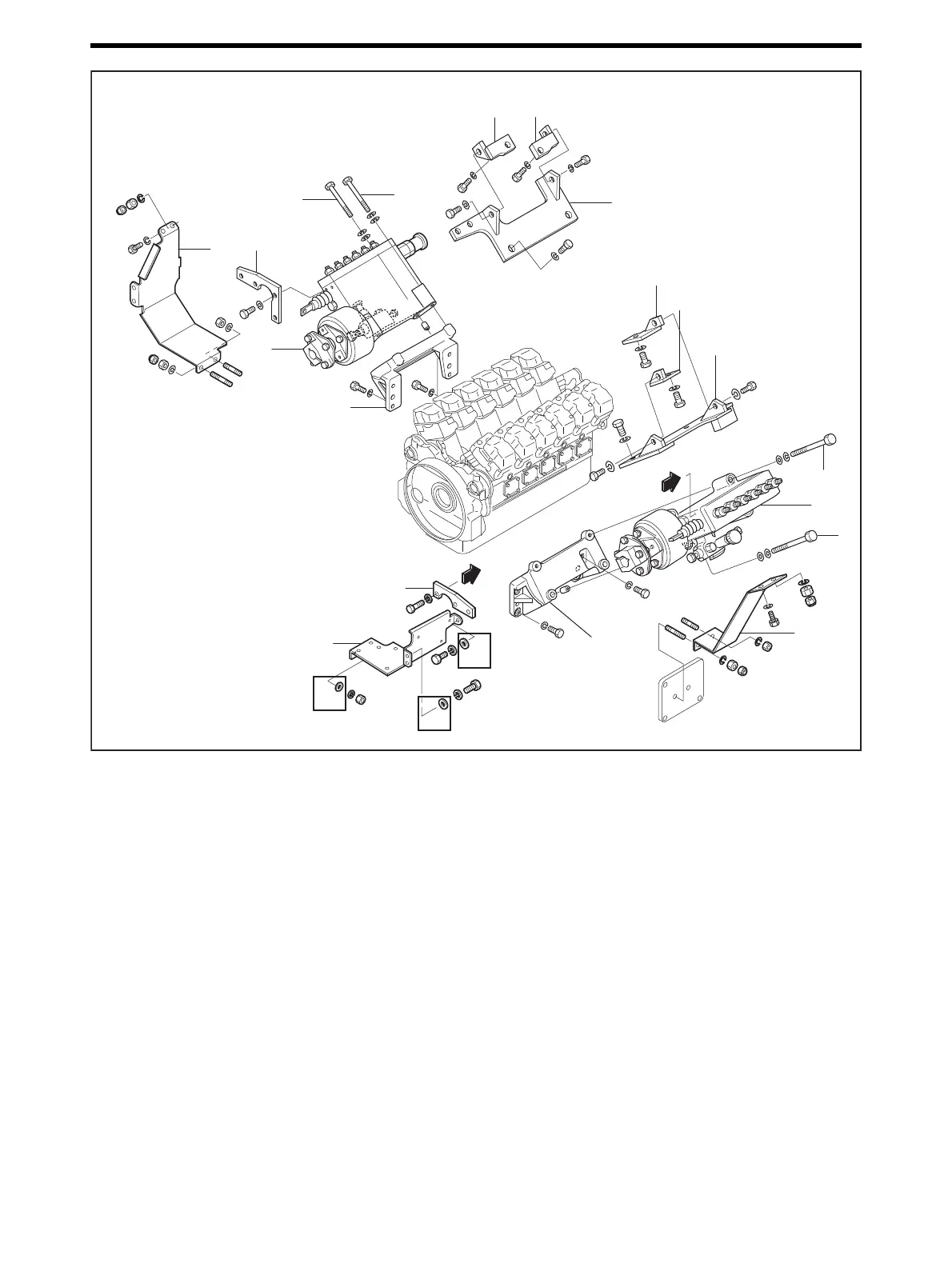

Fuel Injection Pump - Remove and Inspect

Y2PTAW

Tamper proof attachment spec

Crankcase

Removing Sequence

1 Right stay

2 Right coupling cover

3 Pump mounting bolt

4 Pump mounting bolt

5 Right fuel injection pump (Approx 43 kg [95 lb])

6 Right tamper plate

7 Right injection pump stay

8 Stay

9 Right injection pump bracket

10 Right stay

11 Left coupling cover

12 Pump mounting bolt

13 Pump mounting bolt

14 Left fuel injection pump

15 Left fuel injection pump stay

16 Stay

17 Left injection pump stay
