Chapter 8 FUEL SYSTEM
2.2
Fuel Filter (Paper Element) -
Disassemble, Inspect a
nd Assemble

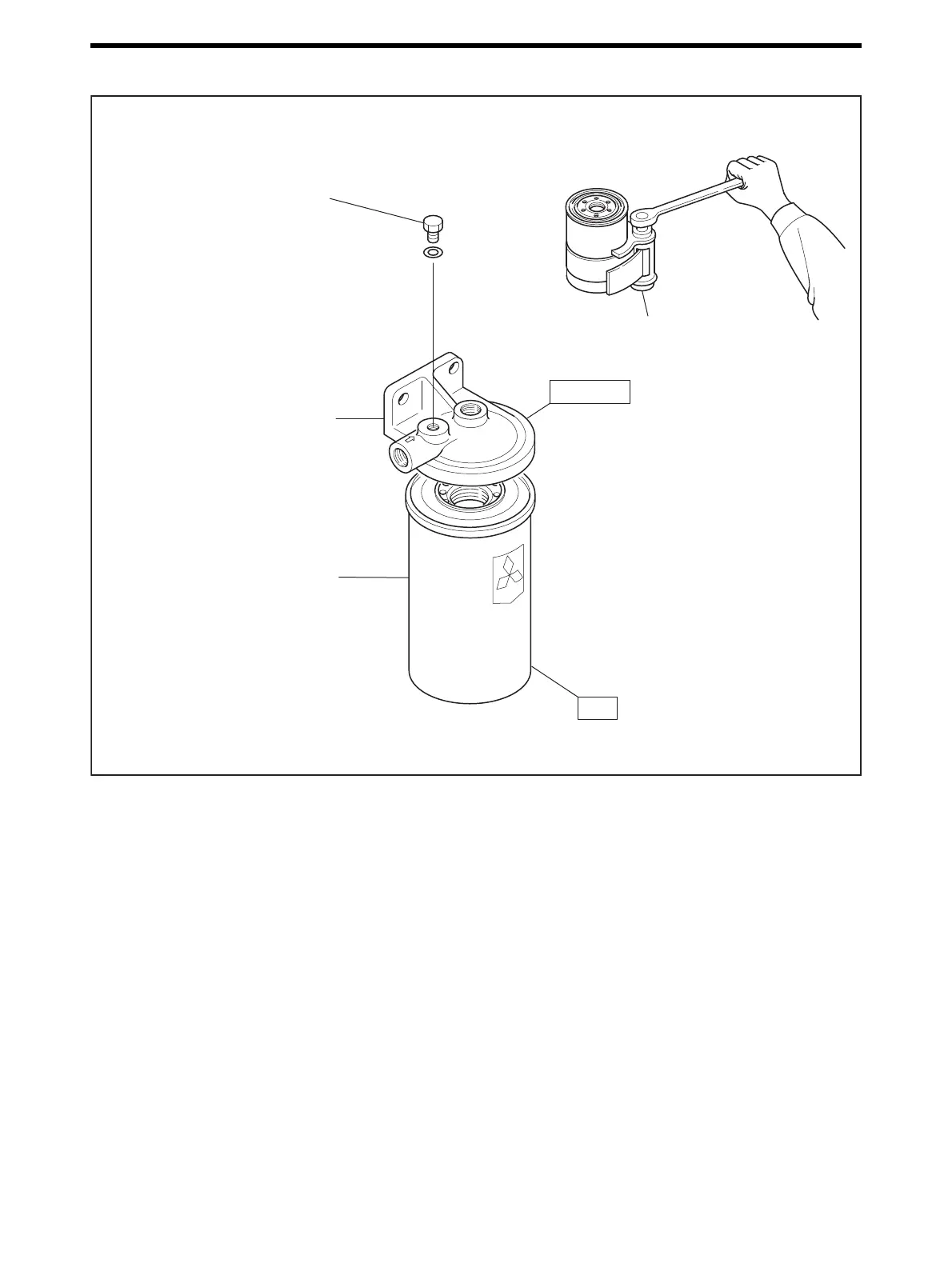

Fuel Filter (Paper Element) - Disassemble, Inspect and Assemble
2
Use the filter wrench to remove
the fuel filter
.
(Use only when removing)
Filter wrench
Air vent plug
9 ± 1 N·m
{0.9 ± 0.1 kgf·m}
[6.6 ±0.7 lbf·ft]
Crack, flaw
Dent
Standard fuel filter spec
1
Disassembling Sequence
1
Fuel filter
ca
rtridge
2
Fuel filter bracket
186
188
