10-47
Chapter 10 COOLING SYSTEM
2.19

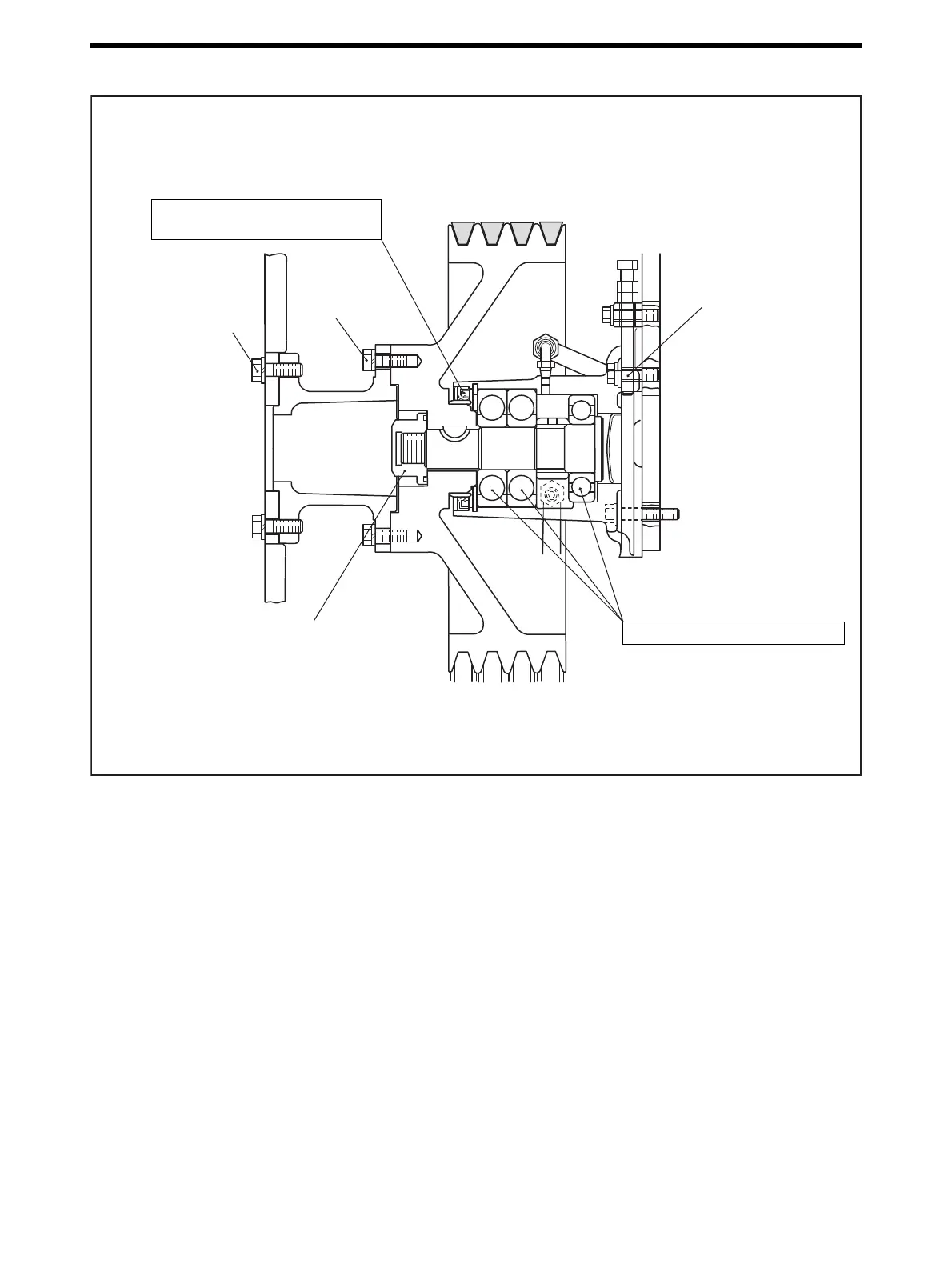

Fan Drive - Assemble
Fan Drive - Assemble
441 ± 22 N·m
{45 ± 2.2 kgf·m}
[325.3 ± 16.2 lbf·ft]
Apply
LOCTITE 262 to threads.
Apply engine oil to the oil seal lip.
Flush with the case face.
Apply engine oil to rolling surface
108 ± 10.8 N·m
{1
1 ± 1 .1 kgf·m}
[79.7 ± 8.0 lbf·t]
108 ± 10.8 N·m
{1
1 ± 1 .1 kgf·m}
[79.7 ± 8.0 lbf·t]
178 ± 8.9 N·m
{18 ± 0.9 kgf·m}
[131.3 ± 6.6 lbf·ft]
288
290
