11-6 Exploded Views and Parts Lists: Low-Power (15W) Radio Exploded View
February 3, 2003 6881076C20-E
11.5 Low-Power (15W) Radio Exploded View

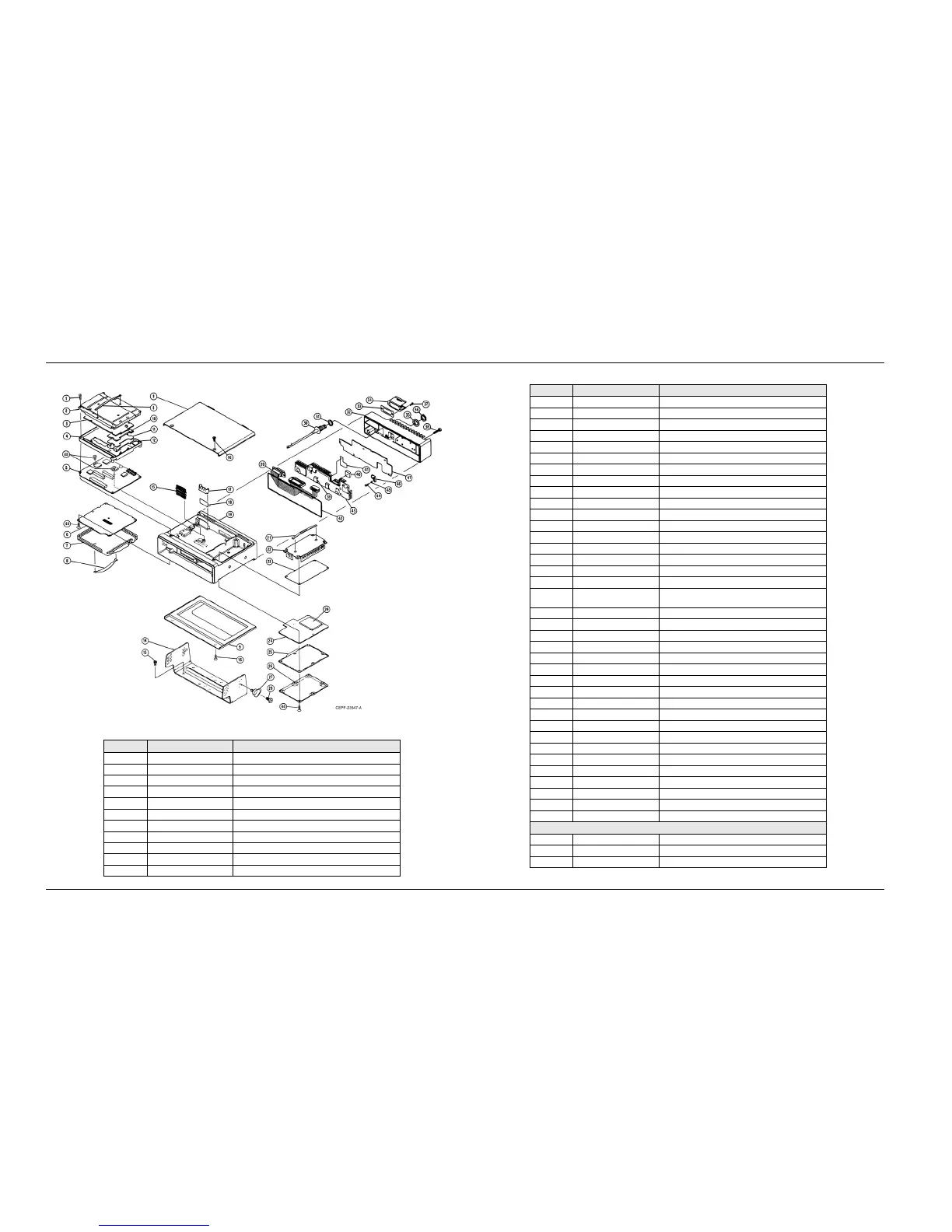

Figure 11-5. Low-Power (15W) Radio Exploded View
Table 11-5. Low-Power (15W) Radio Parts List
Item No. Motorola Part No. Description
1 0312016A27 SCREW, Tapping 3.5 x 0.6 x 22 (Board Mounting)
2 2605704V02 SHIELD, Top
3 HLN6458_ KIT, Controller Board
4 2705703V02 CASTING, Controller
5 HLN5558_ KIT, Command Board
6 HRN6019_ KIT, RF Board (800 MHz)
7 1580099L01 SHIELD, RF Board
8 5584300B01 HANDLE (Qty 2)
9 1580264N04 COVER (Includes gasket)
10 2605131X01 SHIELD, Encryption Board (Optional)
11 - - - - - - - - - BOARD, Encryption (Optional)
12 4205566W01 CLIP, Encryption Board (Optional)
13 2880260M03 HEADER, Floating
14 0780086N01 TRUNNION, Mounting
15 0312002B14 SCREW, Self-Drilling 10-16 x 10 (Qty 4)
16 0380102P01 SCREW, Tapping 3.5 x 0.6 x10 (Qty 8)
17 4280007M02 CLIP, Regulator
18 1480001M03 INSULATOR, Regulator
19 2780082N01 CHASSIS, Consolidated
20 3080239N02 CABLE, PA Ribbon
21 5584300B01 HANDLE (Qty 2)
22 1580098L01 COVER, Front-End Receiver
23 HRF6004_ KIT, Front-End Receiver Board (800 MHz)
24 HLF6080_ KIT, VCO Board (800 MHz)
25 3280247N01 GASKET, VCO
26 1580097L01 COVER, VCO Board
27 0384244C06 SCREW, Wing 5 x 0.8 x 10 (Qty 4)
28 0380114M02 SCREW, Machine 5 x 0.8 x 10 (Qty 8)
29 HLF6079_
1580223N02
KIT, VCO Hybrid Board (800 MHz)
COVER, VCO Hybrid (not included in item 29)
30 3080261M05 CABLE, Mini (includes items 35 and 36)
31 3280089M02 GASKET, Antenna
32 2680009M02 HEATSINK
33 3080261M05 GASKET, Accessory Connector
34 4280016M03 CLIP, Accessory Connector
35 0400132718 LOCKWASHER, Internal Tooth
36 0280142M01 NUT, Hex, 7/16"
37 0380043L01 SCREW, Metric 3.0 x 10 (Qty 4)
38 0380077M03 SCREW, Hex Socket (Qty 2)
39 4280265M02 CLIP, PA Coax (Qty 2)
40 4380104N01 SPACER, PA Shield
41 1480143M01 INSULATOR, Shield
42 3280053P01 GASKET, Heatsink
43 2680011M01 SHIELD, PA Board
44 0310911A11 SCREW, Machine 3.5 x 0.5 x 8
45 0480217E01 WASHER, Compression
46 2680187N02 HEATSINK
47 HLF6078_ KIT, Low-Power PA Board (15W; 800 MHz)
48 0310943J15 SCREW, Tapping 3.5 x 0.6 x 8
NON-REFERENCED ITEMS
3080091M01 CABLE, Speaker
7505295B01 PAD, Crystal
7580094M05 PAD, VF Display Shock (Qty 3)
Note: _ = The latest version kit. When ordering, refer to your specific kit for this suffix letter.
Table 11-5. Low-Power (15W) Radio Parts List (Continued)
Item No. Motorola Part No. Description
