Radio Alignment Procedure: ASTRO Digital Spectra and Digital Spectra Plus Tuner Software 6-21
This test can be done with either the R-2670 Communication Analyzer or the 8901_ Series
Modulation Analyzer. The method of choice is the R-2670 analyzer.
1. Initial set up using the R-2670 Communication Analyzer:
- Connect a BNC cable between the “DEMOD OUT” port and the “VERT/SINAD DIST/DMM
COUNTER IN” port on the R-2670.
-Press the SPF key on the R-2670 to display the “SPECIAL FUNCTIONS MENU.” Move the
cursor to “High Pass,” and select 5 Hz on the soft key menu. Select 20 kHz for the “Low
Pass” setting.
- In the “RF Control” section of the R-2670, enter the frequency displayed on the RSS
screen. Move the cursor to the “B/W” setting and select “WIDE +/- 100 kHz” on the soft key
menu.
- Place the R-2670 cursor in the “Display” zone. Select “AC VOLTS” on the soft key menu.
Move the cursor to the “Range” setting and select “AUTO.”
2. Initial set up using the 8901_ Series Modulation Analyzer:
- Press the FM MEASUREMENT button. (The “Error 03-input level too low” indication is
normal until an input signal is applied.)
- Simultaneously press the Peak – and Peak + buttons. Both LEDs on the buttons should
light.
- Press the 15 kHz LP filter key.
3. Select the TX Deviation Limit alignment screen. The screen will indicate the transmit
frequencies to be used. See
Figure 6-17.

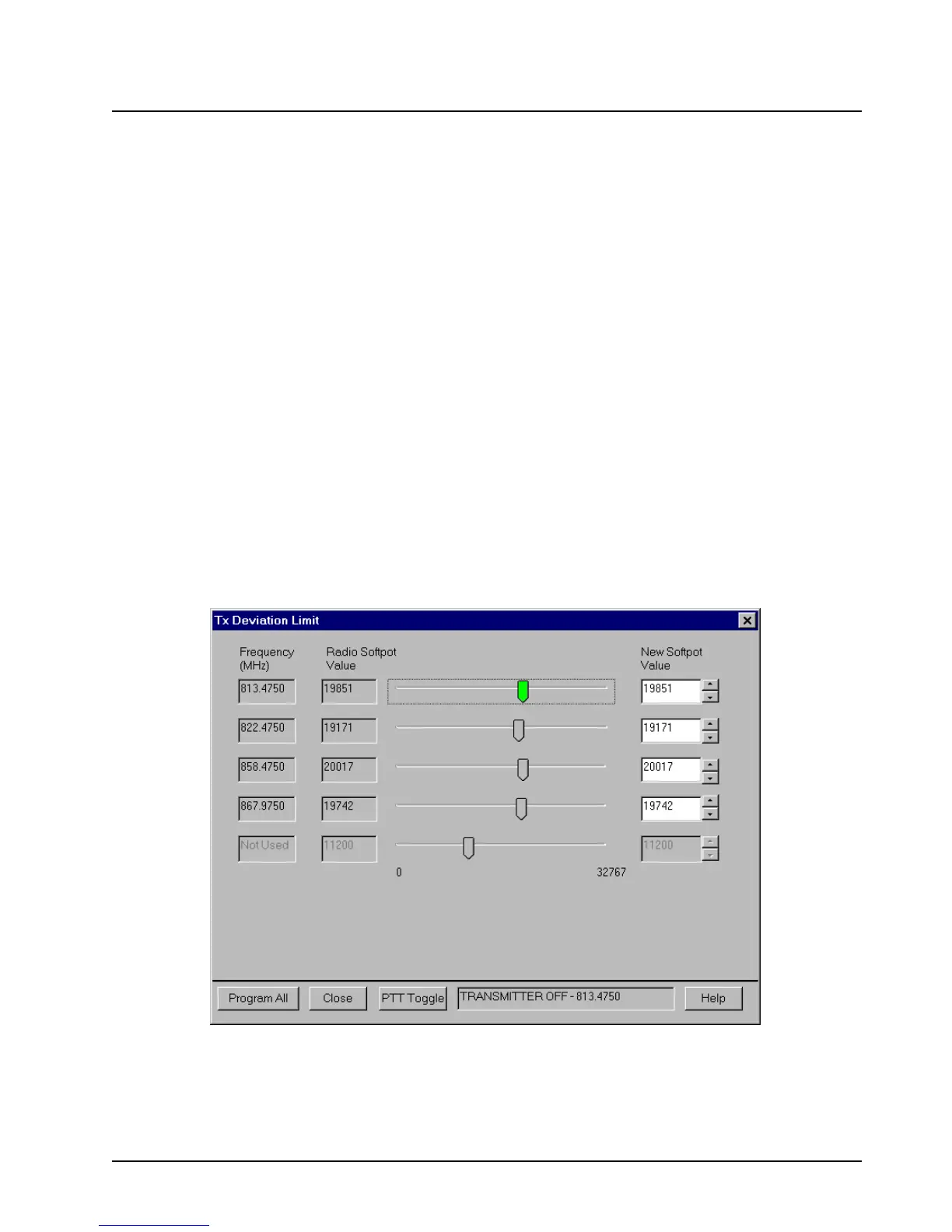

Figure 6-17. Transmit Deviation Limit Alignment Screen
4. Left-click the desired frequency field (starting with the highest frequency shown).
