6881076C20-E February 3, 2003
Exploded Views and Parts Lists: Mid-Power (20-40/25-50/35W) Radio Exploded View 11-7
11.6 Mid-Power (20-40/25-50/35W) Radio Exploded View

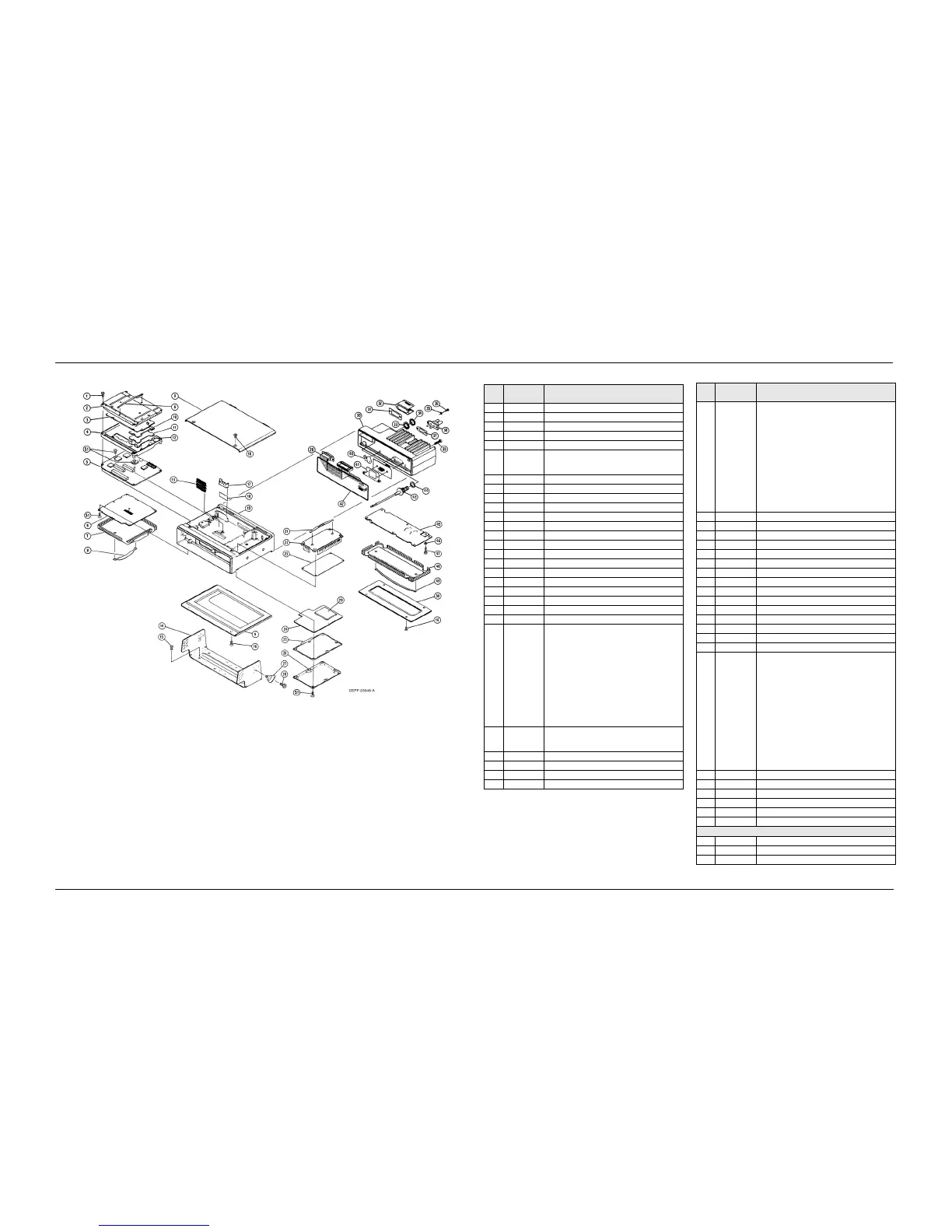

Figure 11-6. Mid-Power (20-40/25-50/35W) Radio Exploded View
Table 11-6. Mid-Power (20-40/25-50/35W) Radio Parts List
Item
No.
Motorola
Part No.
Description
1 0312016A27 SCREW, Tapping 3.5 x 0.6 x 22 (Board Mounting)
2 2605704V02 SHIELD, Top
3 HLN6458_ BOARD KIT, Controller
4 2705703V02 CASTING, Controller
5 HLN5558_ Kit, Command Board
6 HRN6014_ or
HRN6020_ or
HRN6019_
KIT, RF Board (VHF)
KIT, RF Board (UHF)
KIT, RF Board (800 MHz)
7 1580099L01 SHIELD, RF Board
8 5584300B01 HANDLE (Qty 2)
9 1580264N04 COVER (Includes gasket)
10 2605131X01 SHIELD, Encryption Board (Optional)
11 - - - - - - - - - BOARD, Encryption (Optional)
12 4205566W01 CLIP, Encryption Board (Optional)
13 2880260M01 HEADER, Floating
14 0780086N01 TRUNNION, Mounting
15 0312002B14 SCREW, Self-Drilling 10-16 x 10 (Qty 4)
16 0380102P01 SCREW, Tapping 3.5 x 0.6 x10 (Qty 8)
17 4280007M01 CLIP, Regulator
18 1480001M01 INSULATOR, Regulator
19 2780082N01 CHASSIS, Consolidated
20 3080239N02 CABLE, PA Ribbon
21 5584300B01 HANDLE (Qty 2)
22 1580098L01 COVER, Front-End Receiver
23 HRD6001_ or
HRD6002_ or
HRE6001_ or
HRE6002_ or
HRE6003_ or
HRE6004_ or
HRF6004_
KIT, Front-End Receiver Board
(VHF Range 1, 136-162MHz)
KIT, Front-End Receiver Board
(VHF Range 2, 146-174MHz)
KIT, Front-End Receiver Board
(UHF Range 1, 403-433MHz)
KIT, Front-End Receiver Board
(UHF Range 2, 438-470MHz)
KIT, Front-End Receiver Board
(UHF Range 3, 450-482MHz)
KIT, Front-End Receiver Board
(UHF Range 4, 482-512MHz)
KIT, Front-End Receiver Board (800 MHz)
24 HLD6000_ or
HLE6046_ or
HLF6080_
KIT, VCO Board (VHF)
KIT, VCO Board (UHF)
KIT, VCO Board (800 MHz)
25 3280247N01 GASKET, VCO
26 1580097L01 COVER, VCO Board
27 0384244C06 SCREW, Wing 5 x 0.8 x 10 (Qty 4)
28 0380114M02 SCREW, Machine 5 x 0.8 x 10 (Qty 8)
29 HLD6061_ or
HLD6062_ or
HLE6101_ or
HLE6102_ or
HLE6103_ or
HLE6104_ or
HLF6079_
1580223N02
KIT, VCO Hybrid Board
(VHF Range 1, 136-162MHz)
KIT, VCO Hybrid Board
(VHF Range 2, 146-174MHz)
KIT, VCO Hybrid Board
(UHF Range 1, 403-433MHz)
KIT, VCO Hybrid Board
(UHF Range 2, 438-470MHz)
KIT, VCO Hybrid Board
(UHF Range 3, 450-482MHz)
KIT, VCO Hybrid Board
(UHF Range 4, 482-512MHz)
Kit, VCO Hybrid Board (800 MHz)
COVER, VCO Hybrid (not included in item 29)
30 2680010M02 HEATSINK, Mid-Power Amplifier (PA)
31 3280088M01 GASKET, Accessory Connector
32 4280016M03 CLIP, Accessory Connector
33 0400132718 LOCKWASHER, Internal Tooth
34 0280142M01 NUT, Hex, 7/16"
35 0400131974 WASHER, Flat
36 0380043L01 SCREW, Metric 3.0 x 10 (Qty. 4)
37 3280015M01 GASKET, Power Connector
38 0980272N02 CONNECTOR, Power
39 0380077M06 SCREW, Hex Socket (Qty 2)
40 4280264M02 CLIP, PA Coax
41 4280192N01 CLIP, Coax
42 3280053P01 GASKET, Heatsink
43 3080261M04 CABLE, Mini (includes items 33 and 34)
44 3280089M02 GASKET, Antenna
45 HLD6066_ or
HLD6032_ or
HLD6022_ or
HLE6049_ or
HLE6062_ or
HLE6043_ or
HLE6044_ or
HLF6077_
KIT, Mid-Power PA Board
(25-50W; VHF Range 1 136-162MHz)
KIT, Mid-Power PA Board
(25-50W; VHF Range 2, 146-174MHz)
KIT, Mid-Power PA Board
(25-50W; VHF Range 2, 146-174MHz)
KIT, Mid-Power PA Board
(20-40W; UHF Range 1, 403-433MHz)
KIT, Mid-Power PA Board
(20-40W; UHF Range 1, 403-433MHz)
KIT, Mid-Power PA Board
(20-40W; UHF Range 3, 450-482MHz)
KIT, Mid-Power PA Board
(20-40W; UHF Range 4, 482-512MHz)
KIT, Mid-Power PA Board (35W; 800 MHz)
46 0480217E01 WASHER, Compression
47 0310911A11 SCREW, Machine 3.5 x 0.5 x 8
48 2680186M01 SHIELD, PA
49 5584300B04 HANDLE
50 1580048N01 Cover, PA Mid-Power
51 0310943J15 SCREW, Tapping 3.5 x 0.6 x 8
NON-REFERENCED ITEMS
3080091M01 CABLE, Speaker
7505295B01 PAD, Crystal
7580094M05 Pad, VF Display Shock (Qty 3)
Note: _ = The latest version kit. When ordering, refer to your
specific kit for this suffix letter.
Table 11-6. Mid-Power (20-40/25-50/35W) Radio Parts List
Item
No.
Motorola
Part No.
Description
