Basic control principles
Control units
30
V1.20170116
30303187-02-EN

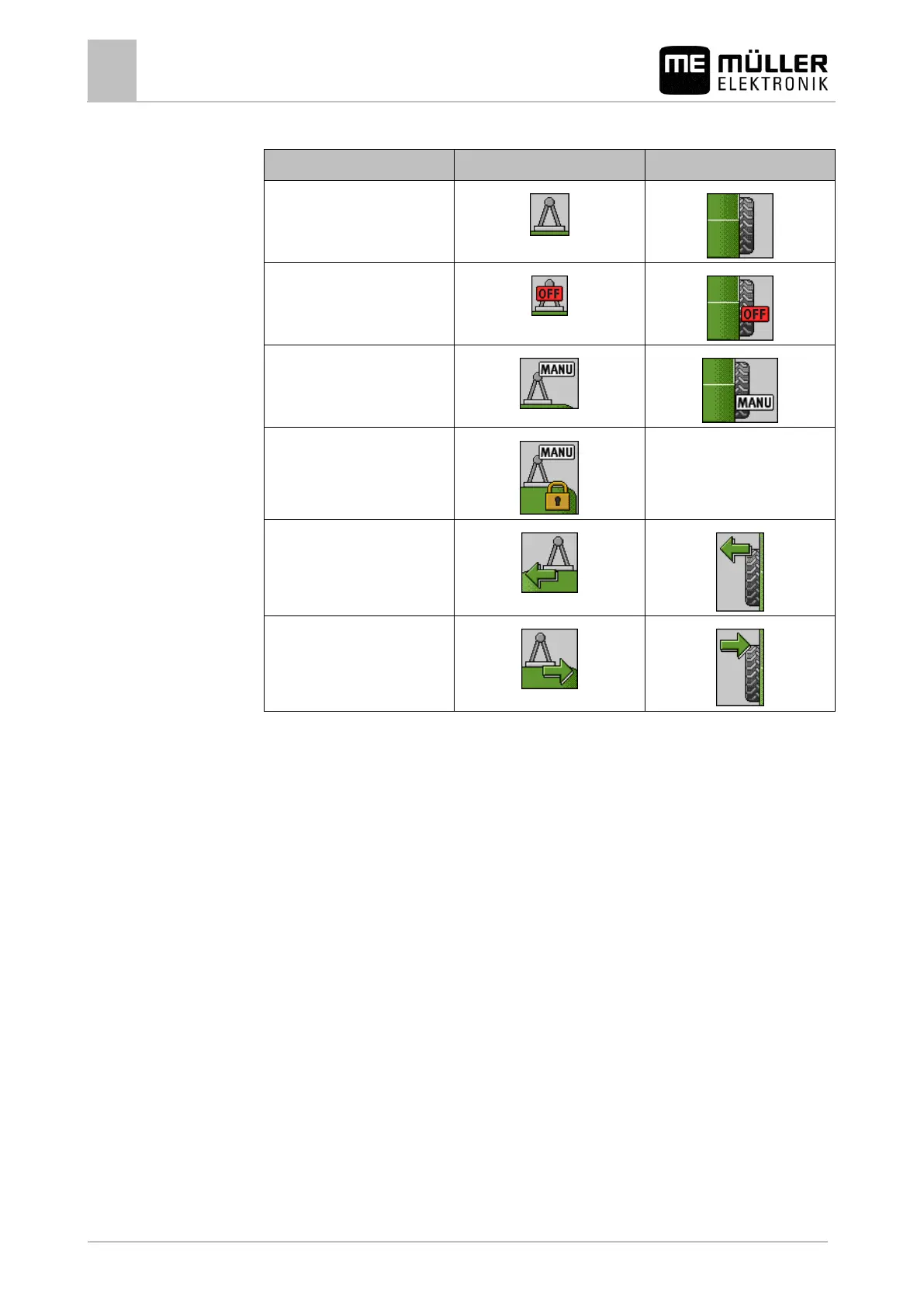

TRAIL-Control
Meaning
Icons for drawbar steering
Icons for axle steering
No TRAIL-Control or TRAIL-
Control in automatic mode.
TRAIL-Control is installed but is
deactivated.
TRAIL-Control is in manual
mode.
The drawbar is locked with a
pin
The implement is steered to the
left.
The implement is steered to the
right.
Control units
The following options are available for operating the job computer:
▪ Using the function buttons on the screen,
▪ Using the ME joystick,
▪ Using the ME S-Box
You can find more information on the configuration and operation in the following sections:
▪ Configuring the control units [➙ 53]
▪ Operating the ME joystick [➙ 46]
▪ Viewing the assignment of the joystick [➙ 47]
▪ Preview mode for the ME Joystick [➙ 47]
