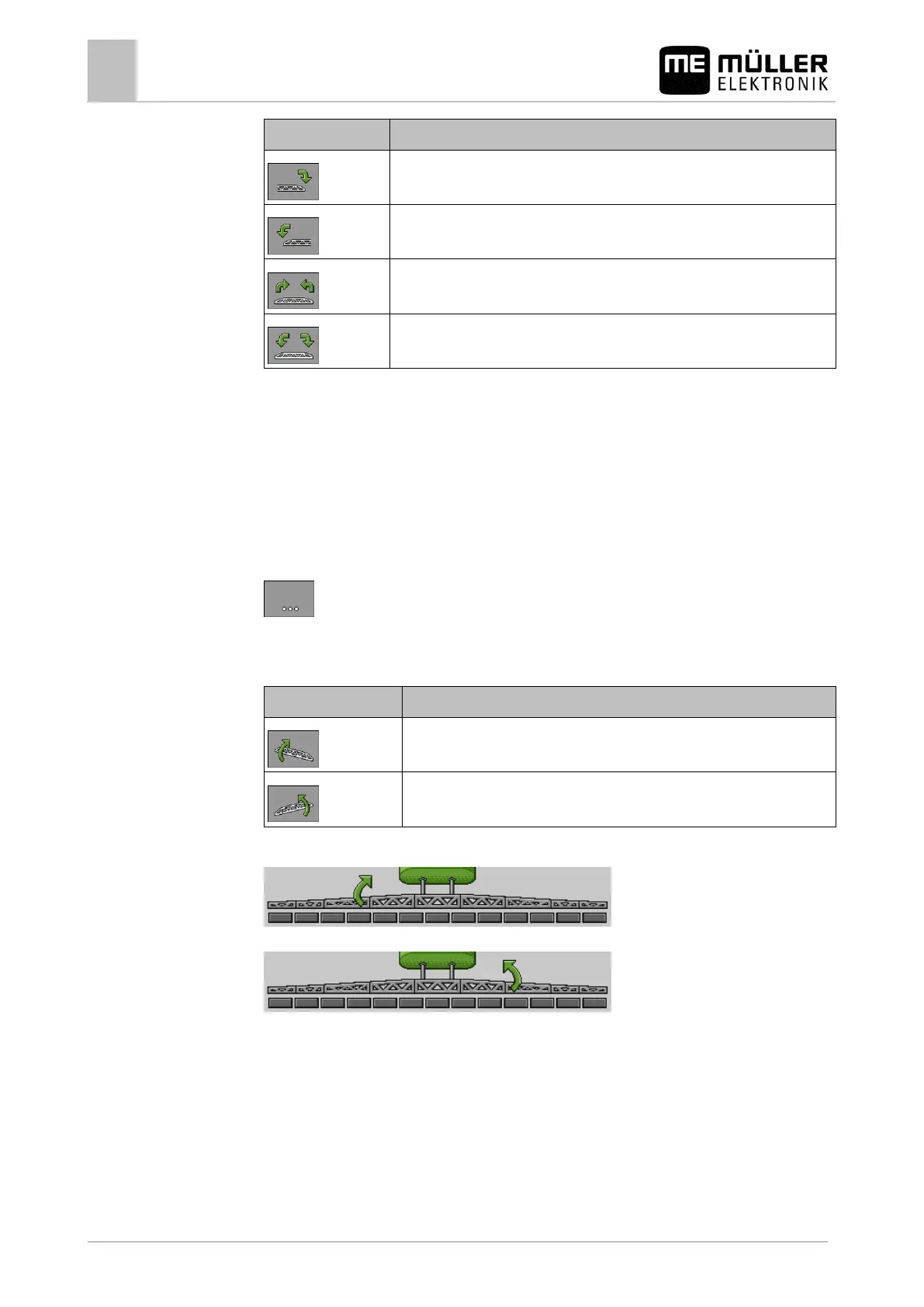

Operating job computer on the field
Controlling the boom
Lowers the right boom side.
Lowers the left boom side.
Raises both boom sides symmetrically.
Lowers both boom sides symmetrically.
1. Press the function key with the desired function.
⇨ The boom sides will be moved.
2. Keep function button pressed until the boom reaches the desired angle.
3. Release function key.
Sloping the boom
This is how you reach the screen with this function:
To operate this function the user needs the ME joystick first of all.
Use the following function keys to operate the function:
Slopes the boom to the right. It will be raised on the left.
Slopes the boom to the left. It will be raised on the right.
On the following diagram you see how this function is shown on the work screen:
Slope boom: raise on the left, lower on the right
Slope boom: lower on the left, raise on the right
Reproducing the boom slope when turning
This function assists you when working on slopes.
The boom is sloped when working on a hillside. The function saves the angle of slope.
After a turning manoeuvre, the angle of slope is reproduced when the field sprayer is travelling in the
opposite direction.
