SECTION 3 -- FIELD OPERATION
3--91

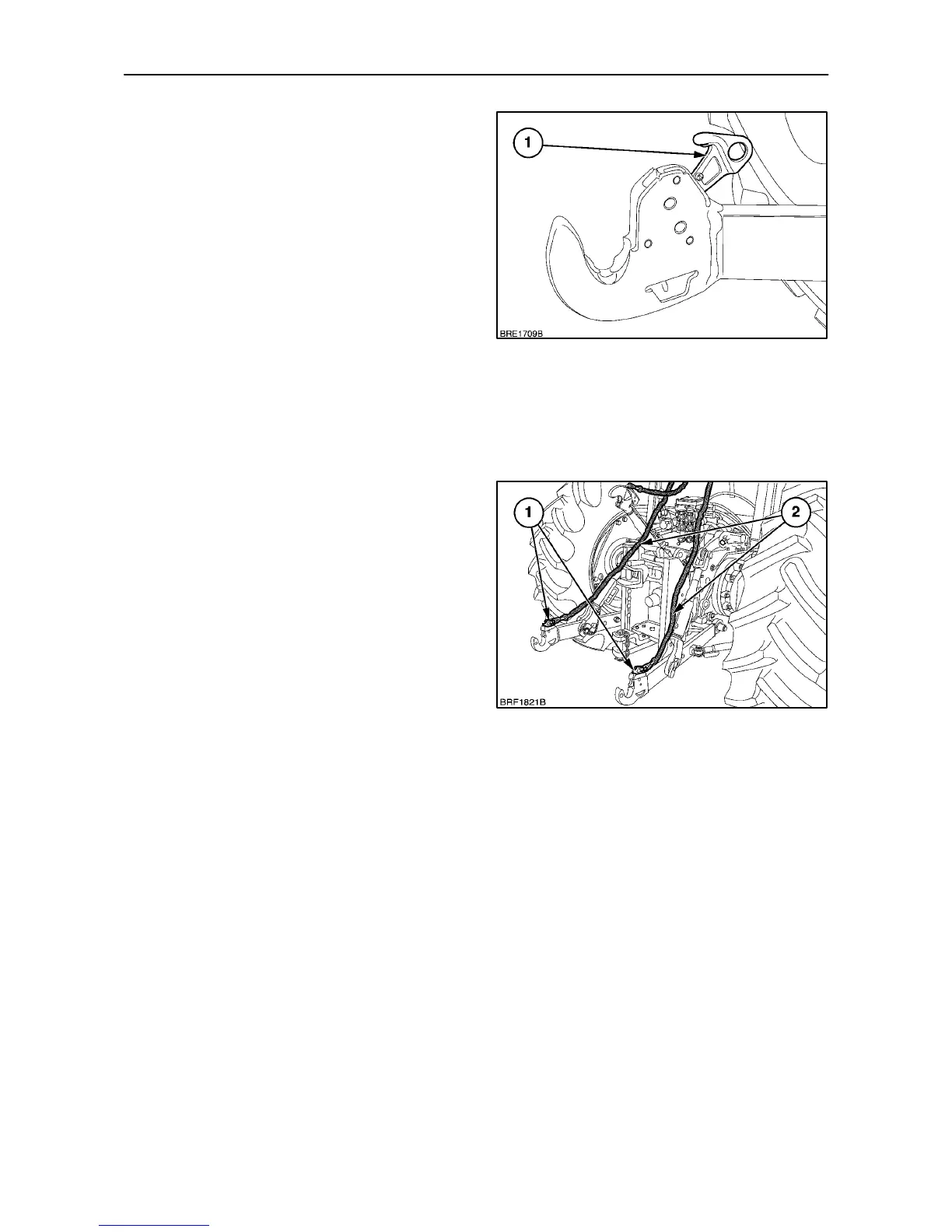

Place the top link in the transport position. With the
lower links fully lowered and the self-locking latches
(1) in the open position as shown, reverse the tractor
until the lower link claw couplers are beneath the
implement hitch pins. The combination of large claw
openings and the guides on the implement
ball-bushes make accurate alignment of tractor to
implement unnecessary.
Raise the lower links using the hydraulic lift lever until
the claw couplers engage the ball-bushes. An
audible click will be heard as the self-locking latches
engage the implement ball-bushes. Lower the top
link claw onto the upper implement ball-bush and
press down until the latch is heard to engage.
Increase or decrease top link length, as necessary.
The implement supports, where fitted, may now be
removed or retracted and the implement supported
on the 3-point linkage.
156
Uncoupling Implement from Tractor
Using the hydraulic lift control lever, fully lower the
implement to the ground ensuring that it cannot fall
when disconnected from the tractor. Use the
implement supports (where fitted).
Pull the release cable on the top link to release the
claw from the implement hitch.
Pull the release cable (2), on both lower links. The
lever will lock in position with the latch (1) retracted.
This will allow the links to clear the ball-bushings on
the implement lower hitch pins when the links are
lowered fully. Fully lower the lower links and drive the
tractor forward, clear of the implement.
NOTE: Ensure the release cables do not foul wheels,
or moving parts of the hydraulic linkage or
implement. When not in use, secure the cables to the
rubber strap on the rear right-hand side of the cab
frame.
