INDICATOR AND WARNING LIGHTS
The coloured indicator lights provide operating
information or give warning of system malfunction.
Illumination of a warning light may be accompanied
by an audible alarm. Refer to Alarm Functions on
page 2--46

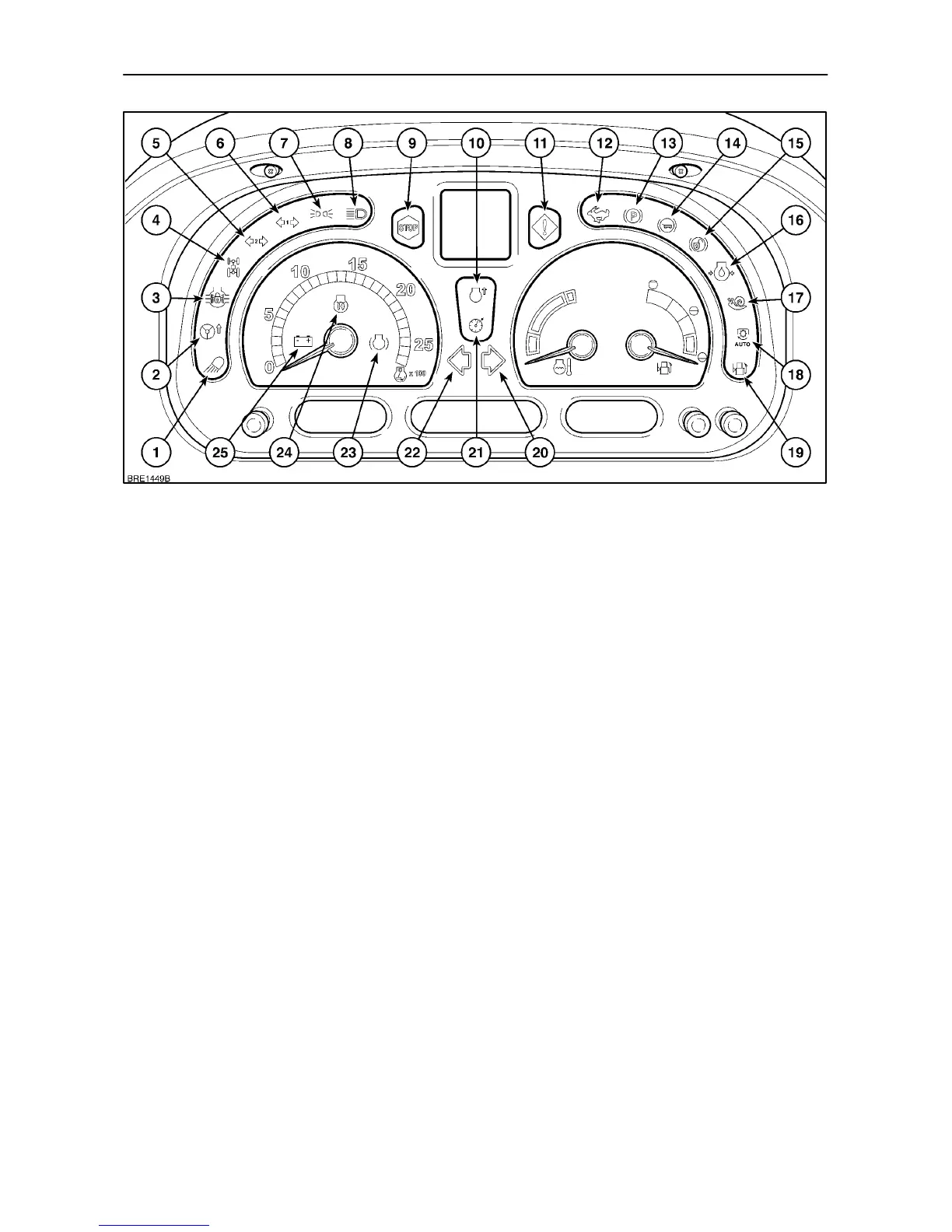

Indicator and Warning Lights
NOTE: All indicator and warning lights will illuminate
for a short period at ’key--on’ as the electrical
systems carry out a self diagnostic check.
1. Not used.
2. Fast Steer -- Light will illuminate when fast steer
function is activated.
3. Differential lock -- Light will illuminate when the
differential lock is engaged.
4. Four wheel drive -- Light will illuminate when the
drive to the front wheels is engaged.
5. Trailer turn signal -- Light will flash with
tractor/trailer turn signals when a second trailer
is attached.
6. Trailer turn signal -- Light will flash with
tractor/trailer turn signals when a trailer is
attached
7. Parking lights -- Light will illuminate when the
tractor lights are switched on.
8. Headlight high beam -- Light will illuminate when
the tractor lights are switched to high beam.
9. Red Stop light -- If Stop light comes on stop the
tractor immediately and investigate the cause. A
warning symbol will appear in the Dot Matrix
Display to confirm the location of the fault.
