SECTION 2 -- CONTROLS, INSTRUMENTS AND OPERATION
2--22

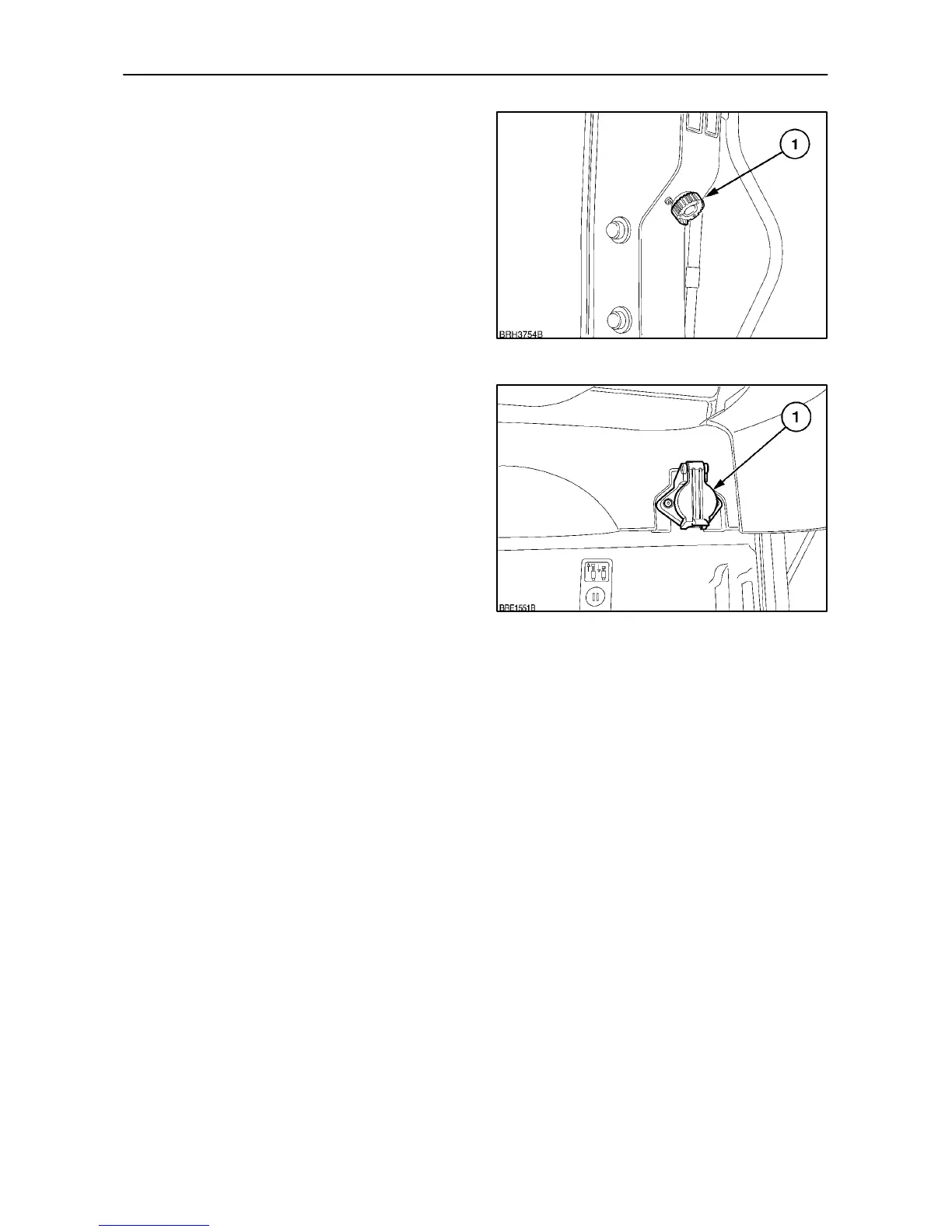

Diagnostic Socket
IMPORTANT: The multi--pin socket (1) on the cab ’C’
pillar is for use by an authorised dealer for connecting
diagnostic equipment to the tractor electronic
circuits. DO NOT attempt to connect any user
electronic equipment to this socket or damage may
be caused to the tractor electronic systems or control
units.
37
EXTERNAL POWER CONNECTORS
Four Pin Implement Socket
A 4-pin, 40 amp socket (1) is standard on all tractors
with cab. (See Section 7 for adaptor cable).
NOTE: The 4-pin socket provides power up to 40
amps. However, operator’s should be aware that the
screw terminals (4) Figure 34, share the same 40
amp fuse. The combined output of the 4-pin socket
and the screw terminals is, therefore, limited to 40
amps.
