FRONT WHEEL TRACK ADJUSTMENT
(four wheel drive)
Front Axle with Variable Track Front Wheels

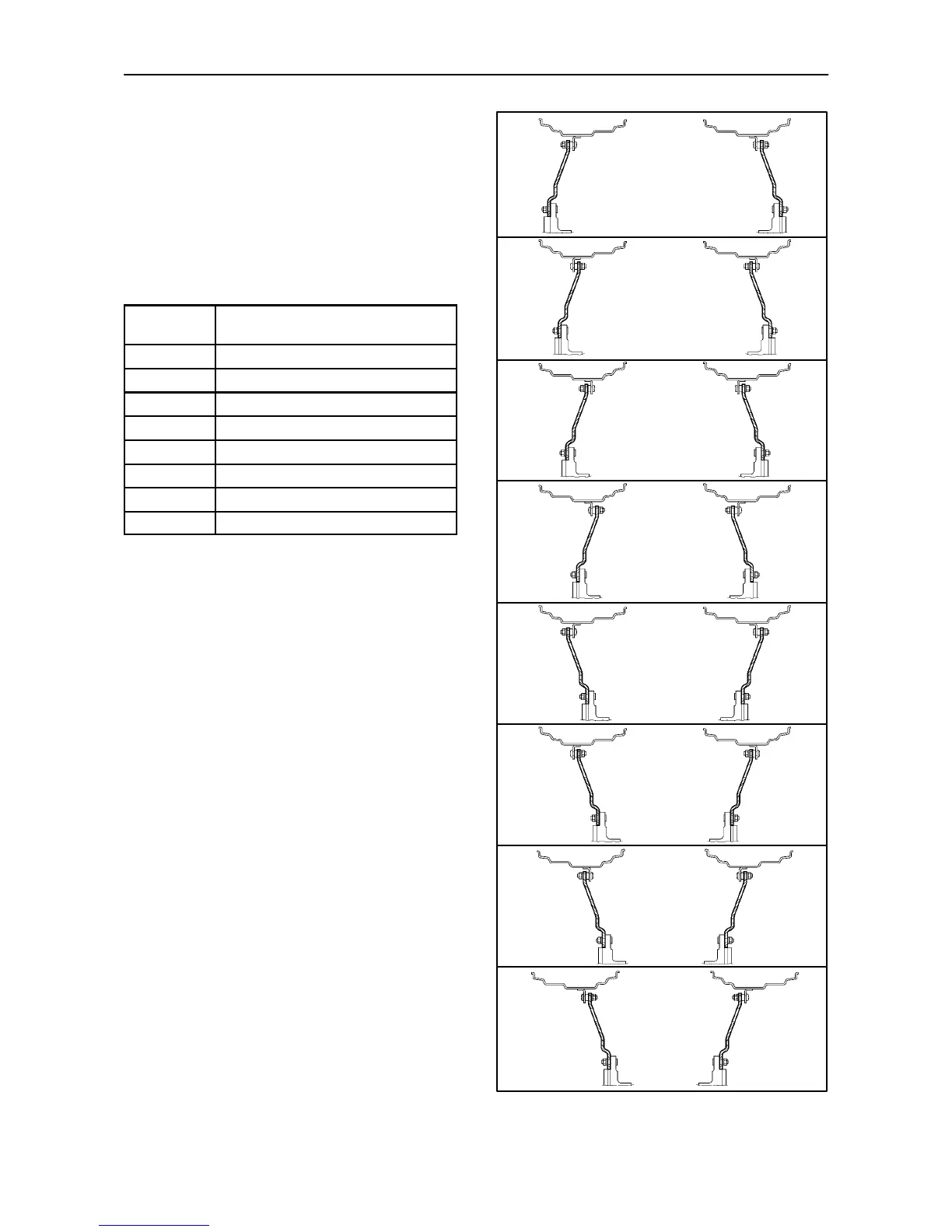

The sectioned drawings illustrate the wheel rim and
disc positions relative to the hub at various track
settings. The track widths available are as follows:
T rack settings with 24” and 28” front wheels
Position
(Figure 214)
Track Width
A 1566 mm (61.6 in.)
B 1662 mm (65.4 in.)
C 1766 mm (69.5 in.)
D 1862 mm (73.3 in.)
E 1966 mm (77.4 in.)
F 2062 mm (81.1 in.)
G 2166 mm (85.2 in.)
H 2262 mm (89.0 in.)
The track widths in the above table are based on a
tractor fitted with a Standard 4WD front axle.
With front axle Suspension, add 18mm (0.7 in.).
With SuperSteer front axle, add 18mm (0.7 in.).
NOTE: The track widths in the table above are
nominal and may vary by up to 25 mm (1 in.)
dependent upon tyre size.
IMPORTANT: With optional Dynamic fenders fitted,
narrower track settings may not be attainable due to
insufficient clearance between the tyre or rim and
any part of the fender or attaching hardware.
IMPORTANT: If your tractor is equipped with front
fenders, ensure there is adequate clearance
between fender and wheel under all operating
conditions. With the smaller track settings a foul
condition may occur between the tyre or fender and
the tractor when the wheels are turned to the full lock
position particularly when the axle is fully articulated.
To avoid this condition, adjust the fenders and/or
steering stops.
