SECTION 2 -- CONTROLS, INSTRUMENTS AND OPERATION
2--25
SEATS
The seat installed on your tractor has a
comprehensive range of adjustments. Before
operating the tractor, it is important to adjust the seat
to the most comfortable position. See the following
text and appropriate illustration to identify the seat
installed in your tractor .
The seats shown have weight indicators registering
in kilos. A conversion chart from kg to lb is provided
for your convenience.
50 kg = 110 lb 90 kg = 198 lb
60 kg = 132 lb 100 kg = 220 lb
70 kg = 154 lb 110 kg = 245 lb
80 kg = 176 lb 120 kg = 265 lb
Standard Mechanical Seat (where fitted)

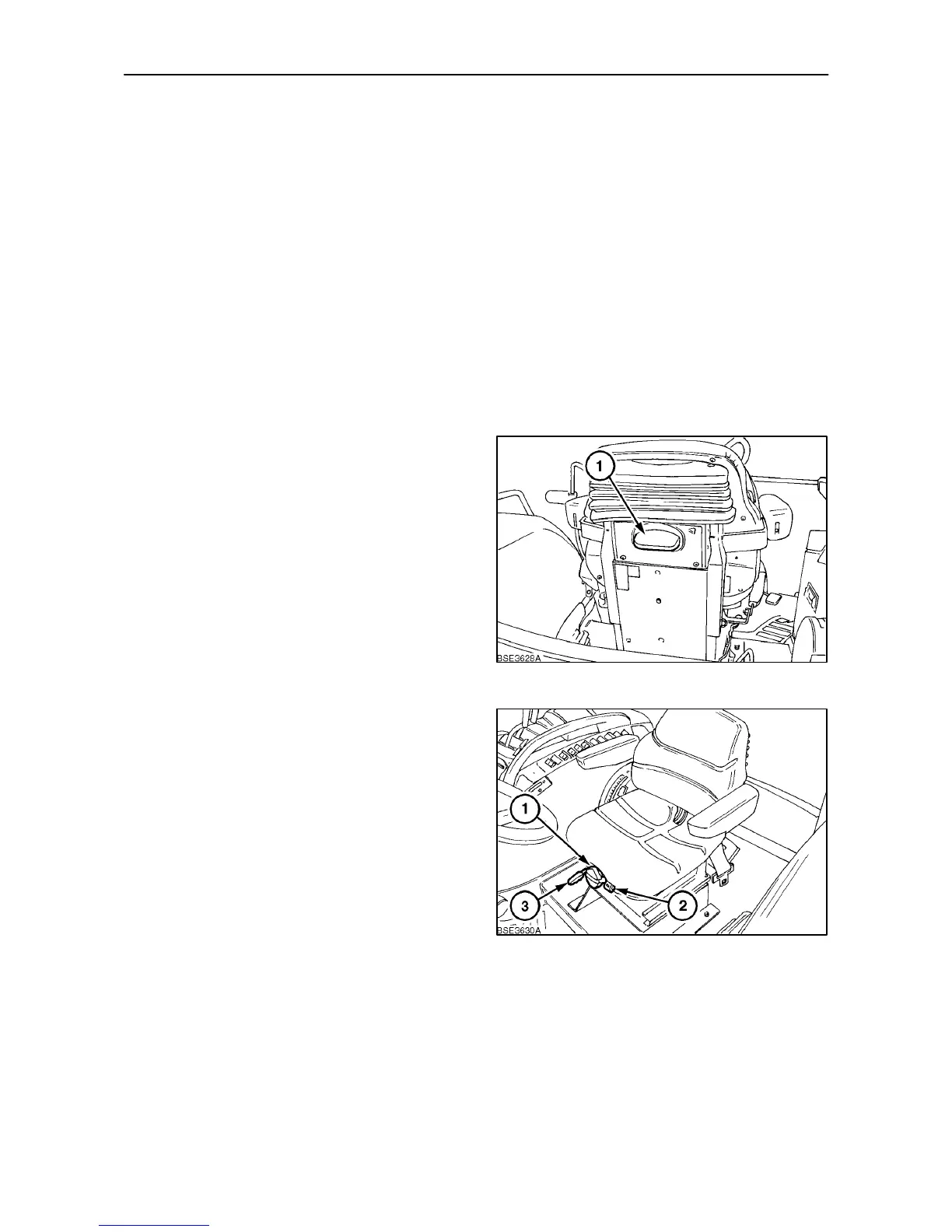

Seat height is adjustable in four positions. A release
handle (1), is located centrally, on the back of the
seat. Lift the release handle with one hand and lift or
lower the seat with the other. The seat will lock at the
selected height when the handle is released.
The suspension is adjusted by means of a folding
crank handle (1) Figure 45, on the front of the seat
frame. Sit in the seat and turn the handle until your
approximate weight, in kilos, is indicated in the
window (2).
44
The lever (3) controls seat travel. Lift the lever and
slide the seat forward or backward, as required.
When the lever is released, the seat will lock in the
position selected.
Folding armrests are provided. If not required, the
armrests may be raised to the vertical position.
45
