SECTION 4 -- LUBRICATION AND MAINTENANCE
4--69

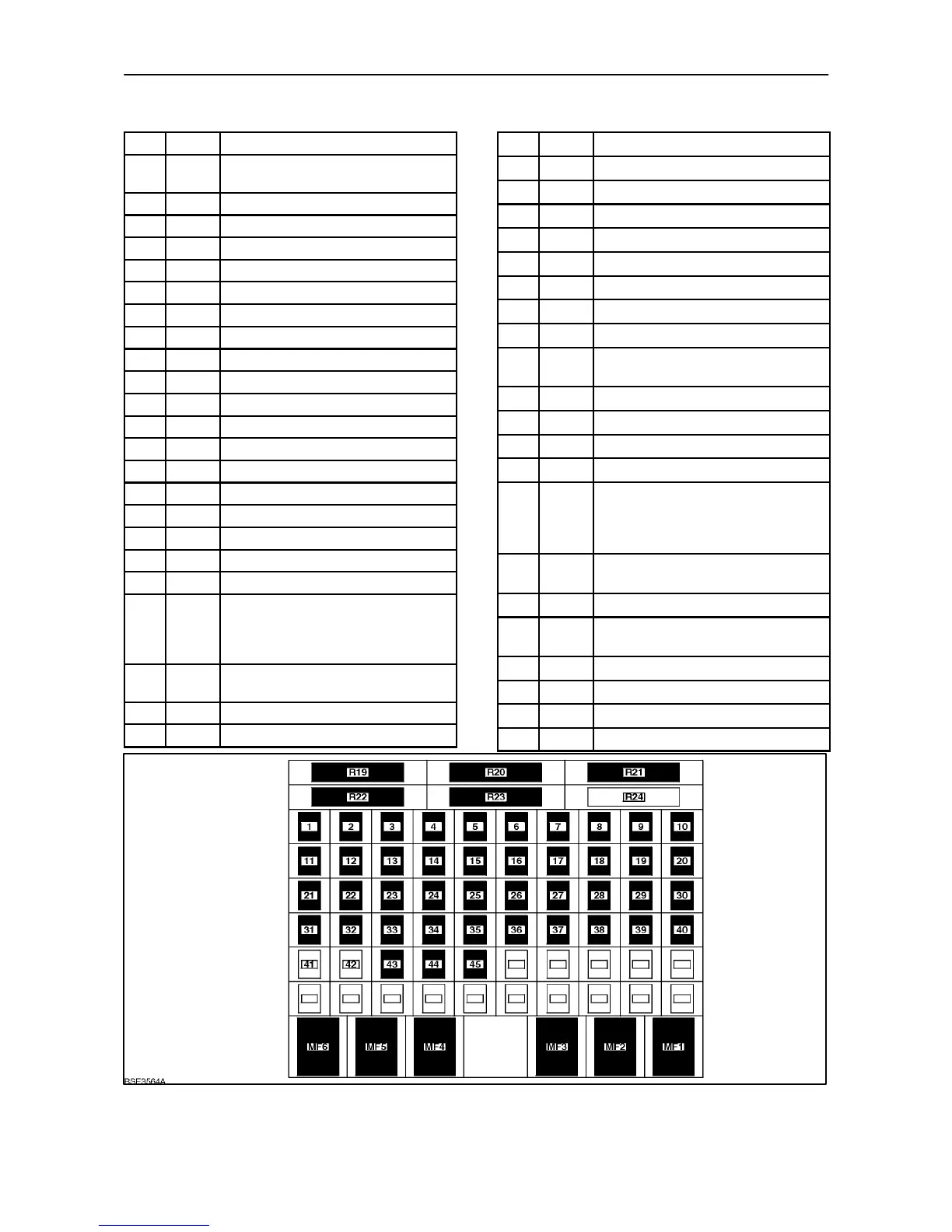

Mini Fuses 16x16 and 24x24 -- With Cab
No. Amps Circuit
1 10 Interior and Courtesy Lights +
Handbrake Lamp
2 25 Cigar Lighter + Power Studs
3 10 A/C Clutch
4 10 Accessory Sockets
5 30 Blower Motor
6 10 Radio KAM + Worklamp ECU
7 20 Main Lights + Hazard Switc h
8 20 Starter Switch
9 25 Loader
10 -- Blank
11 10 Front and Rear Windscreen Wiper
12 -- Wiper Switch and Rear Wiper Park
13 10 Stoplamps
14 15 Main Light Switch + Flasher Unit
15 20 Stoplamp Switch + Pedal Latch
16 15 Trailer Brake
17 25 Accessory Sockets
18 15 Blower Motor + Seat
19 -- Blank
20 10 Radar Socket + Transmission
Diagnostic Socket + Auxiliary
Diagnostic Socket + ADIC KeyPad
+ Radar + BackUp Alarm
21 10 Grid Heater + Water In Fuel
Sensor + Brake Fluid Level Switch
22 15 Sidelamps RH
23 15 Sidelamps LH
24 10 Illumination
25 15 Dip Beam Headlamps
26 15 Main Beam Headlamps
27 15 Front Worklamps (Hood)
28 15 ECU Worklamp
29 30 ECU Worklamp
30 15 Rear Lower Worklamps
31 15 ECU Worklamp
32 30 Flasher Unit
33 25 Diagnostic C onnec tor + Engine
ECU
34 10 Instrument Cluster B+
35 10 DC Mem + SCM + ACM
36 10 Instrument Cluster Ignition
37 15 Transmission Ignition
38 10 Rear PTO Switch + Rear PTO
Lamp + HPL + SCM + Ground
Speed PTO + Display Of Gears
Connector
39 10 HPL + Seat + Armrest + EDC +
EHR Levers (16 x 16 Only)
40 10 Radio
41 15 Front Suspens ion and PTO + EHR
Levers (16 x !6 Only)
42 10 Front Suspens ion
43 10 Starter Switch (Run pos ition)
44 25 Front Implement Power Socket
45 25 Front Ignition + 8 Amp Socket
137
