3 - 35
3 Specifications
OMNUC G5-series (Pulse-train Input Type) AC Servomotors and Servo Drives User’s Manual
3-2 Overload Characteristics (Electronic Thermal
Function)
3
3-2-1 Overload Characteristics Graphs
3-2 Overload Characteristics
(Electronic Thermal Function)
An overload protection function (electronic thermal) is built into the Servo Drive to protect the Servo
Drive and Servomotor from overloading.
If an overload occurs, first eliminate the cause of the overload and then wait at least 1 minute for the
motor temperature to drop before turning ON the power again.
If the alarm reset operation is repeated at short intervals, the motor windings may burn out.

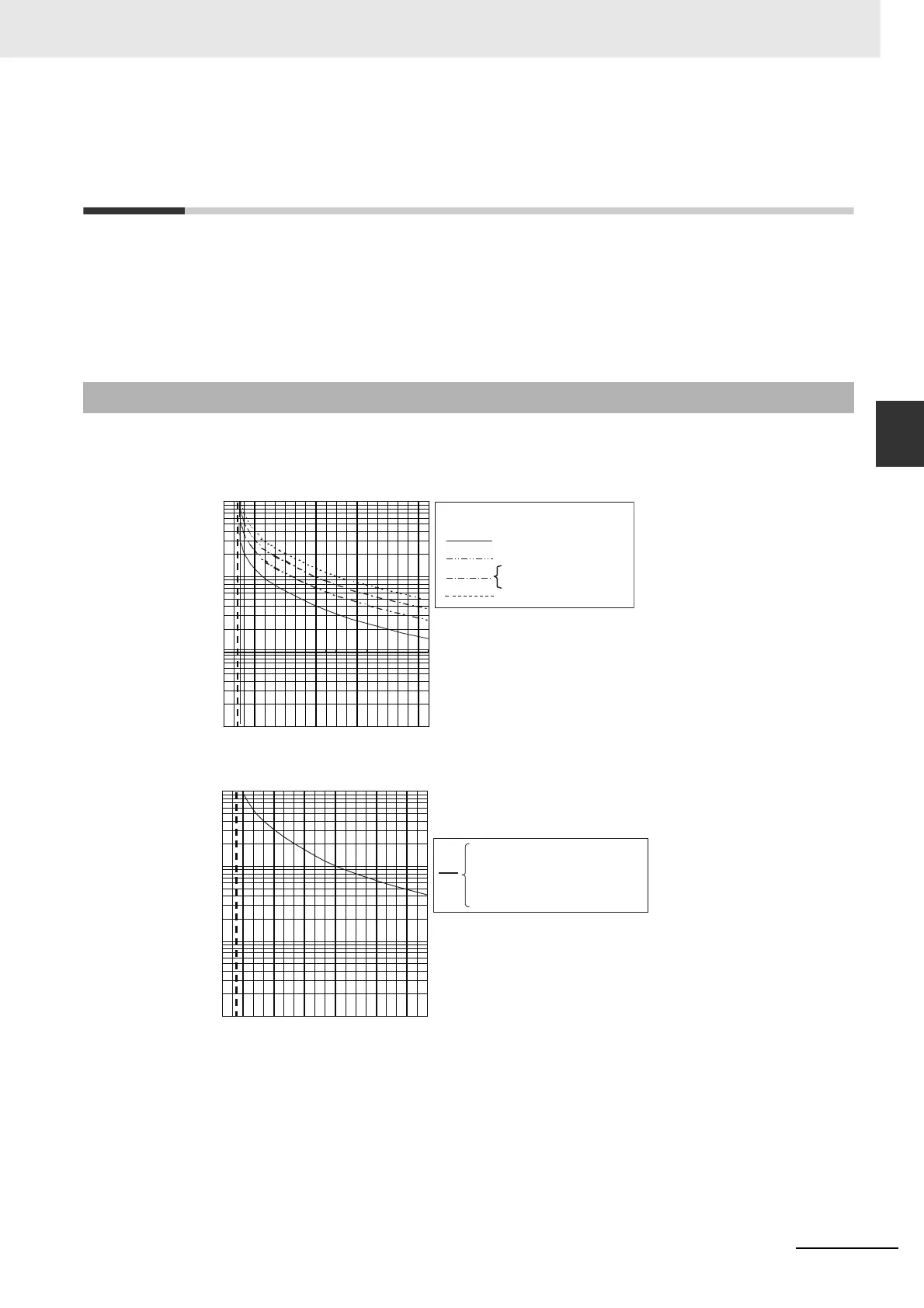

The following characteristics graphs show the relationship between the load ratio and electronic thermal
function’s operation time.
3-2-1 Overload Characteristics Graphs
0.1
1
10
100
50 W
100 W
200 W
400 W
750 W
[200 V]
3,000-r/min Servomotors, 50 to 750 W
115
100 150 200 250 300
Time [s]
Load ratio [%]
100
115
0.1
1
10
100
150 200 250 300
[200 V]
3,000-r/min Servomotors, 1 to 5 kW
2000-r/min Servomotors
1000-r/min Servomotors
Time [s]
Load ratio [%]
