LD Cart Transporter User's Guide, 14766-000 Rev B
Page 110 of 190
Chapter 7: Operator Interface

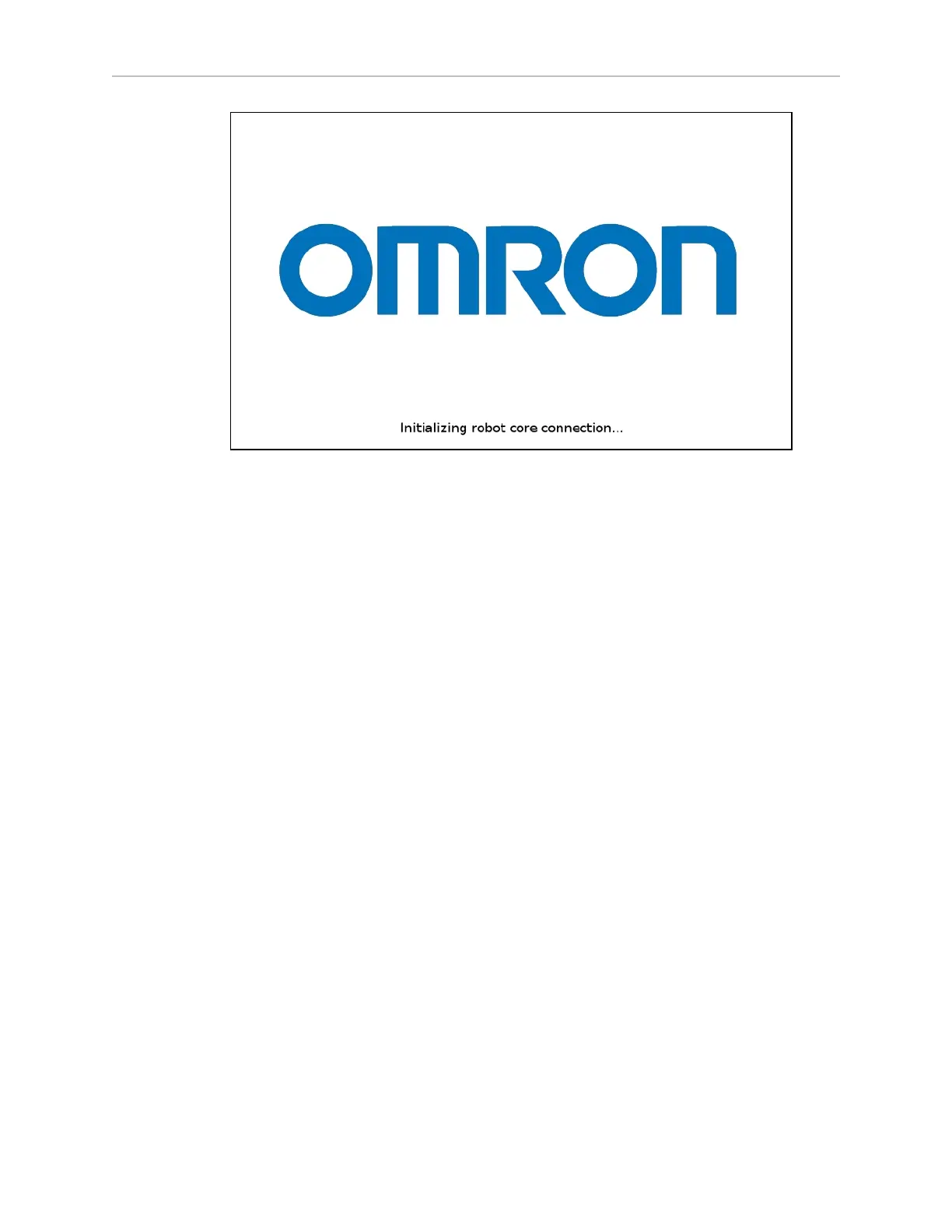

Figure 7-2. Screen Initialization Status Display
After initialization, either the Choose Dropoff or Patrol Route screen will be displayed.
Touchscreen Configuration
The behavior of the touchscreen is highly configurable. See Configuring a Touchscreen on page
65.
Screen Top Bar
The top of the screen shows basic robot information. This includes a bar graph indicating the
WiFi signal strength, the name of the robot, and the battery state of charge. If the robot is con-
nected to an Enterprise Manager 1100, it will also be specified here.
Left Screen Pane
The screen logo is displayed in the upper part of the left pane. This doesn’t change, regardless
of the mode you are in. See Screen Logo on page 69.
Below the screen logo, the robot status is displayed, first graphically, and below that, in text.
