Chapter 3: Setup
LD Cart Transporter

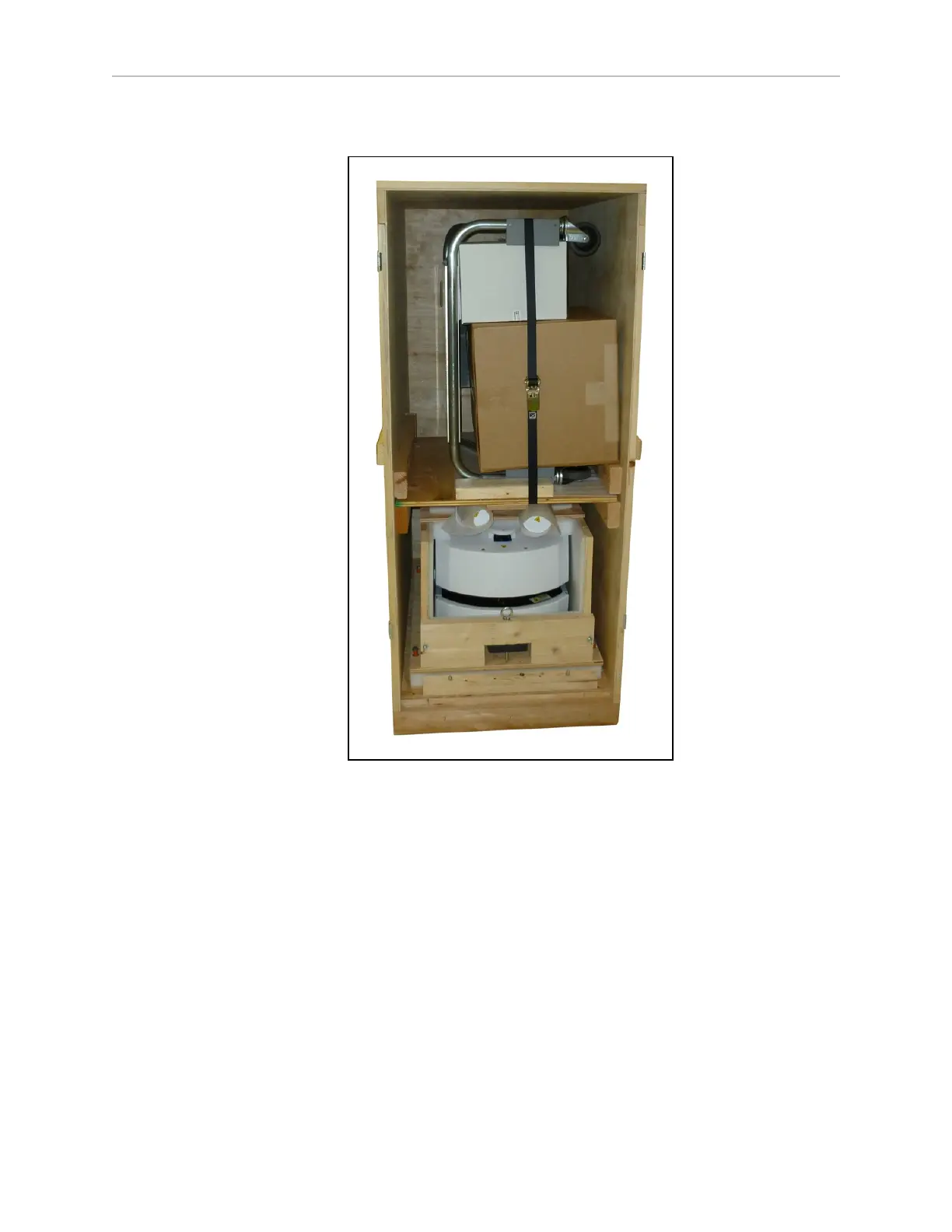

Figure 3-2. Cart and LD Cart Transporter in Crate
The cart crate measures 1156 x 794 x 1759 mm (45.5 x 31.25 x 69.25 in.).
NOTE:The preceding figure includes accessory boxes for Call/Door Boxes.
Removing the Front Panel
The front panel of the transporter crate doubles as a ramp, for rolling the transporter off of the
crate base.
1.
Release the latches that hold the front panel to the crate.
There are four spring-loaded latches.
