Chapter 10: Maintenance
Laser
Labels
LATCH,
UNLATCH
Labels
Pinch
Hazard
Label
Laser
Labels
Magnetic
Field
Labels
ON,
OFF,
BRAKE
Labels
E-Stop Button
Hand-
Entanglement
Label (under
cover)
No Ride
and No
Incline
Labels
(Underside
of Platform)

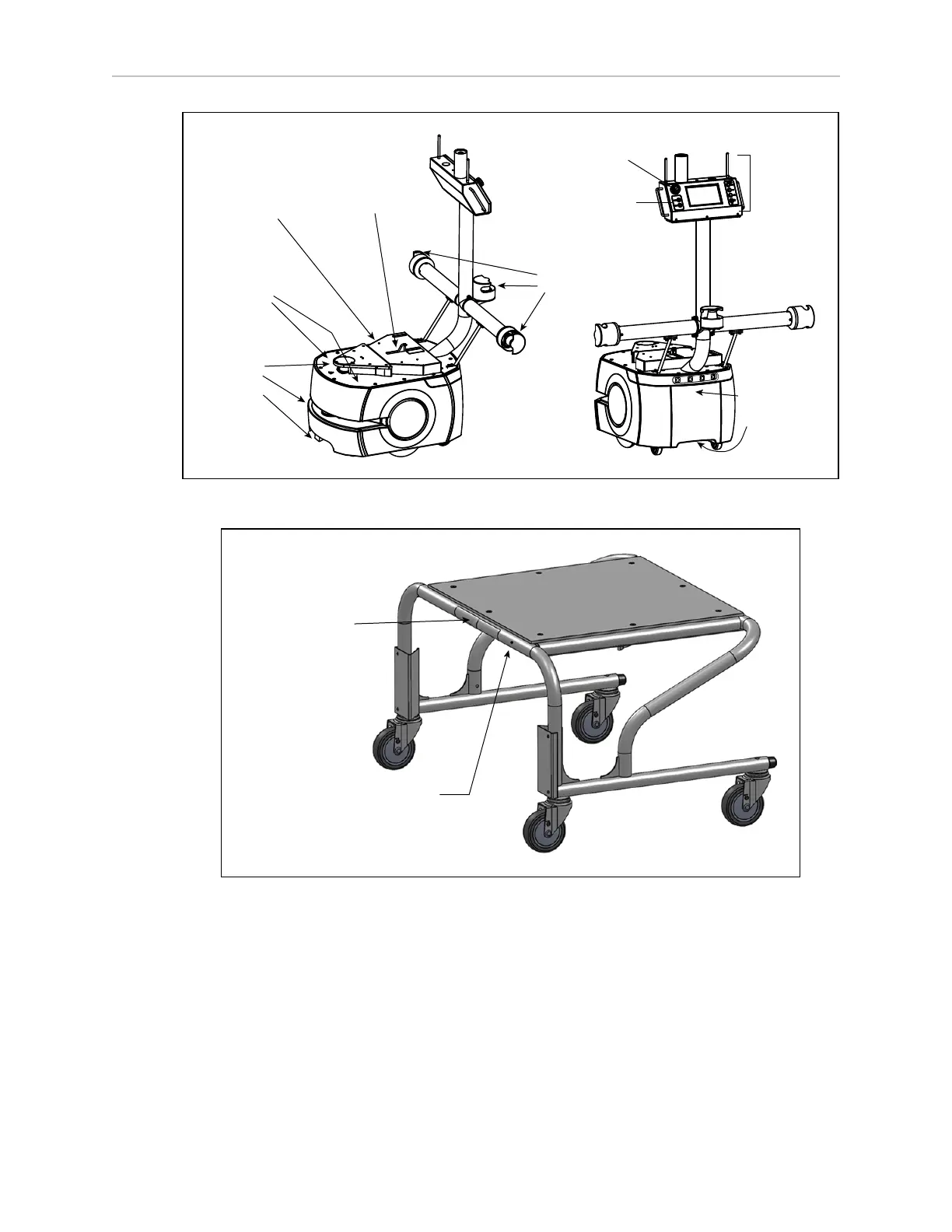

Figure 10-6. Locations of Labels on LD Cart Transporter
Ø
0.25 Pass-through hole for brake
cable, through rear frame tube
Magnetic
Field and
No-ride
Labels
Figure 10-7. Magnetic Field/Pacemaker, No Riding Labels on Cart
10.4 Cleaning
Work Area Maintenance
The work area of the AIVs must be kept generally clean and free from clutter that could block
an AIV.
Anything spilled on the floor of the work area, such as dust, ice, pooled water, etc., must be
removed immediately, as this would interfere with the AIV’s ability to drive safely, as well as
