Omron LD User Manual

LD Cart Transporter User's Guide, 14766-000 Rev B
Page 184 of 190
Chapter 11: Technical Specifications
591.82 (23.3)
480.06
(18.9)
845.82 (33.3)
(9.23)
(10.00)
(10.00)
(9.23)
(9.23)
254 (10.00)
(10.00)
295.4 (11.63)
8x M6 Threads
Units in mm (in.)
234.44
(9.23)

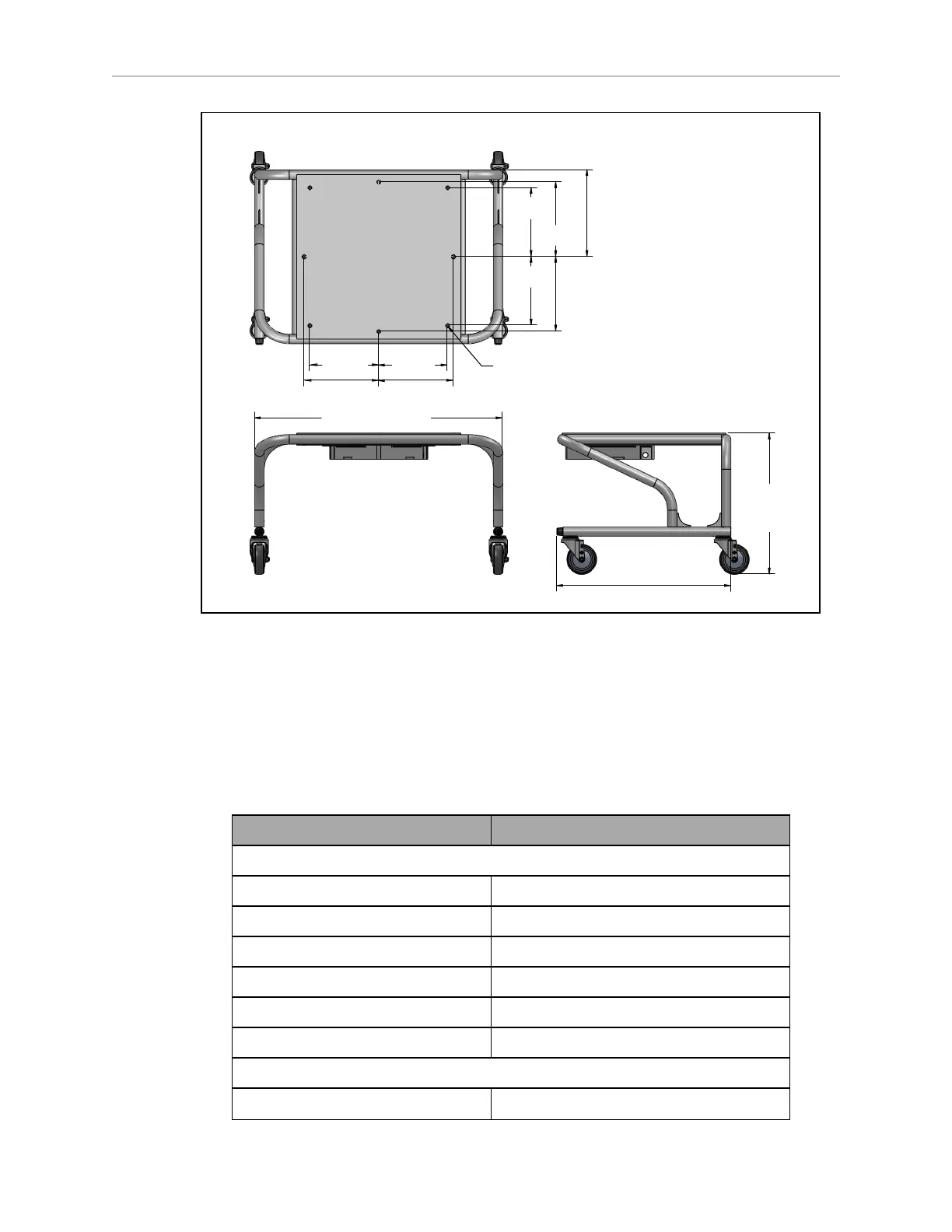

Figure 11-3. Cart Dimensions
If you have a factory-supplied cart, these preceding dimensions show where you will attach
your payload.
11.2 Specifications
LD Cart Transporter Physical
Description Specification
Physical
Length 686 mm (27 in.)
Width (at side lasers) 1143 mm (45.0 in.)
Height (body) 380 mm (15.0 in.)
Overall Height (with HMI post) 1372 mm (54.8 in.)
Weight (with battery) 79 kg (175 lb)
Frame clearance 27 mm (1.1 in.)
Suspension
Drive wheels 2 grey non-marking foam-filled rubber
