LD Cart Transporter User's Guide, 14766-000 Rev B
Page 42 of 190
Chapter 3: Setup
4.
Remove the horizontal board that spans the top of the transporter by removing the two
wing nuts. See Figure 3-6.

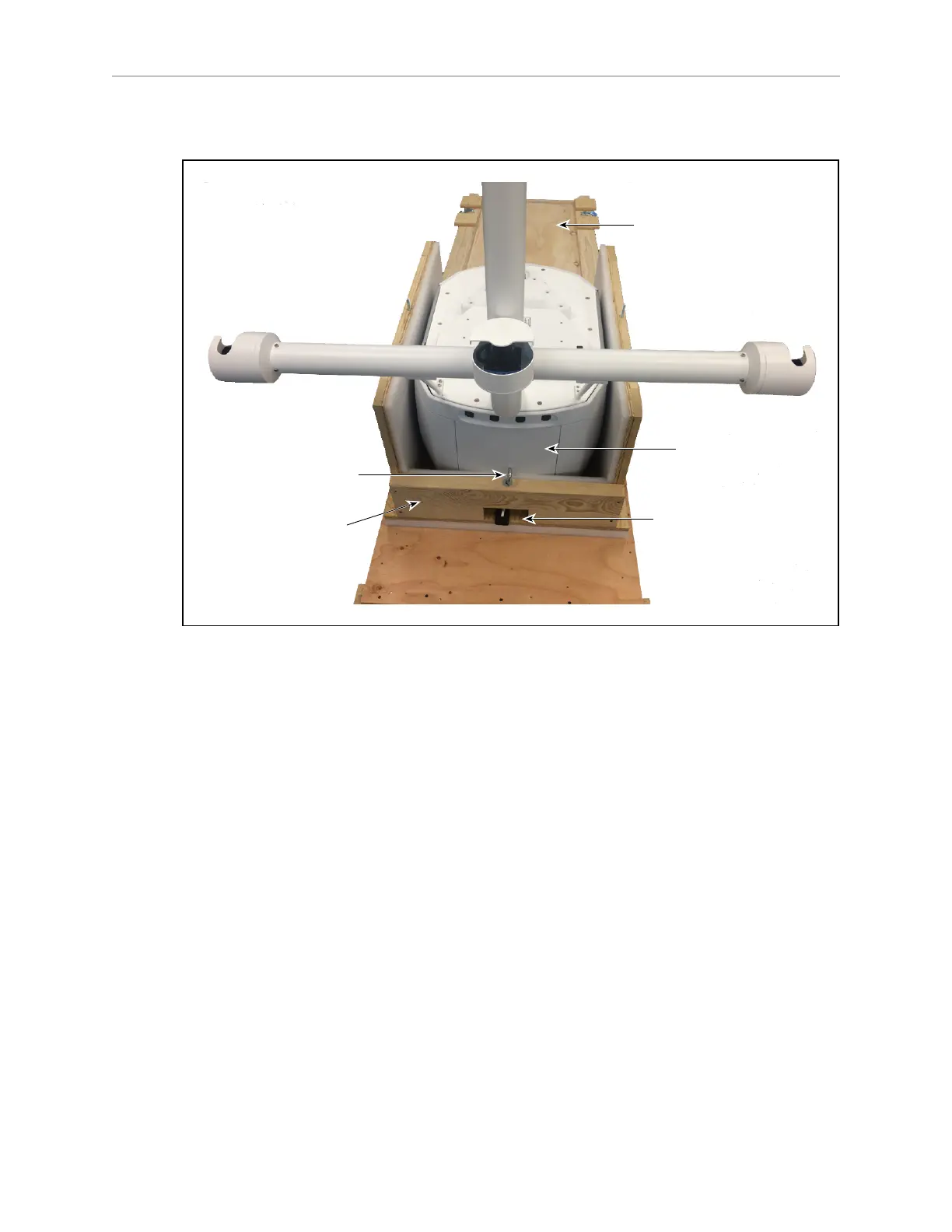

Rear
Brace
Front Panel/
Ramp
Battery
Access
Cover
Eye Bolt
Chassis
Support
Board
Figure 3-10. Side Lasers Installed
Removing the Lower Crate Braces
For the following steps, refer to the preceding figure.
1.
Unscrew the two eye bolts that run vertically down through the front and rear braces, to
lower and ultimately free the chassis support board.
The support board runs between the two transporter drive wheels, and is used to sup-
port the transporter during transit.
2.
Remove the front brace (wing nuts).
3.
Remove the rear brace.
This will expose the platform battery cover, which you will need to remove to install the
battery.
Rolling the LD Cart Transporter off of the Crate Base
1.
Install the crate front onto the crate base, to serve as a ramp.
There are two hanger bolts that stick up out of the front of the crate base. These fit into
two holes in the end of the ramp.
2.
Roll the transporter off of the crate base and down the ramp.
