Omron LD User Manual

LD Cart Transporter User's Guide, 14766-000 Rev B
Page 162 of 190
Chapter 10: Maintenance
Safety Scanning Laser
1.
While supporting the laser, unscrew the two screws and washers from the bracket hold-
ing the laser, to remove the laser from the platform chassis.
Retain these screws and washers for installing the new laser.
2.
Unscrew the four screws holding the black cap on top of the laser.
Retain the four screws and top cap for reassembly.
You will use this top cap on the new laser. Do not unplug it from the platform chassis.
CAUTION: The programming for the laser is contained in the cap. If
you replace the cap, this programming will be lost, and must be restored
by factory personnel.

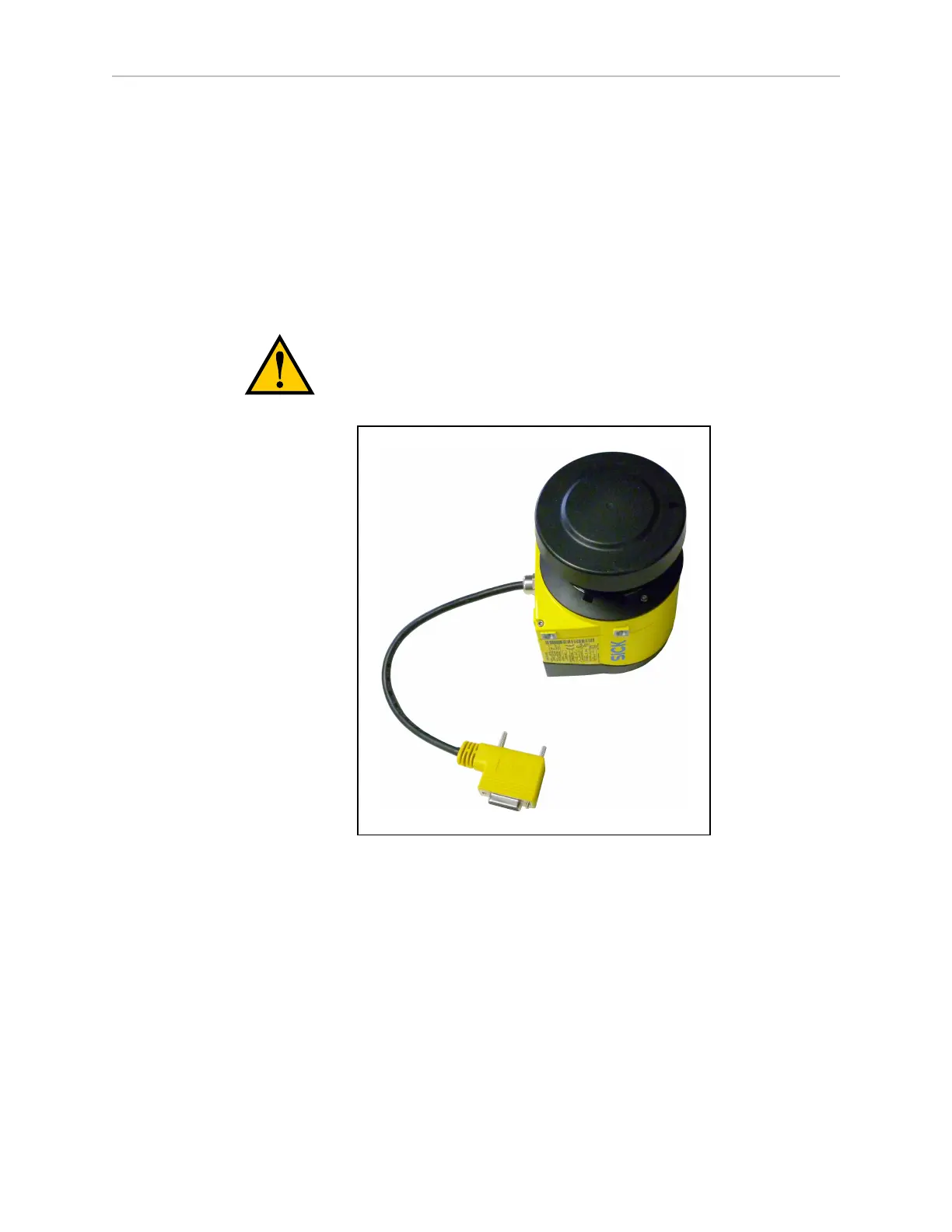

Figure 10-13. Safety Scanning Laser
