LD Cart Transporter User's Guide, 14766-000 Rev B
Page 160 of 190
Chapter 10: Maintenance
b.
Lower the cover down, so its top tab clears the rear outer cover.
2.
Unlatch and open the battery compartment door, at the back of the platform.
The battery compartment door is capable of being locked. You may need to unlock it
before opening.
3.
Disconnect the power and data cables before removing the battery.
See the following figure.

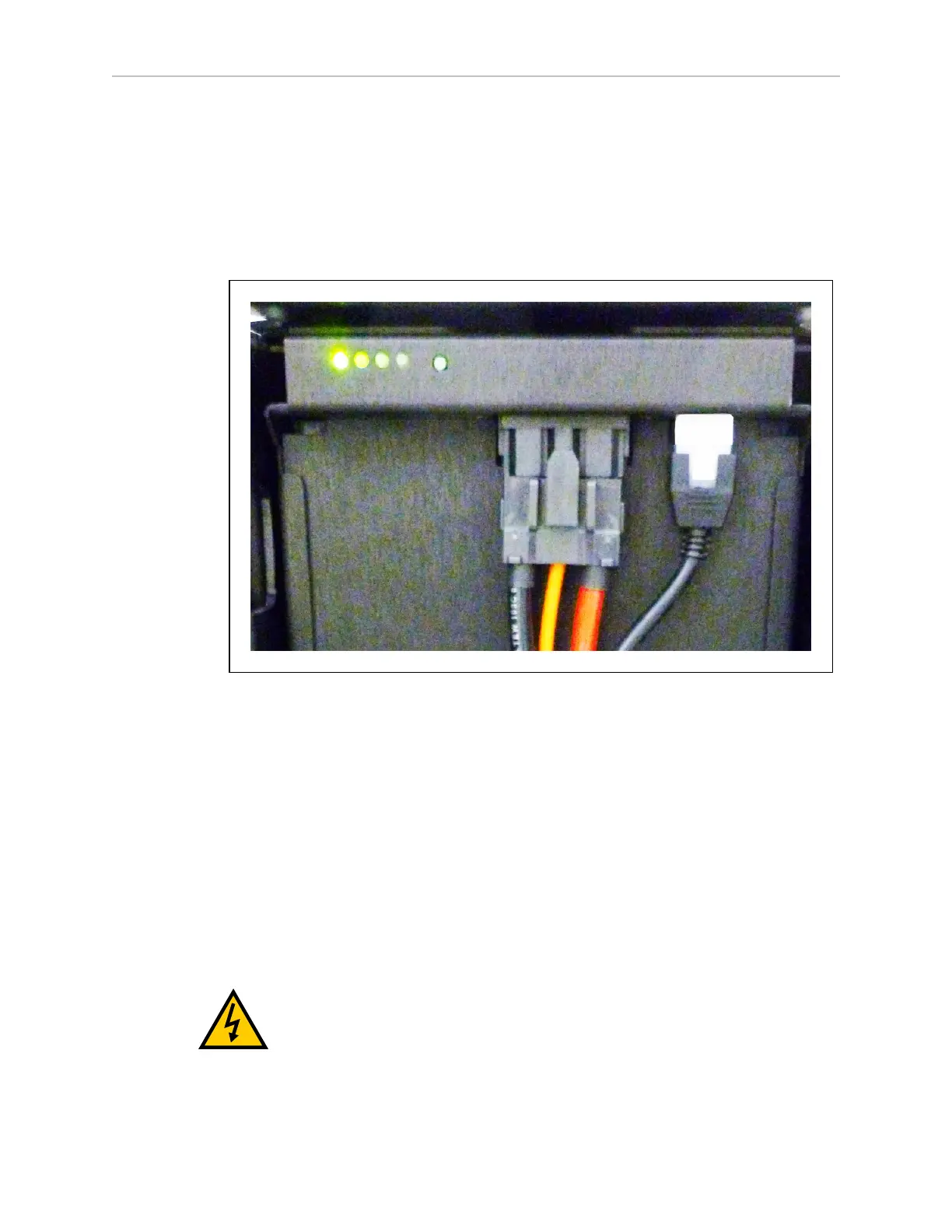

Figure 10-11. Battery Cable Connectors
4.
Slide the battery back and out of the platform.
There is a hand grip at the front and the rear of the battery, to help you lift it.
Installation
Refer to Installing the Battery on page 45 for instructions on installing the battery.
10.8 Replacing Non-Periodic Parts
All of the following parts are replaced on an as-needed basis.
Docking Station Roller and Bearing
WARNING: There are no user-serviceable parts inside the docking station. Do
not remove the covers of the docking station. There is high voltage inside, and
the covers are not interlocked.
