164
Setting Conditions for Communications with Host by Using Memory Switches Section 6-7
6-7-4 Setting the NT Link (1:N) Method (Standard/High-speed)

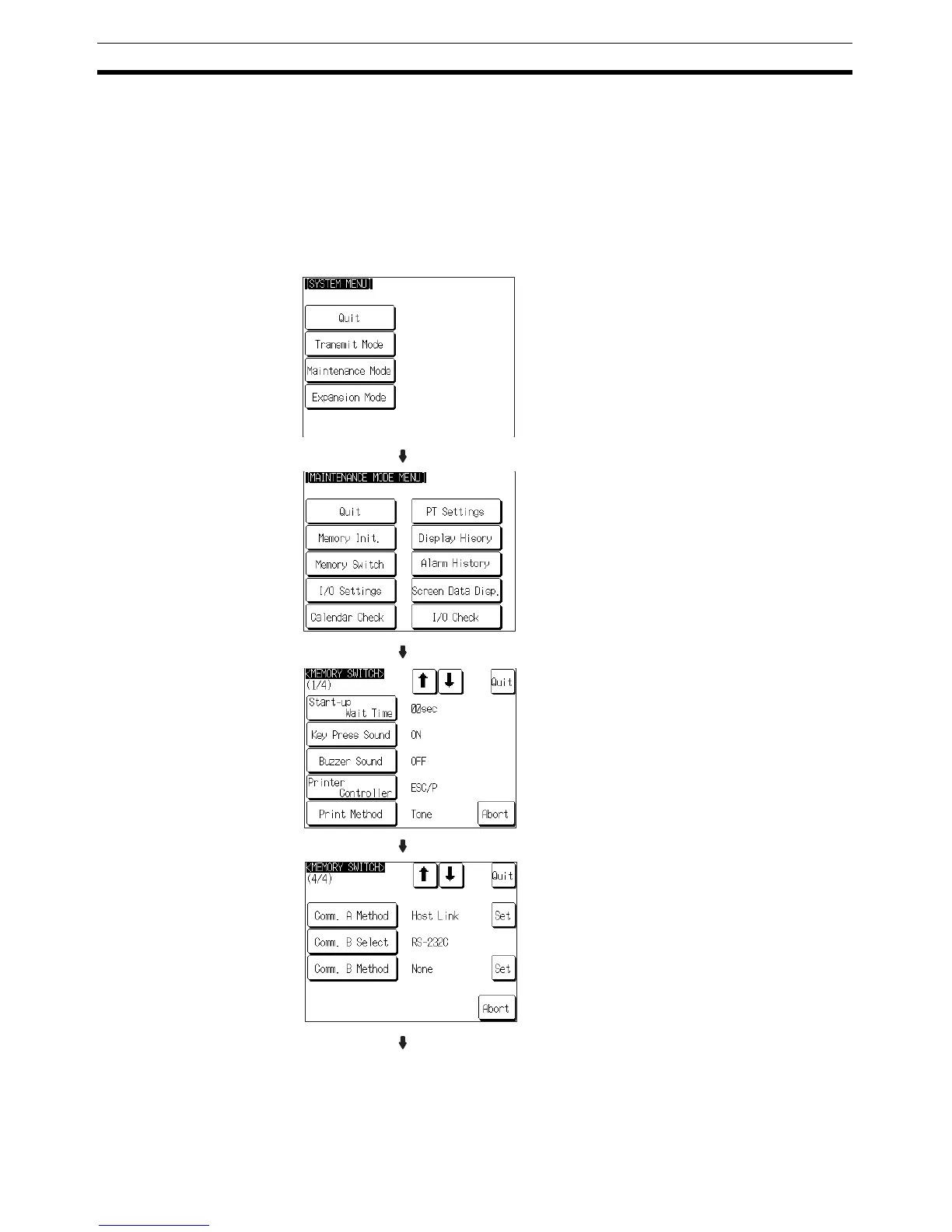

Set the communications conditions for the NT link (1:N) method at serial port
A or serial port B by following the operation from the System Menu shown
below.
The communications speed determines whether the 1:N NT Link is standard
or high-speed.
Standard: Standard 1:N NT Link
High-speed: High-speed 1:N NT Link
Select Maintenance Mode.
Select Memory Switch.
Ver 4.12
Display the fourth memory switch screen by
pressing the [↓] (next screen) or [↑] (previous
screen) touch switch.
Press the touch switch corresponding to the
port at which the NT link (1:N) method
(standard or high-speed) is to be set (Comm.
A Method or Comm. B Method) to display the
setting option NT Link (1:N).
The setting option changes each time the
touch switch is pressed.In this example,
serial port A is used.
To Next Page
