Omron NT31 Setup Manual

35
Connecting a Bar Code Reader Section 3-4
3-4-1 Connection Method

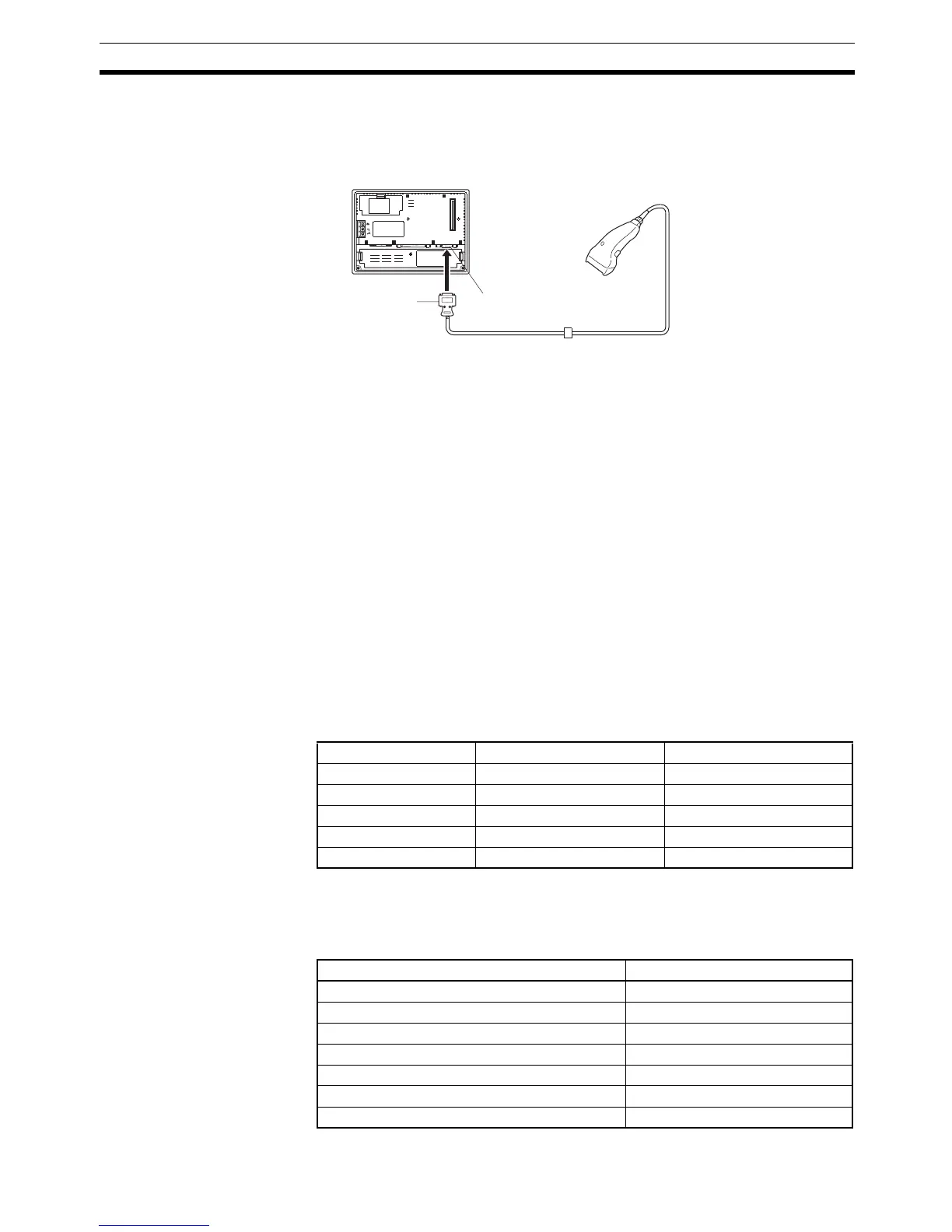

Connect the bar code reader to serial port A of the NT31/NT31C, as shown in
the figure below.
Bar code reader must match the communications setting (3-4-2 Setting a Bar
Code Reader, page 35) and data format (3-4-3 Data Format, page 36) in
order to connect to the NT31/NT31C. Please confirm the specification of the
bar code reader before using.
For details on making a connector cable, refer to Appendix G Making the
Cable for Connection to a Bar Code Reader.
Reference: The bar code reader must be connected to serial port A. This means that it can-
not be connected at the same time as the Support Tool. Note also that when a
bar code reader is used, the host must be connected at serial port B.
3-4-2 Setting a Bar Code Reader
After connecting a bar code reader, set the communications conditions and
other settings for it by selection from the system menu.
Settings at the NT31/
NT31C
At the NT31/NT31C, set the communications conditions for communications
with the bar code reader by using the memory switches, selecting from the
options indicated in the table below.
For more detailed information on the actual system menu operations, refer to
6-10 Setting the Bar Code Reader Input Function.
Settings at the Bar Code
Reader
Make the settings shown in the table below at the bar code reader. Make sure
that the communications speed, parity, stop bit, and data bit settings match
the communications settings made at the NT31/NT31C. For details on the set-
ting method, refer to the instruction manual for the bar code reader used.
NT31/NT31C
PRINTER PORT B PORT A
Bar code reader
9-pin connector
Connector cable Bar code reader cable
Serial port A
(RS-232C, 9-pin)
Item Possible Settings Default Setting
Data bits 7 or 8 bits 7 bits
Stop bit(s) 1 or 2 bits 2 bits
Parity None, odd, even Even
Communications speed 4800, 9600, 19200 bps 9600 bps
Input Method Manual, Auto Manual
Item Possible Settings
Communications speed 4800, 9600, 19200 bps
Parity EVEN, ODD, NONE
Stop bits 1 or 2 bits
Data bits 7 or 8 bits
Preamble STX
Postamble ETX
RS/CS control Available
